Advanced Waste Oil Distillation Plant for Sale

Waste oil distillation plant can refine waste oil into diesel, which is a better fuel oil and has a better market value. It mainly consists of control cabinet, heat transfer oil system, vertical reactor, vertical and horizontal condensers, oil tanks, water seal device, decolorization and deodorization tower, and so on. After years of research, Doing Group has developed a high quality advanced waste oil distillation plant, which has a high diesel conversion rate of about 90%, making it a very popular and highly profitable green project.

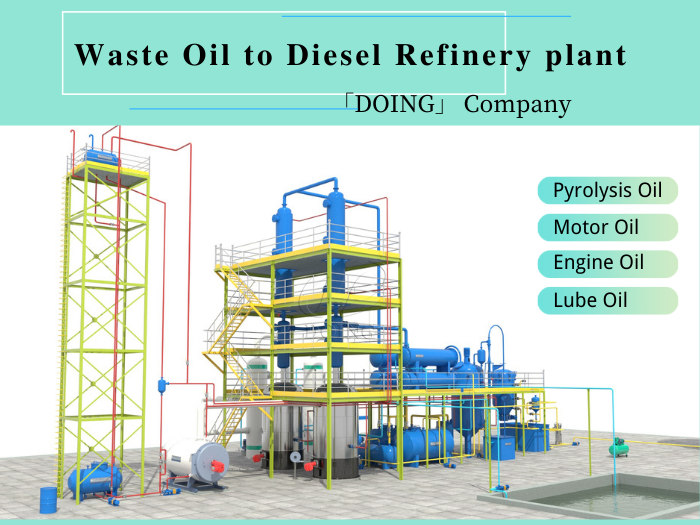

Doing advanced waste oil distillation plant

The work principle of Doing advanced waste oil distillation plant

Doing advanced waste oil distillation plant uses distillation technology, which is a process that uses selective boiling and condensation to separate the components or substances from a liquid mixture. Light diesel can be extracted from the waste oil mixture by distillation, which is a common method for separating and purifying waste oil in chemical plants.

Raw materials of Doing advanced waste oil distillation plant

1. Pyrolysis oil(crude oil) obtained from waste plastics, waste tires, waste rubber, etc.

2. Waste oil, such as waste engine oil, waste lubricating oil, waste oil residue, waste motor oil, waste diesel and so on.

Waste oil feedstocks for distillation plant

The work process of Doing advanced waste oil distillation plant

The workflow of Doing advanced waste oil distillation plant

First, introduce waste oil into the distillation reactor by a oil pump. And then fill the heat transfer oil with the whole heating system.

Then, the waste oil is heated internally with heat transfer oil and at the bottom with fuel such as coal, wood, gas, oil, etc. This double heating method can quickly heat the waste oil and shorten the operation time of the project.

Soon, the waste oil starts to boil and evaporate, the vapor then passes through the catalyst tower to remove impurities and the condensing tower to be condensed into a liquid, while some of the hydrocarbons with shorter lengths continue to exist as a gas.

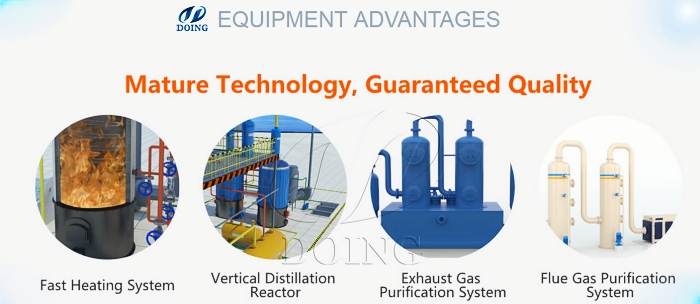

Waste oil distillation plant details

Then, the cooled liquid oil, i.e. diesel, is introduced into the oil tank. The non-condensable gas is used to assist in heating the distillation reactor.

Then, when the distillation process is finished, there is some residue in the reactor, i.e. asphalt. Because Doing advanced waste oil distillation plant uses a vertical reactor, the asphalt can be easily discharged.

Finally, the flue gas produced by heating reactor can be purified by the desulfurization and purification system to meet the standard of environmental requirements and be discharged into the air.

What's more, if you want to further purify this diesel fuel, you can add a deep purification system with an acid-base purification device and a pressure filtration system. The diesel fuel produced directly by the standard distillation system is brownish yellow in color. After further purification by the deep purification system, the diesel fuel obtained is light yellow in color.

The whole waste oil to diesel distillation process is more efficient, automatic and intelligent. When designing the waste oil recycling process, our engineers try their best to incorporate customer needs into it in order to help users achieve the best economic and environmental benefits.

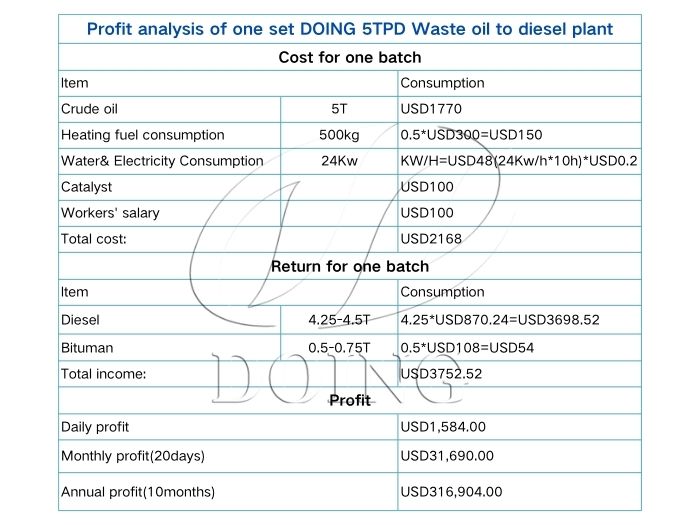

Waste oil to diesel recycling distillation plant profits

Technical parameters of Doing advanced waste oil distillation plant

The applications of final products

Through the advanced waste oil distillation plant, waste oil can be refined into diesel and asphalt, both of which can be used in different fields for different purposes.

1. Diesel

The diesel obtained from the advanced waste oil distillation plant can be directly used in heavy duty diesel engines, such as tractors, trucks, ships, boilers, etc. Of course, it can also be used as fuel.

The applications of diesel

2. Asphalt

The asphalt obtained from advanced waste oil distillation plant can be used to pave roads or make other construction materials.

Henan Doing is a professional manufacturer and supplier of advanced waste oil distillation plant, we can provide turnkey service including sales, installation, commissioning and after-sales, to satisfy you in all aspects. If you are interested in our machines, please contact us to get the latest quotation.
