modern techniques used tire cutting machine

Waste tire block cutting machine is utilized to process the rubber stripes into rubber blocks with a certain size, which is good for latter production and improving work efficiency. It is generally used along with bar cutter, and it is essential equipment for waste tires processing.

Features

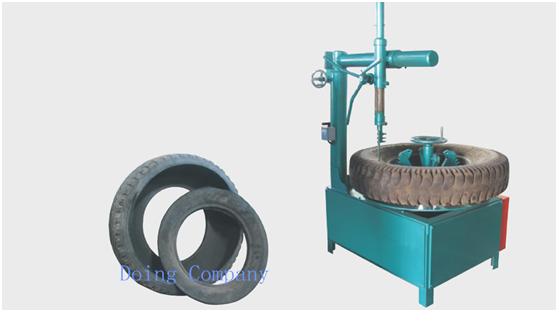

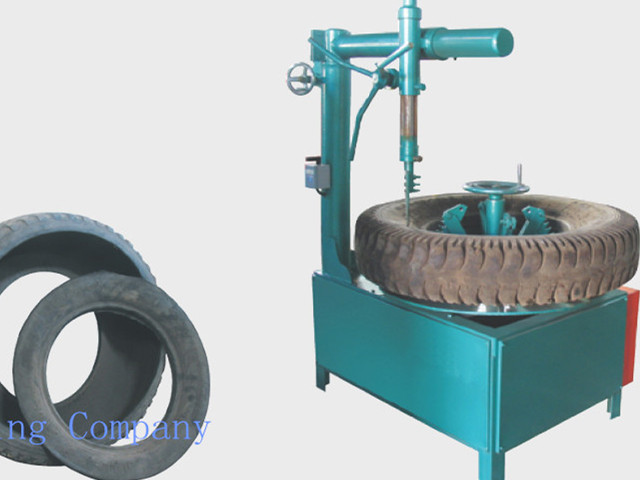

Circle rubber cutter

Application of circle  rubber cutter

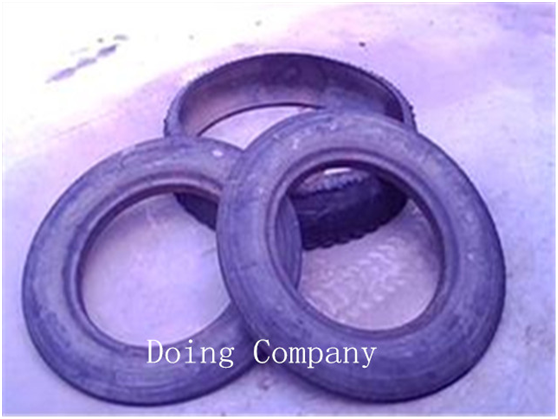

Circle cutting machine is used to separate the tire side from the whole tire. Now the steel wire from tire sides of vacuum tires is thick and hard to curve, so before feeding the waste tires into reactor, it is better to cut the tire sides down. Besides, this part of tire has good value, circle cutting machine helps collecting these thick steel wires.

Technical parameters of circle rubber cutter

Model

Production

Power

Size of Tires

Dimension

QKF850

    2.01ton/h

2.2KW

φ82~1200mm

1200*850*1405mm

Working principle of circle  rubber cutter

Place the waste tire on the round terrace; rotate the hand wheel so that thinner side of the tire can be locked by the four claws frame. Then turn on the power, the terrace will begin to rotate with the tire, and then make the cuttingknife cut into the tire according to the need until cut down the whole sidewall.

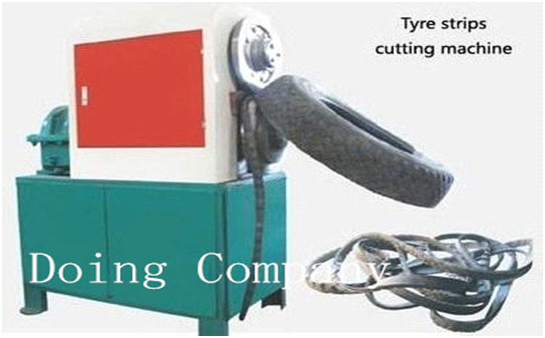

Rubber strip cutting machine

Application of rubber strip cutting machine

Rubber strip cutting is used with circle cutting machine and could cut the tires without tire sides into strips.

Technical parameters of rubber strip cutting machine


model

capacity

Power

Size of Tire

Dimension

QT380

1ton/h

4KW

≤φ1200mm

1330×700×1580mm

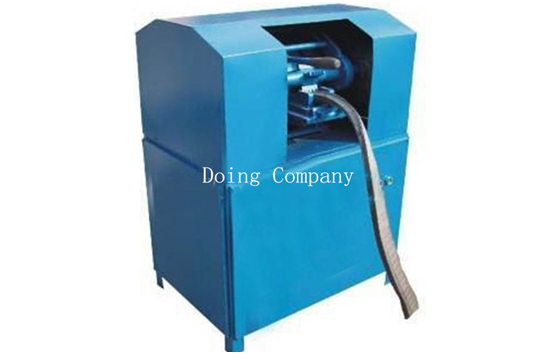

Block rubber cutter

Application of block  rubber cutter

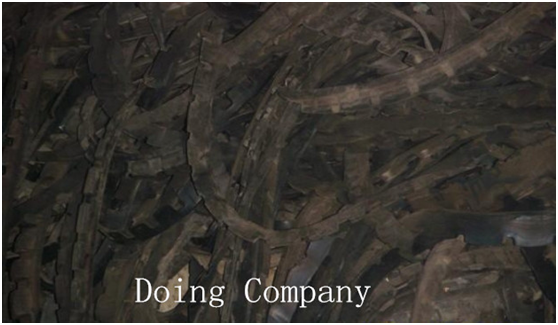

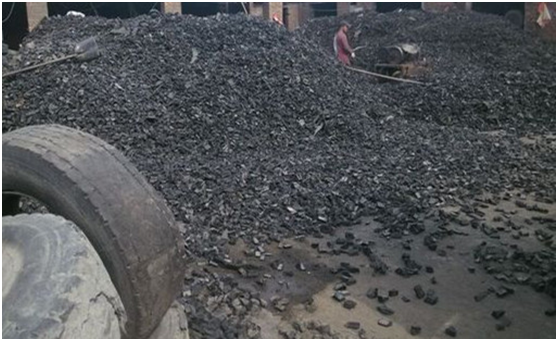

Waste tire block cutting machine is utilized to process the rubber stripes into rubber blocks with a certain size, which is good for latter production and improving work efficiency. It is generally used along with bar cutter, and it is essential equipment for waste tires processing.

Technical parameters of block rubber cutter

Model

Power

Weight

Size of Tire

Dimension

QK200

7.5KW

450KG

≤φ1200mm

800*810*1070mm

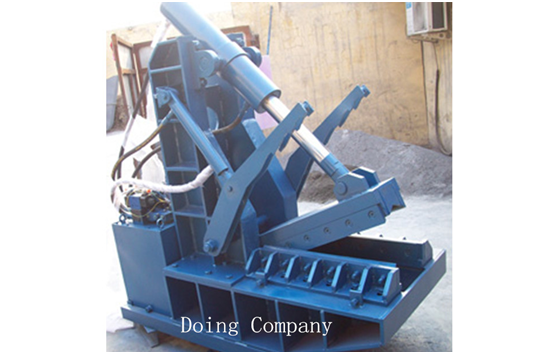

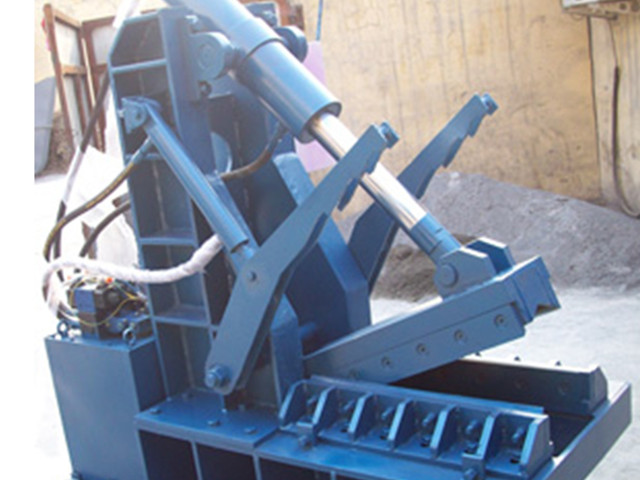

Hydraulic cutting machine

Application of hydraulic cutting machine

Hydraulic cutting machine is used to process the waste tires and cut the tires into pieces and meets the demands of clients who have big size tires.

Technical Parameters of hydraulic cutting machine

Model

Power

Weigh

Size of Tire

Dimension

QDY 700

5.5KW

1300

φ800~1200mm

1720*750*1880mm
