Features
Scrap aluminum separation recycling machine
Scrap aluminum separation recycling machine is the popular machine to recycling aluminum from waste ,such as aluminum composite panel,aluminum composite pipe ,aluminum plastic board ,waste medical blister,and others .it adopts an advanced technology that makes raw material to be the mixture of metal and plastic by crushing and pulverizing ,then separates metal from plastic by high voltage electrostatic separator .in this methods ,the metal separating rate is high ,and there is no pollution in the whole production line .
Scrap aluminum separation recycling machine feature
Scrap aluminum separation recycling machine feature
1.) Physical methods was adopted ,to separate metal from plastic .
2.) No any pollution ,do not need water or any chemical reagent .
3.) High efficiency ,low consumption ,saving power consumption than traditional methods.
4.) Small occupied area ,machine is flexible to layout .
5.) High voltage electrostatic separator was adopted ,the metal and plastic can be separated completely .

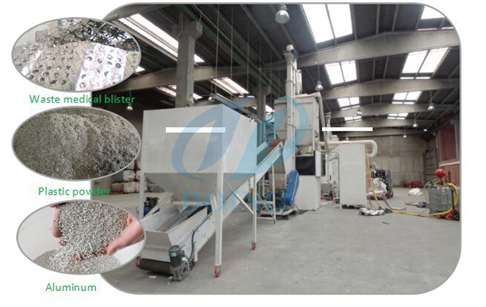

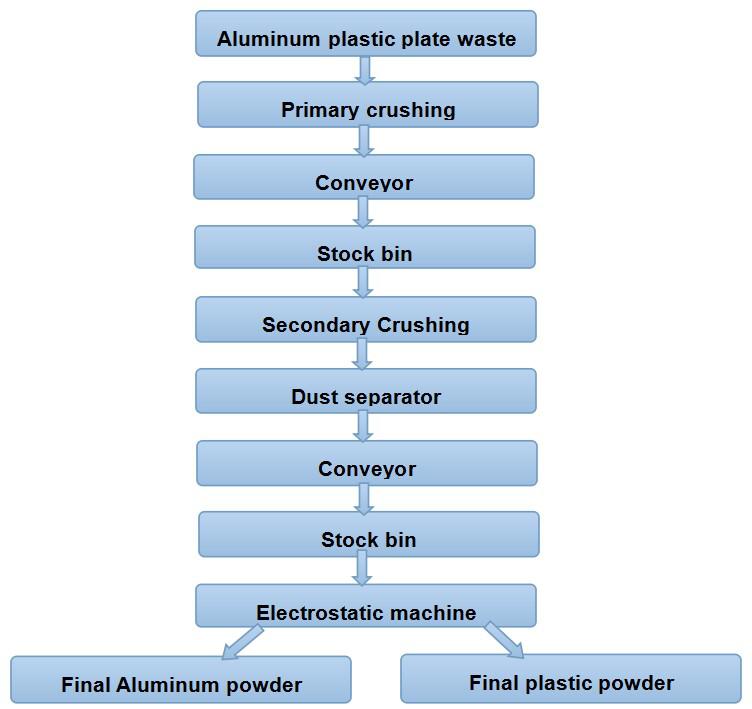

Srap aluminum separation recycling machine working process
Put the raw material into scrap aluminum separation recycling machine to crush the material into small pieces.
Then the screw conveyor delivers the pieces into All-in-one grinder to grind material into metal & plastic powder.
Then the bucket elevator delivers the powder mixture into electrostatic separator to separate the mixture powder into metal and plastic separately.
Scrap aluminum separation recycling machine working process
Technical Data
Technical data of scrap aluminum separation recycling machine
Aluminum recycling machine
|
Model |
Voltage |
Power |
Capacity |
Dimension |
Weight |
|
DYLS-400 |
380V |
22.45 kw |
150-200kg/H |
2700*1900*2300(mm) |
1200kg |
|
DYLS-600 |
380V |
36 kw |
300-400kg/H |
3500*1900*2700(mm) |
3000kg |
|
DYLS-800 |
380V |
75 kw |
500-600kg/H |
5500*4500*3300(mm) |
8000k |
Application
Srap aluminum separation recycling machine application
Scrap aluminum separation recycling machine is the popular machine to recycling aluminum and pcb from waste ,such as aluminum composite panel,aluminum composite pipe ,aluminum plastic board ,waste medical blister,and others .it adopts an advanced technology that makes raw material to be the mixture of aluminum and plastic by crushing and pulverizing ,then separates aluminumfrom plastic by high voltage electrostatic separator .in this methods ,the metal separating rate is high ,and there is no pollution in the whole production line .

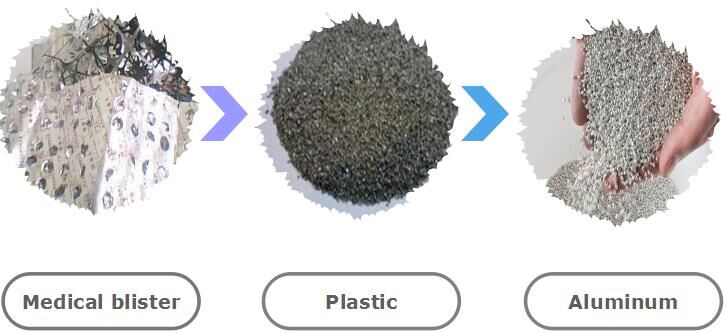

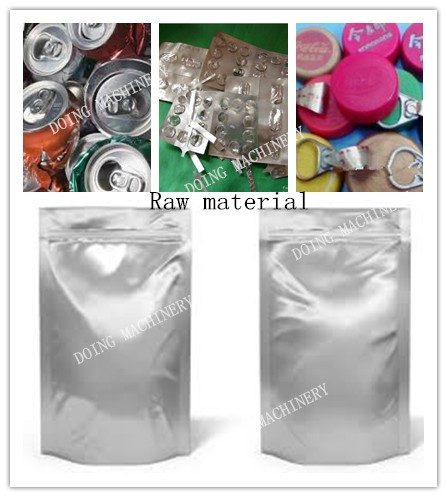

Srap aluminum separation recycling machine can deal with this raw material
