Copper wire granulator machine

Copper wire granulator machine of Doing is to separated waste copper wire to re cycle copper and plastic particles .The separator of the copper wire grnaulator machine is suitable for processing all kinds of cables. It can separate copper from plastic effectively by crushing, vibrating screening separation and vibration separation so as to achieve comprehensive utilization. It features good cost effectiveness, dust-free producing progress and second pollution-free property. ibrating screening separation and vibration separation so as to achieve comprehensive utilization. It features good cost effectiveness, dust-free producing progress and second pollution-free property.

Features

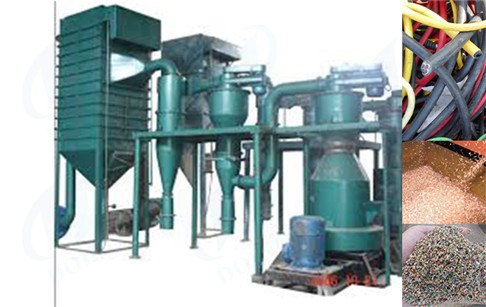

copper wire granulator machine

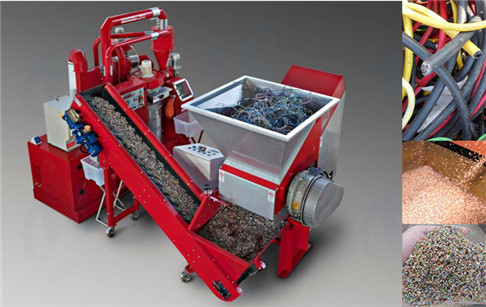

Copper wire granulator machine
Copper wire granulator machine of Doing is to separated  waste copper wire to re cycle copper and plastic particles .The separator of the copper wire grnaulator machine is suitable for processing all kinds of cables. It can separate copper from plastic effectively by crushing, vibrating screening separation and vibration separation so as to achieve comprehensive utilization. It features good cost effectiveness, dust-free producing progress and second pollution-free property.

Technical Data

Copper wire granulator machine tech data

Model   Voltage   Power   Capacity  Dimension     Weight
DYTM-400    380V     22.45 kw     150-200kg/H       2700*1900*2300(mm)    1200kg
DYTM-600  380V   36 kw  300-400kg/H  3500*1900*2700(mm)  3000kg
DYTM-800  380V   75 kw  500-600kg/H  5500*4500*3300(mm)  8000k

Application

Copper wire granulator machine working principle
Our copper wire granulator machine is mainly used to make the double recycling use of metals and plastics from scrap cables and wires.

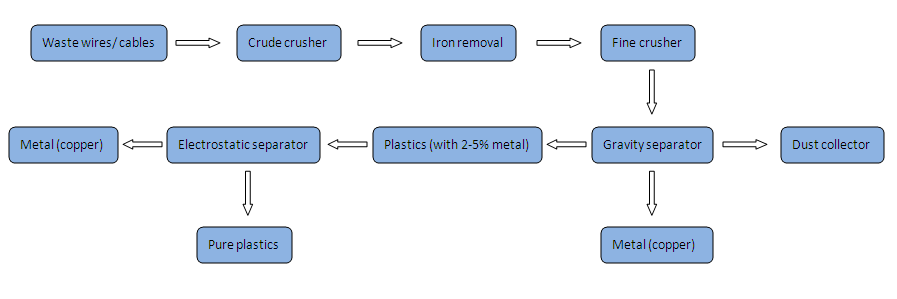

The general process is as below:

copper wire granulaotr machine

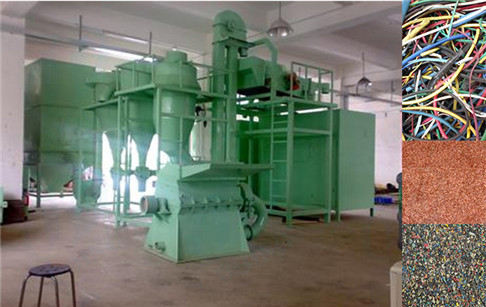

Copper wire granulator machine working process
