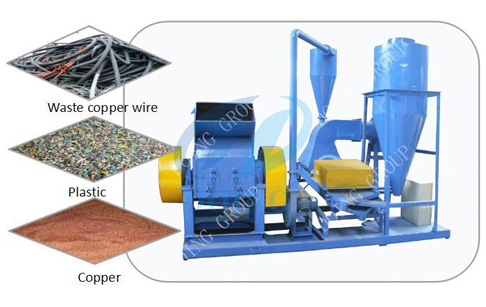

Scrap copper wire granulator separator

This copper wire granulator separator is designed to recycle copper wire and cable scraps, like automobile wires, tele-communication wires, and other kinds of cables, by chopping them and dry-separating copper granules from plastic or rubber.

Features

copper wire granulator
Scrap copper wire granulator separator


This copper wire granulator separator is designed to recycle copper wire and cable scraps, like automobile wires, tele-communication wires, and other kinds of cables, by chopping them and dry-separating copper granules from plastic or rubber.

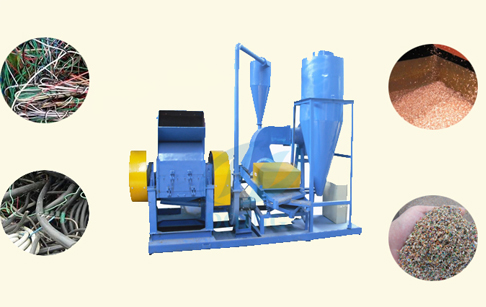

Scrap copper wire granulator separator

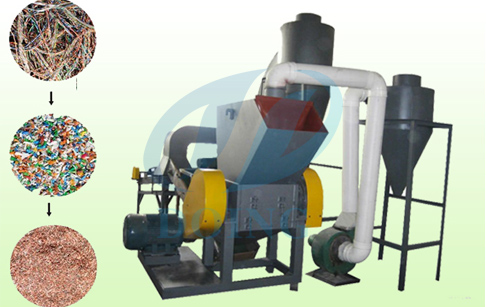

Copper wire granulator separator
Copper wire granulator separator
1. Compact structure, rational layout, convenient installation.

2. Adopt PLC to control, feeding uniform, intelligent operation, operation convenient,etc

3. Separation rate is as high as 98% above.

4. The semi-finished products through secondary crushing, guarantee the complete separation of metal and nonmetal.

Technical Data

Copper wire granulator separator technical data

Item Model Capacity(kg/h) Power(Kw) Size (m)(L*W*H) Weight(T) Remark
1 DY-400 100-200 28.5 3.5×1.5×3.0 1.8
2 DY-600 300-500 36.5 4.0×1.7×3.0 3.0
3 DY-800 500-800 90.0 4.5×1.5×4.2 7.7 Doubling crushing system
4 DY-1000 800-1000 104.2 4.8×1.8×4.2 9.4 Doubling crushing system




Application

Copper wire granulator separator application
Copper wire  separator
Copper wire granulator separator application

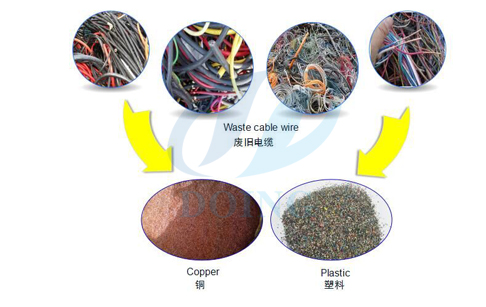

Scrap copper wire granulator separator is a kind of machinery used for recycling waste & scrap copper wire and cables, whose diameter should be below 25mm, Such as Auto electric wire, Motorcycle electric wire, Computer wire and other various miscellaneous material cables, communication cables, etc. The recycling rate can reach 99%, can get copper granule and PVC plastic in the end automatically.
