Pyrolysis Process 4: Pyrolysis Reactor Designs Introduction Video

The pyrolysis reactor stands as the foundational core of any effective waste-to-energy pyrolysis system, transforming various organic waste materials into valuable resources like pyrolysis oil, syngas, and carbon black. For 15 years, DOING Company has focused on robust and efficient reactor design ensures optimal performance, safety, and operational longevity. The following video presents a detailed overview of DOING’s pyrolysis reactor design:

1. Feed Inlet

The Feed Inlet serves as the critical entry point for raw materials into the pyrolysis reactor. Recognizing the diverse nature of feedstocks and varying production scales, DOING reactors feature a customizable feed inlet diameter. This adaptability, combined with options for integrated automatic feeding systems, facilitates a smooth and continuous material input, optimizing overall operational efficiency.

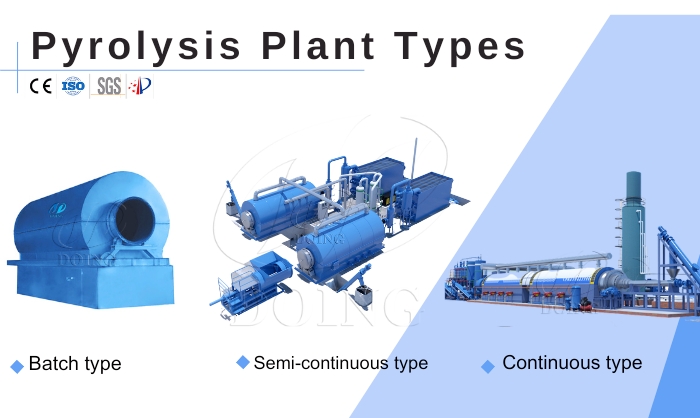

DOING Company pyrolysis reactor types

2. Pyrolysis Reactor Chamber

The Pyrolysis Reactor Chamber is the central vessel where the thermal decomposition process occurs. It comprises two primary sections:

Arc-shaped Head: Engineered for superior pressure resistance, our pyrolysis reactor heads are precision-formed in a single molding process. This design choice enhances structural integrity, ensuring the chamber remains robust under demanding operational pressures.

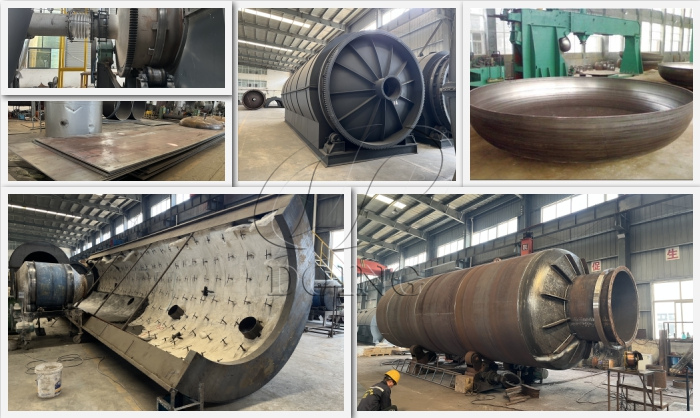

DOING pyrolysis reactor details display

Furnace Body: Constructed from high-grade Q245R/Q345R boiler steel or 304/316 stainless steel, with material thicknesses typically ranging from 14 to 22 millimeters, the furnace body is precision-welded for maximum durability. The internal configuration can be further adapted to specific feedstock requirements, incorporating specialized systems such as wax or coke removal mechanisms to refine the pyrolysis process.

Manufacturing details of DOING pyrolysis reactor

3. Heating Furnace

The heating method employed is tailored to the pyrolysis reactor's operational mode:

    Batch and Semi-continuous Reactors: These utilize a direct heating approach, where burners or a hot air furnace initiate the pyrolysis reaction.

    Fully Continuous Reactors: An indirect heating method is adopted to ensure prolonged service life and consistent temperature distribution.

Upon system startup, the designated heating source brings the pyrolysis reactor to its required temperature. Post-treatment, the generated syngas is efficiently recycled back to fuel the furnace, significantly reducing external energy consumption and minimizing emissions, thereby enhancing both energy efficiency and environmental responsibility.

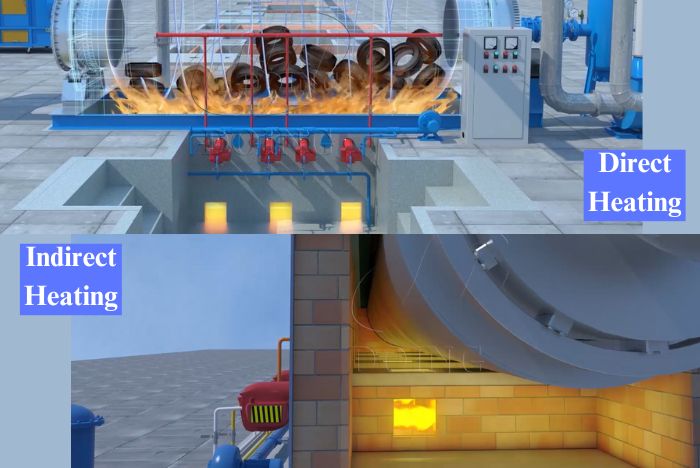

DOING waste to fuel pyrolysis reactor heating methods

4. Insulation Shell

Encasing the pyrolysis reactor is a multi-layered, full-wrap insulation shell, designed with a specialized sealed groove structure. This advanced insulation system is pivotal in maintaining optimal internal temperatures by minimizing heat loss. The result is reduced fuel consumption, enhanced operational safety by preventing heat leakage, and a more environmentally sound pyrolysis process.

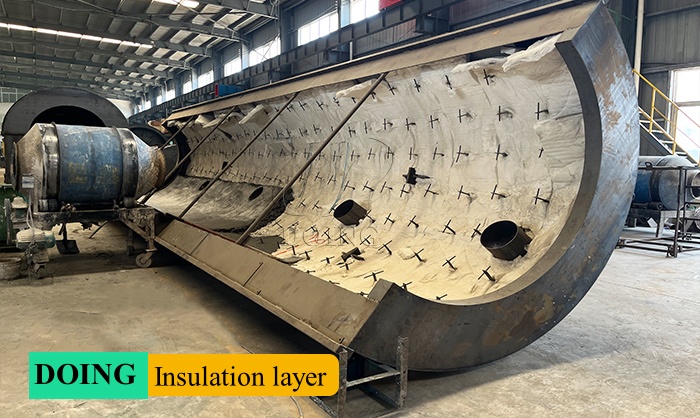

DOING pyrolysis reactor insulation layer

5. Drive System

Our robust drive system is essential for the stable and uniform operation of the pyrolysis reactor. Comprising optimized steel rails, drag wheels, and a precision reducer, this system ensures consistent rotation. This uniform movement is vital for achieving even heat distribution throughout the pyrolysis reactor's contents, contributing to process efficiency and the overall stability of the equipment, even under prolonged high-temperature conditions.

6. Slag Discharge Outlet

Effective removal of solid residue (char or ash) is crucial post-pyrolysis. DOING reactors offer versatile slag discharge configurations, including front, side, or rear outlets. This customization allows clients to select the optimal design that integrates seamlessly with their operational workflow and residue handling procedures.

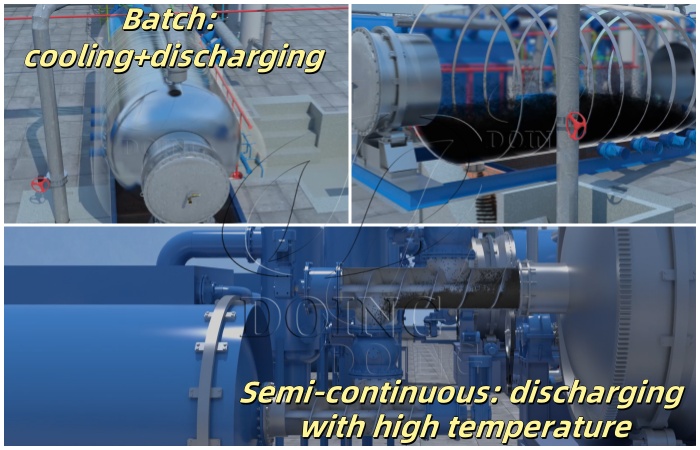

DOING pyrolysis reactor discharging methods

7. Reactor Cooling System

After the pyrolysis process concludes, rapid cooling of the batch pyrolysis reactor is necessary before material discharge. Our cooling system employs a dual-airflow design, featuring both intake and exhaust mechanisms. This efficient air circulation facilitates swift temperature reduction, significantly cutting down the downtime between batches for our batch pyrolysis reactors by as much as 50%.

In contrast, semi-continuous and fully continuous pyrolysis reactor allow for the high-temperature discharge of carbon black while the pyrolysis process is underway.

As seen in the video, the design of DOING pyrolysis reactors prioritizes practicality, operational safety, and cost-efficiency. Each component is meticulously engineered to perform synergistically, contributing to a reliable and effective waste to energy conversion system.

Please contact DOING if you would like to obtain detailed technical specifications for the pyrolysis reactor, discuss customized solutions tailored to your project requirements, or view more case studies and operational videos of DOING's pyrolysis projects.
