Waste plastics to diesel oil process machine

Waste plastics to diesel oil process machine include two different equipments, waste plastic to oil machine and waste oil to diesel plant. Under their action, waste plastics can be converted into diesel oil.

Waste plastics to diesel oil process machine include two different equipments, waste plastic to oil machine and waste oil to diesel plant. Under the action of these two plants, Waste plastics can be converted into diesel oil.

Waste plastic to fuel oil

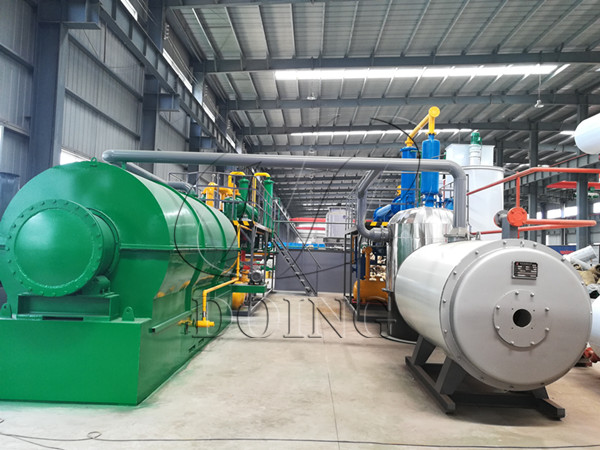

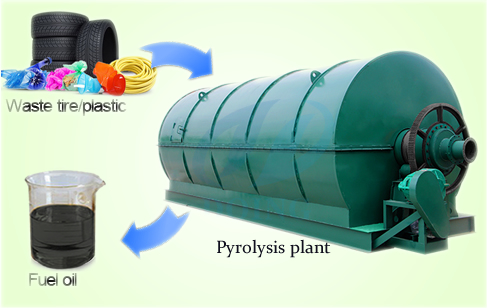

plastic to oil machineWaste plastic to oil machine

DOING waste plastic to oil machine adopts the revolutionary pyrolsis technology, converting plastics to ultra-clean and ultra-high heating value furnace oil, which can be used in brick/ glass/ cement/ steel factory and boiler as fuel material.

The principle of plastic pyrolysis technology

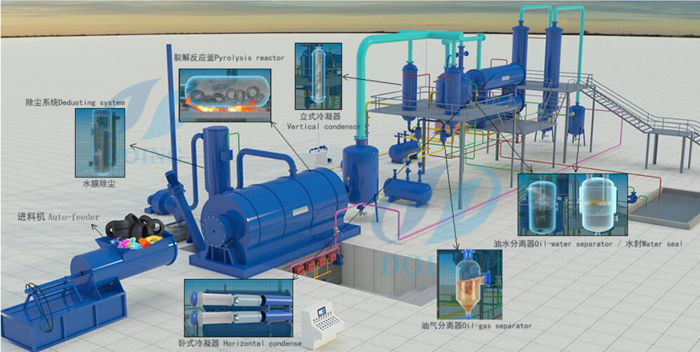

plastic to oil machinePlastic pyrolysis technology

Plastic pyrolysis is a thermo decomposition of plastic polymer, since waste plastics are long chain polymers containing more than 50,000 carbon atoms attached to each other in a cross linked or straight chain.During high temperature processing, this long chain( C-50,000 to C-2,00,000) is broken down into smaller chain (C-1 to C-4 & C-5 to C-23). Among which, C5-C23 is oil got from long chain plastic polymer.

Working process of waste plastic to oil machine

DOING waste plastic to oil machine is easy to operate, and meanwhile it is energy-saving, labor-saving and time-saving because of the application of automatic feeding and carbon discharging devices.

The whole working process can be described as follows:

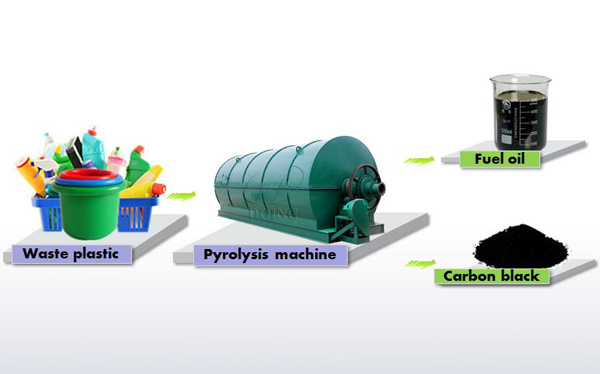

waste plastic to oil pyrolysis machineWaste plastic to oil machine working process

Open the feeding door ➩ Put waste plastic ➩ close the door ➩ start heating (heat the reactor by fuel material like coal, wood, natural gas or oil) ➩ collect oil (when the temperature reach around 150 degree , oil gas will come out, then go through the cooling system to liquid into oil) ➩ cooling reactor ➩ slagging(After oil finish coming out, wait a while for the reactor become cool, then take out carbon black). Then you can start a new batch.

General to say, it is a process of oil gas produced and then liquefied.



Fuel oil to diesel oil

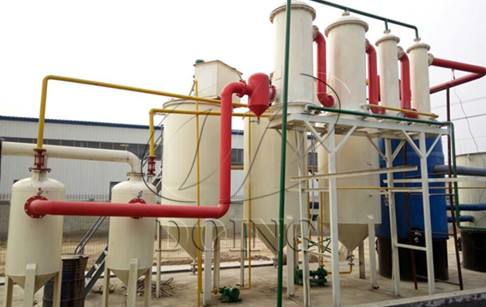

waste oil to diesel plantWaste oil to diesel plant

After furthering refined with DOING waste oil to diesel plant, the plastic fuel oil got from waste plastics is converted into diesel used for generators, trucks, vans, ships,etc.

The principle of waste oil to diesel plant

waste oil to diesel plant3D drawing of waste oil to diesel plant

Waste oil to diesel plant uses distillation technology. Distillation is a thermodynamic separation process, it uses groups of mixed liquid or liquid solid in different boiling point, low boiling components evaporation, condensation and separation in unit operation in the process of the whole composition, is a combination of evaporation and condensation of two unit operation.

Working process of waste oil to diesel plant

The whole working process can be described as follows:

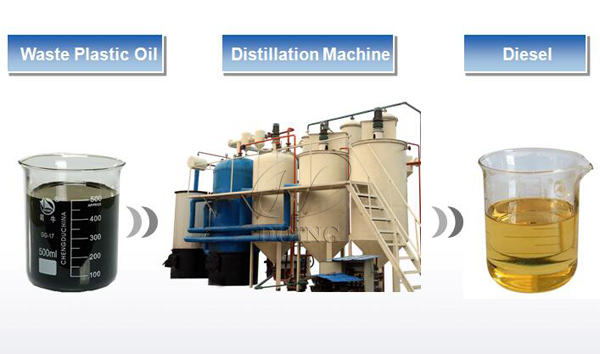

plastic pyrolysis plantWaste oil to diesel plant working process

Pump waste plastic oil into reactor➩ close the reactor door ➩ start heating (indirect heating system makes the distillation fast and efficient and prolong the service life of reactor, the heating material can be wood, natural gas or oil) ➩ collect oil (when the temperature reach around 150 degree , oil gas will come out, then go through the cooling system to liquid into distillation oil) ➩ odor and color removal process ➩ get good quality distillation oil ➩slagging ( the residue can be discharged easily without waiting the reactor cool down ). Then you can start a new batch because the reactor still keep temperature, so you can saving heating energy.

General to say, it is a process of waste plastic distillation oil gas produced and then liquefied into the diesel.



Technical parameter of waste plastics to diesel oil process machine

Technical parameter of waste plastic  to oil machine

No. Items Contents
1 Equipment type DY-1-6 DY-1-8 DY-1-10
2 Raw material Waste plastic Waste plastic Waste plastic
3 Structural form Horizontal rotation Horizontal rotation Horizontal rotation
4 24-hour Capacity 6 ton 8 ton 10 ton
5 Oil yield 2.7-3.3ton 3.6 -4.4ton 4.5 -5.5ton
6 Operating pressure Normal Normal Normal
7 Material of pyrolysis Reactor Q245R Q245R Q245R
8 Thickness of pyrolysis Reactor 16mm 16mm 16mm
9 Rotate speed of pyrolysis Reactor 0.4turn/minute 0.4turn/minute 0.4turn/minute
10 Total power 19KW 19KW 19KW
11 Mode of cooling Water cooling Water cooling Water cooling
12 Cooling area of condenser 100sqm 100sqm 100sqm
13 Kind of transmission Internal gear drive Internal gear drive Internal gear drive
14 Noise dB(A) ≤85 ≤85 ≤85
15 Size of Reactor(D×L) 2200×6000 2200×6600 2600×6600
16 Working form Intermittent operation Intermittent operation Intermittent operation
17 Delivery time 20days 20days 20days
18 Weight 27T 30T 35T



Technical parameter of  waste oil to diesel plant
Items Contents
Model DY-5t, DY-10t, DY-20t, DY-50t…
Raw material rubber oil, waste tire crude oil, plastic crude oil
Structure form Vertical (easy cleaning and maintenance)
Heating method Indirect heating to prolong the machine service life
Operating pressure Constant pressure
Heating material Coal, charcoal, fuel gas, fuel oil
Average out-put oil rate 95%
Material of reactor 4 reactor with different material
Thickness of reactor 18mm
Mode of cooling Recycled water cooling
Power in total 20 Kw
Service life average 7 years
Land area 180㎡



Diesel oil application

waste plastics to diesel oil process machineDiesel application

The final diesel produced by waste plastics to diesel oil process machine can fetch a good price on the market and it is usually be used for tractors, trucks, ships and diesel oil generators etc.
