Waste plastic and waste tyre pyrolysis plant

Waste plastic and waste tyre pyrolysis plant is an industry that converts waste plastic & tires & rubber and other waste materials into Pyrolysis Oil, Carbon Black & Hydrocarbon Gas. The Waste plastic and waste tyre pyrolysis plant can reduce the volumes of the waste products and help human protect the environment.

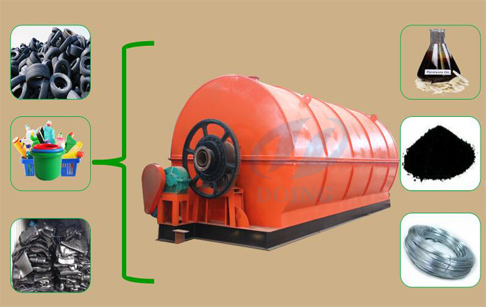

plastic&tyre to pyrolysis oil plant
Waste plastic and waste tyre pyrolysis plant


What is pyrolysis:

Pyro = heat. Lysis = break down.
Pyrolysis is chemical reaction. This reaction involves molecular breakdown of larger molecules into smaller molecules in presence of heat. Pyrolysis is also known as thermal cracking, cracking, thermolysis, depolymerization, etc.

Tyre/plastic pyrolysis is: the process of converting waste tyres/plastic into industrial fuels like tyre/plastic pyrolysis Oil, Carbon Black, Steel Wire and Hydrocarbon Gas.

Waste plastic and waste tyre pyrolysis plant is an industry that converts waste plastic & tires & rubber and other waste materials into Pyrolysis Oil, Carbon Black & Hydrocarbon Gas. The Waste plastic and waste tyre pyrolysis plant can reduce the volumes of the waste products and help human protect the environment.

The main advatage of waste plastic and waste tyre pyrolysis plant is zero emission ,high efficiency .Waste plastic and waste tyre pyrolysis plant not only can solve the problem of waste tyre pollution ,but also can bring substantial benefits for you.
Waste plastic and waste tyre pyrolysis plant can process raw material

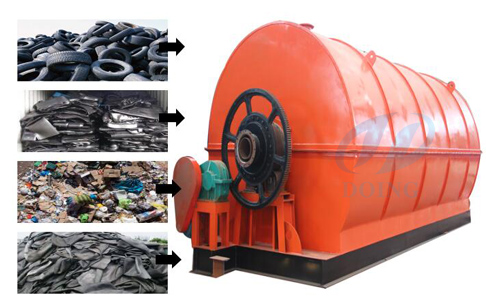

tyre pyrolysis plant
Waste plastic and waste tyre pyrolysis plant can process raw material
1.Waste tire/tyre
2.Waste plastic
3.Wast rubber


Working process of waste plastic and waste tyre pyrolysis plant

Plastic &tyre to pyrolysis oil plant
Working process of waste plastic and waste tyre pyrolysis plant

In the waste tyre pyrolysis process, the waste plastic/ tyres will firstly be put into the reactor.

 Secondly, burn the fuel material (coal, wood, oil or natural gas) in the combustion system. The reactor will slowly heat, when the temperature reach around 120℃, it will produce oil gas.

Thirdly, oil gas will be processed and then go to cooling system to cold liquid oil. The gas which can not be liquid under normal pressure will go back to combustion system to replace the fuel material to burn the reactor.

 Fourthly, after finished oil production, the temperature of reactor will be down and the carbon black will be discharged automatically. When the temperature fall to 100℃, workers could open the door of the reactor to discharge the rest steel wire.

Lastly, the released gas can achieve national emission standard through the dedusting system。
After the whole pyrolysis process of plastic/tyres is completed, the final products such as tyre/plastic pyrolysis oil, carbon black and steel wire can be sold directly or further processed into new products. Anyway, you will benefit a lot from them.


Waste plastic and waste tyre pyrolysis plant advandage
pyrolysis plant

                                                  Waste plastic and waste tyre pyrolysis plant advandage

Firstly, it can protect the environment. It is equipped with the supporting facilities to make sure that the plant will not do harm to the environment.

Secondly, the emission can reach the national standard, because there is almost no pollution produced during the working process.

Thirdly, the quality of the tyre/plastic oil pyrolysis oil is high. The oil can be directly used as fuel, or you can reprocess it into diesel if you have the need.

Fourthly, the design of the plant is advanced. The designer takes many factors into consideration, and the plant is safe and easy to operate, because of the high degree of automatization and safety.

Last, it can also deal with the waste plastic, rubber, oil sludge and so on.

Although the plant is great, there are still many people failed when using the plant to get fuel oil.

Waste plastic and waste tyre pyrolysis plant profit analysis


plastic pyrolysis plant

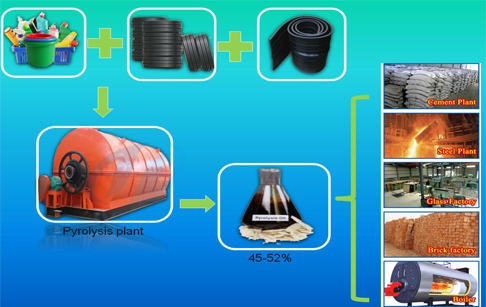

Fuel oil from waste plastic and waste tyre pyrolysis plant



  Profit analysis from Mexico cutomer(10 tons capatity)
Cost for one batch
NO. Item Cost of each batch
1 10 tons of waste tire 10T*USD 42.5/t=USD 425
2 0.4 tons of coal 0.4T*USD 70/t=USD 28
3 Electricty and water 244 kwh*USD0.26=USD 63.44
4 Workers 4*USD 15=USD 60
5 Total cost USD 576.44
Income for one batch
1 Crude oil 4.5T*USD960=USD 4320
2 Steel wire 10T*15%*USD350/T=USD 525
3 Carbon black 3T*USD 20/T=USD 60
  Total income USD 4905
Profit
1 Daily profit USD 4328.56
2 Month profit 4328.56*25 days=USD 108214
3 Annual profit USD 108214*10 months=USD 1082140

Waste plastic and waste tyre pyrolysis plantt technical data

Technical parameter of Waste plastic and waste tyre pyrolysis plant
No. Items Contents
1 Equipment type DY-1-6 DY-1-8 DY-1-10
2 Raw material Waste tyre,waste plastic Waste tyre,waste plastic Waste tyre,waste plastic
3 Structural form Horizontal rotation Horizontal rotation Horizontal rotation
4 24-hour Capacity 6 ton 8 ton 10 ton
5 Oil yield 2.7-3.3ton 3.6 -4.4ton 4.5 -5.5ton
6 Operating pressure Normal Normal Normal
7 Material of pyrolysis Reactor Q245R Q245R Q245R
8 Thickness of pyrolysis Reactor 16mm 16mm 16mm
9 Rotate speed of pyrolysis Reactor 0.4turn/minute 0.4turn/minute 0.4turn/minute
10 Total power 19KW 19KW 19KW
11 Mode of cooling Water cooling Water cooling Water cooling
12 Cooling area of condenser 100sqm 100sqm 100sqm
13 Kind of transmission Internal gear drive Internal gear drive Internal gear drive
14 Noise dB(A) ≤85 ≤85 ≤85
15 Size of Reactor(D×L) 2200×6000 2200×6600 2600×6600
16 Working form Intermittent operation Intermittent operation Intermittent operation
17 Delivery time 20days 20days 20days
18 Weight 27T 30T 35T

Prepared by customer about Waste plastic and waste tyre pyrolysis plant
No. Item Consumption
1 Coal(for choice) 500kg/day
2 Wood(for choice) 800kg/day
3 Natural gas(for choice) 100-150kg/day
4 Oil(for choice) 300-350kg/day
5 Electricity 244kwh/day
6 Water(recycled) 60㎥ /month
7 Total power 19kw
8 Land area 35m*15m


Waste plastic and waste tyre pyrolysis plant final product application
pyrolysis plant
Fuel oil application

1. Fuel oil (45%-50%): Oil from waste plastic and waste tyre pyrolysis plant can be used as industrial fuel for burning.
tyre pyrolysis plant
                                                      Carbon black application
2. Carbon black (30%): First, Carbon black from Waste plastic and waste tyre pyrolysis plant is carbon black. You can sell it to the brick factory as internal combustion or to the factory which need it as raw materials, such as shoe, tire, cable and sealant companies. Second, could make further process, make carbon black powder into carbon black briquette, and use it for burning.
3. Steel wire (10-15%): It can be sold to the iron and steel company directly.
4. Waste gas (5%): we have a special design could recycling it into fire furnace for burning.
