Waste Oil Distillation Plant

Crude oil to diesel refining process plant

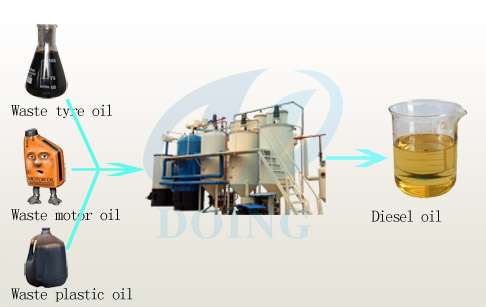

The refining process of crude oil is more and more necessary for our earth because of environment pollution. The crude oil to diesel refining process can convert crude oil into diesel, and the diesel through distillation has higher value and more expensive price.

 diesel crude oil
Crude oil to diesel refining process plant

The refining process of crude oil is more and more necessary for our earth because of environment pollution. The crude oil to diesel refining process can convert crude oil into diesel, and the diesel through distillation has higher value and more expensive price.

make diesel from crude oil

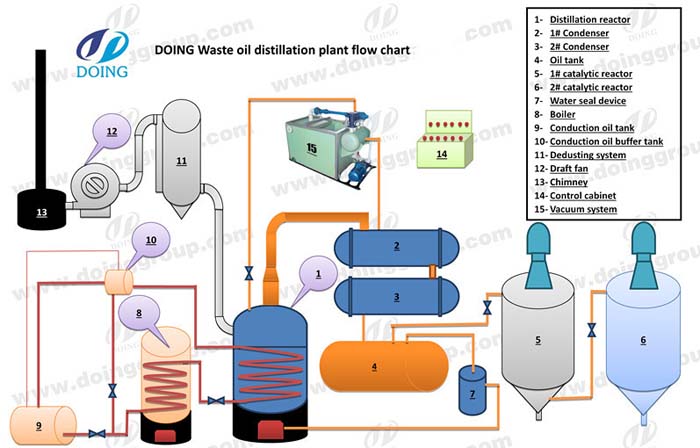

Crude oil to diesel refining process plant working process

About the Crude oil to diesel refining process  plant, it is equipped with latest tubular heating system, which enables material oil get heated while flowing. There is also advanced preprocess tank removing impurities and water firstly before hot oil get into distillation reactor. In the distillation process of crude oil, when heating the reactor, you can use oil, LPG, nature gas, wood and coal as heating material. Generally, 1 ton raw material oil needs 30-40 KG coal as fuel. The average oil output rate can reach 80%-90% (relies on different material oil).

The Crude oil to diesel refining process plant has two biggest advantages:

crude oil processing
Crude oil to diesel refining process plant

Environmental protection

1. In the dedusting system, three steps are used to dedust the hot smoke from reactor, which ensures the released gas is pollution-free2. The exhaust gas will be directly recycled for heating reactor, no gas pollution3. All parts are well-sealed, so air leakage can be avoided.

Safety

1. Hydroseal and Vacuum system will prevent exhaust gas from going back to condensers and reactor.

2. Equipped with thermometer, pressure gauge, safety valve and electric control system.







Technical data of crude oil to diesel refining process plant

Technical parameter of  crude oil to diesel refining process plant
Items Contents
Model DY-5t, DY-10t, DY-20t, DY-50t…
Raw material rubber oil, waste tire crude oil, plastic crude oil
Structure form Vertical (easy cleaning and maintenance)
Heating method Indirect heating to prolong the machine service life
Operating pressure Constant pressure
Heating material Coal, charcoal, fuel gas, fuel oil
Average out-put oil rate 95%
Material of reactor 4 reactor with different material
Thickness of reactor 18mm
Mode of cooling Recycled water cooling
Power in total 20 Kw
Service life average 7 years
Land area 180㎡

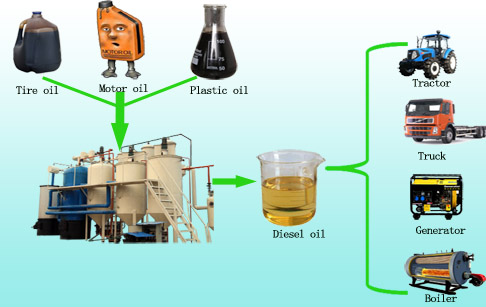

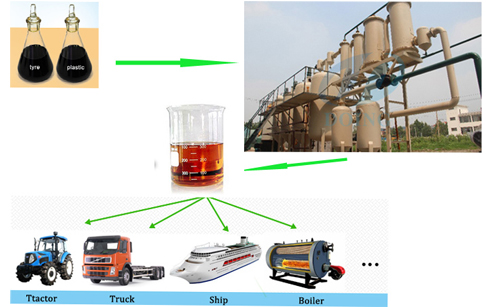

DOING crude oil to diesel refining process plant can purify waste tire oil, plastic oil, waste engine oil, the final diesel can be used for tractors, trucks, and diesel oil generators, ships etc

.

Diesel application
