Waste Oil Distillation Plant

Waste oil disposal plant

Disposing of used oil the wrong way has the potential to pollute land, water and infrastructure, so we need to recover and recycle as much of it as possible. Consider that it takes only one litre of oil to contaminate one million litres of water and a single automotive oil change produces 4 to 5 litres of used oil. Although it gets dirty, used oil can still be cleaned and re-used.

waste oil disposal
Waste oil
Cars, trucks, farm machines and boats all need regular lubricating oil changes.

Disposing of used oil the wrong way has the potential to pollute land, water and infrastructure, so we need to recover and recycle as much of it as possible. Consider that it takes only one litre of oil to contaminate one million litres of water and a single automotive oil change produces 4 to 5 litres of used oil.
Although it gets dirty, used oil can still be cleaned and re-used. In fact, recycled used oil can be used as an industrial burner fuel,
hydraulic oil, incorporated into other products or re-refined back into new lubricating oil.
oil waste disposal
Waste oil disposal plant
Waste oil disposal plant  means can purify the dirty waste oil.  Waste oil disposal plant can refining waste tyre oil,plastic oil,black oil,waste engine oil, motor oil etc.

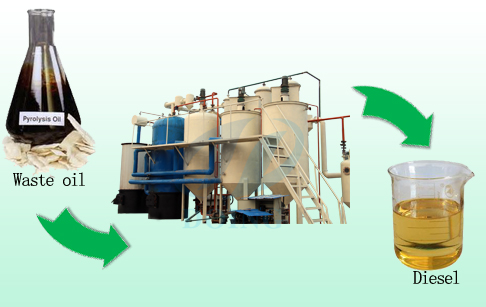

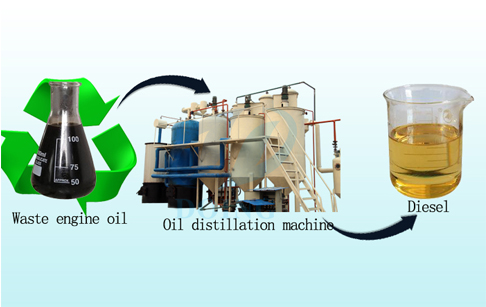

Waste oil disposal plant working process
disposal of waste oil
Waste oil disposal plant working process



1.    Prepare waste crude oil
2.    Heating for distillation
3.    Cooling
4.    Chemical process for cleaning the distillation oil
5.    Collect final diesel product

Waste oil disposal plant advantage
disposal of oil waste
Waste oil disposal plant waste installed in Mexico
1: To minimize the process of heating
By using the heat transfer heating system, our client can save much fuel to heat the whole reactor, and the heating speed is faster and the temperature can keep the reactor hot for longer time,so the whole process is faster with less fuel

2: The heating circulation system is more environmental
All the heat transfer system is a circulating system, the heat transfer oil is recycling inside the reactor. So in total, you can fire less fuel, which not only save your cost on fuel also it is more environmental-friendly. All the system is sealed, in the terms of smoke and smell, our new design Used oil refining plant workers better.

3:The vertical reactor
 From our design,It is very easy to clean the slag , it will be down through the bottom of the vertical reactors. So the operation is easier

4: Continuously working
When operating the machine,first you pump oil inside the reactor to heat,after finishing heating,it will becoming oil gas  and goes to cooling system,then go to another tank.So,the first reactor is empty,no need to stop,you could pump another tank of oil again into the first tank ,continuously working.



Waste oil disposal plant technical data

Technical parameter of Waste oil disposal plant
Items Contents
Model DY-5t, DY-10t, DY-20t, DY-50t…
Raw material motor oil, waste tire crude oil, plastic crude oil
Structure form Vertical (easy cleaning and maintenance)
Heating method Indirect heating to prolong the machine service life
Operating pressure Constant pressure
Heating material Coal, charcoal, fuel gas, fuel oil
Average out-put oil rate 95%
Material of reactor 4 reactor with different material
Thickness of reactor 18mm
Mode of cooling Recycled water cooling
Power in total 20 Kw
Service life average 7 years
Land area 180㎡

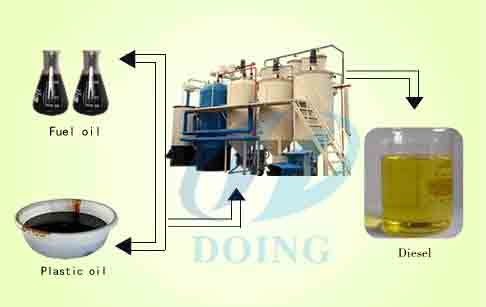

Waste oil disposal plant  final product and application

Waste oil disposal plant  can used for tractors ,trucks,ships and generator :
tyre oil refining machine
Diesel application
