Waste Tire Pyrolysis Plant

New product pyrolysis of plastic to oil process machine

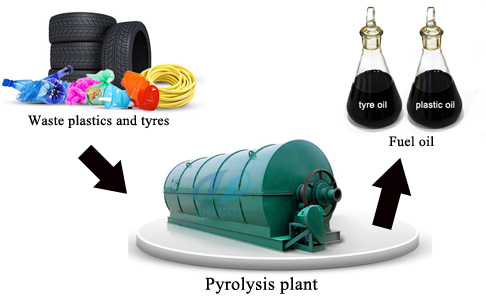

Pyrolysis of plastic to oil process machineis an environmental protection system which uses the continuous liquefaction technology and catalytic breakdown reaction to convert waste plastics into renewable resources, such as pyrolysis oil, carbon black, combustible gas and so on. The end products can be applied to diesel engines and generators directly, or come into high ranking diesel and gasoline through our oil refining plant. Other names of plastic pyrolysis plant: waste plastic pyrolysis machine, plastic to oil machine/plant, waste plastic to fuel conversion plant, plastic2oil plant and so on.

plastic to oil machine
Plastic to oil
Plastic products has been used widely, and waste plastic can be seen everywhere. It has seriously affected our environment on two aspects, such as visual pollution and potential hazards. Visual pollution means that aesthetic perception on living city affected by scrap plastic in everywhere. Potential hazards mainly refers to degradation-resistant of waste plastic affecting on absorbing of nutrients and water by crop, reducing the production; and otherwise, animals will be die if eats it unconscious. Recycling and utilization of waste plastic is increasingly becoming an important aspect for environmental protection.
plastic process machine
 Pyrolysis of plastic to oil process machine

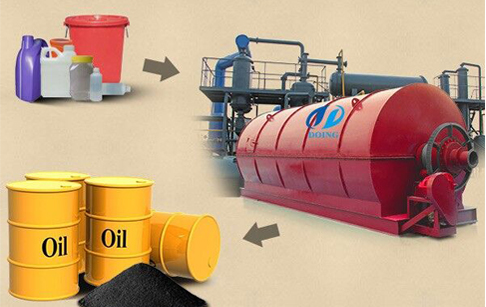

Pyrolysis of plastic to oil process machineis an environmental protection system which uses the continuous liquefaction technology and catalytic breakdown reaction to convert waste plastics into renewable resources, such as pyrolysis oil, carbon black, combustible gas and so on. The end products can be applied to diesel engines and generators directly, or come into high ranking diesel and gasoline through our oil refining plant. Other names of plastic pyrolysis plant: waste plastic pyrolysis machine, plastic to oil machine/plant, waste plastic to fuel conversion plant, plastic2oil plant and so on.

New product pyrolysis of plastic to oil process machine  features
pyrolysis plastic machine
 Pyrolysis of plastic to oil process machine

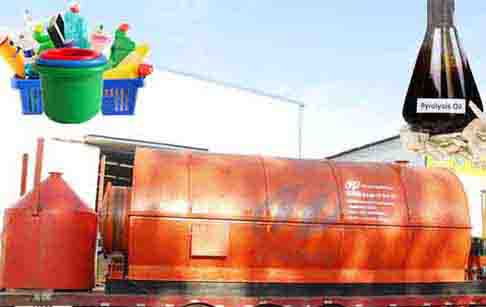

Our  pyrolysis of plastic to oil process machine can convert waste plastic into high grade diesel fuel. Waste plastic  are long chain polymers containing more than 50000 carbon atoms attached to each other in a cross linked or straight chain.During waste plastic pyrolysis, this long chain is broken down into smaller chain. The waste plastic  pyrolysis machine turns waste materials into gases and liquids. The end products can be used in any standard diesel engine or generator with little or no modifications.


 Pyrolysis of plastic to oil process machine technical data


Technical datar of  Pyrolysis of plastic to oil process machine
No. Items Contents
1 Equipment type DY-1-6 DY-1-8 DY-1-10
2 Raw material Waste plastic Waste plastic Waste plastic
3 Structural form Horizontal rotation Horizontal rotation Horizontal rotation
4 24-hour Capacity 6 ton 8 ton 10 ton
5 Oil yield 2.7-3.3ton 3.6 -4.4ton 4.5 -5.5ton
6 Operating pressure Normal Normal Normal
7 Material of pyrolysis Reactor Q245R Q245R Q245R
8 Thickness of pyrolysis Reactor 16mm 16mm 16mm
9 Rotate speed of pyrolysis Reactor 0.4turn/minute 0.4turn/minute 0.4turn/minute
10 Total power 19KW 19KW 19KW
11 Mode of cooling Water cooling Water cooling Water cooling
12 Cooling area of condenser 100sqm 100sqm 100sqm
13 Kind of transmission Internal gear drive Internal gear drive Internal gear drive
14 Noise dB(A) ≤85 ≤85 ≤85
15 Size of Reactor(D×L) 2200×6000 2200×6600 2600×6600
16 Working form Intermittent operation Intermittent operation Intermittent operation
17 Delivery time 20days 20days 20days
18 Weight 27T 30T 35T

Prepared by customer about  Pyrolysis of plastic to oil process machine
No. Item Consumption
1 Coal(for choice) 500kg/day
2 Wood(for choice) 800kg/day
3 Natural gas(for choice) 100-150kg/day
4 Oil(for choice) 300-350kg/day
5 Electricity 244kwh/day
6 Water(recycled) 60㎥ /month
7 Total power 19kw
8 Land area 35m*15m



 New product pyrolysis of plastic to oil process machine  final product application


1. Crude oil (45%-50%): Oil from this machine can be used as industrial fuel for burning.
pyrolysis plastic machine
Fuel oil application


2. Carbon black (30%): First, Carbon black from this machine is crude oil . You can sell it to the brick factory as internal combustion or to the factory which need it as raw materials, such as shoe, tire, cable and sealant companies. Second, could make further process, make carbon black powder into carbon black briquette, and use it for burning.
pyrolysis of plastic to oil
Carbon black application
3. Waste gas (5%): we have a special design could recycling it into fire furnace for burning.
