New product waste rubber recycling machine

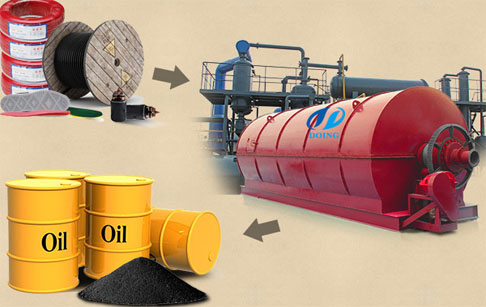

Doing pyrolysis of waste rubber is a new green technology to recycle waste rubber and Doing have applied this technology in waste rubber recycling machine. By using the waste rubber recycling machine, finally you can get these pyrolysis products, such as fuel oil, carbon black and some combustible gas, all of which have a wide range of applications.

12-29-2016 09:48:32

+86-135-2669-2320

oilmachine@wastetireoil.com

Send Message Chat online

Features
Technical Data
Application

Waste rubber

On one hand, with the moderation of the society, rubber industry is developing at a rapid speed, rubber products are widely used in many field of life, on the other hand, the pollutant of rubber, increasing for its difficulty in decomposing, which was called “Black Contamination”, has became a big threat to the environment and get increasingly serious. Compared to the developed countries, we are still lack of experiences in treating the pollution the capital and market are also big problems.

Waste rubber recycling machine

Waste rubber recycling machine working process

First step, make the reactor rotate clockwise 0.4 per minute, put raw materials into reactor automatically, close the feeding door tightly.Second step, burn the fuel materials (like coal, wood, natural gas, oil etc) in the furnace. The reactor will be heated slowly. When the temperature reaches nearly 180℃, the oil gas will come out and then go to the cooling system and liquefying to oil. Some incondensable gas which can’t cool down will flow to furnace through a pipe which can be used to heat the reactor.
In this way, you can save much more energy as you use energy for heating only in the first 2 hours. After the first 2 hours, the main fuel is gas. After pyrolysis, all the oil gas will come out from reactor, the temperature will fall down. Then make the rotate anticlockwise, carbon black discharging begins. Last step, when the temperature falls to 100℃, worker can open the reactor door .
Main Feature of waste rubber recycling machine:

3D picture of waste rubber recycling machine

1. 100% waste rubber recycling.
2. Environmental friendly: No chemical ingredients are used during processing. No soil, water and air pollution is observed during and after the process.
3. Generates lots of valuable products out of waste, all of the outlet products can be used as industrial raw materials with high value.
4. Apply the most advantage waste rubber recycling technology in the world.
5. The system creates an alternative source of energy to replace petroleum products and natural gas.
6. We supply plants with capacities of 5 ton /day to 10 ton/day.

Features
Technical Data
Application

Technical parameter of waste rubber recycling machine
No.	Items	Contents
1	Equipment type	DY-1-6	DY-1-8	DY-1-10
2	Raw material	Waste rubber	Waste rubber	Waste rubber
3	Structural form	Horizontal rotation	Horizontal rotation	Horizontal rotation
4	24-hour Capacity	6 ton	8 ton	10 ton
5	Oil yield	2.7-3.3ton	3.6 -4.4ton	4.5 -5.5ton
6	Operating pressure	Normal	Normal	Normal
7	Material of pyrolysis Reactor	Q245R	Q245R	Q245R
8	Thickness of pyrolysis Reactor	16mm	16mm	16mm
9	Rotate speed of pyrolysis Reactor	0.4turn/minute	0.4turn/minute	0.4turn/minute
10	Total power	19KW	19KW	19KW
11	Mode of cooling	Water cooling	Water cooling	Water cooling
12	Cooling area of condenser	100sqm	100sqm	100sqm
13	Kind of transmission	Internal gear drive	Internal gear drive	Internal gear drive
14	Noise dB(A)	≤85	≤85	≤85
15	Size of Reactor(D×L)	2200×6000	2200×6600	2600×6600
16	Working form	Intermittent operation	Intermittent operation	Intermittent operation
17	Delivery time	20days	20days	20days
18	Weight	27T	30T	35T

Prepared by customer about waste rubber recycling machine
No.	Item	Consumption
1	Coal(for choice)	500kg/day
2	Wood(for choice)	800kg/day
3	Natural gas(for choice)	100-150kg/day
4	Oil(for choice)	300-350kg/day
5	Electricity	244kwh/day
6	Water(recycled)	60㎥ /month
7	Total power	19kw
8	Land area	35m*15m

Features
Technical Data
Application

Waste rubber recycling machine final product application

Fuel oil application

Fuel oil: Widely used as fuel oil in industries such as steel and iron factories, ceramics or chemical industries or hotels, restaurants etc. or used for generators to get electricity.

Carbon black: used for construction bricks with clay also can be used as fuel

Combustible gas: Can be recycled and used during process as fuel.
