Waste tires to oil pyrolysis plant

Pyrolysis plant

Waste tires to oil pyrolysis plant 1.Generates quality fuel with lower emission 2.Controls plastic land pollution

Chat Online Leave A Message
 Waste tires to oil pyrolysis plant feature

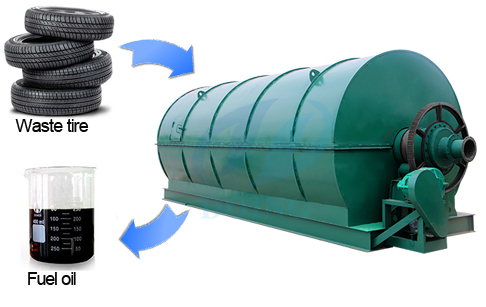

waste tire to oil pyrolysis plant
 Waste tires to oil pyrolysis plant
1.Generates quality fuel with lower emission
2.Controls plastic land pollution
3.Recover energy from waste
4.Helps recycle carbon

 Waste tires to oil pyrolysis plant technical data

Technical parameter of waste tire to oil pyrolysis plant
No. Items Contents
1 Equipment type DY-1-6 DY-1-8 DY-1-10
2 Raw material Waste tires Waste tires Waste tires
3 Structural form Horizontal rotation Horizontal rotation Horizontal rotation
4 24-hour Capacity 6 ton 8 ton 10 ton
5 Oil yield 2.7-3.3ton 3.6 -4.4ton 4.5 -5.5ton
6 Operating pressure Normal Normal Normal
7 Material of pyrolysis Reactor Q245R Q245R Q245R
8 Thickness of pyrolysis Reactor 16mm 16mm 16mm
9 Rotate speed of pyrolysis Reactor 0.4turn/minute 0.4turn/minute 0.4turn/minute
10 Total power 19KW 19KW 19KW
11 Mode of cooling Water cooling Water cooling Water cooling
12 Cooling area of condenser 100sqm 100sqm 100sqm
13 Kind of transmission Internal gear drive Internal gear drive Internal gear drive
14 Noise dB(A) ≤85 ≤85 ≤85
15 Size of Reactor(D×L) 2200×6000 2200×6600 2600×6600
16 Working form Intermittent operation Intermittent operation Intermittent operation
17 Delivery time 20days 20days 20days
18 Weight 27T 30T 35T

Prepared by customer about waste tires to oil pyrolysis plant
No. Item Consumption
1 Coal(for choice) 500kg/day
2 Wood(for choice) 800kg/day
3 Natural gas(for choice) 100-150kg/day
4 Oil(for choice) 300-350kg/day
5 Electricity 244kwh/day
6 Water(recycled) 60㎥ /month
7 Total power 19kw
8 Land area 35m*15m

Waste tires to oil pyrolysis plant final product application
waste tires to oil pyrolysis plant
Waste tires to oil pyrolysis plant final product application
Fuel oil from waste tyre are used in below industries
A.power plant factory
 B.glass factory
C.cement factory
 D.ceramic fatory
 E.aluminum factory
 F.boiler factory
G.central heating factory
H.painting factory
1.A. Waste plastics, Used bottles,used tyres, used bags, farming waste , other
B.Medical waste
C.oil sludge , waste oil ,black oil ,oily solid
D.other living waste
