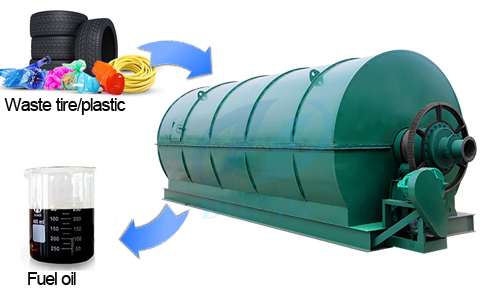

Plastic is widely used in people’s daily life in all countries. It brings people convenience but also causes pollution. Currently, waste plastics are always be disposed by landfill, burning and recycling. However, most of the disposal will cause secondary pollution. The appearance ofwaste plastic recycling machine produced by Doing Group can not only solve the plastic pollution but also bring huge profit. Our plastic waste recycling machine will process waste plastics with pyrolysis technology. After processing, the final products will be fuel oil and carbon black. Fuel oil is a good heating fuel which can be used in many industries for heating purpose
Chat Online Leave A MessageTechnical parameter of Waste plastic recycling | ||||
No. | Items | Contents | ||
1 | Equipment type | DY-1-6 | DY-1-8 | DY-1-10 |
2 | Raw material | Waste tyre | Waste tyre | Waste tyre |
3 | Structural form | Horizontal rotation | Horizontal rotation | Horizontal rotation |
4 | 24-hour Capacity | 6 ton | 8 ton | 10 ton |
5 | Oil yield | 2.7-3.3ton | 3.6 -4.4ton | 4.5 -5.5ton |
6 | Operating pressure | Normal | Normal | Normal |
7 | Material of pyrolysis Reactor | Q245R | Q245R | Q245R |
8 | Thickness of pyrolysis Reactor | 16mm | 16mm | 16mm |
9 | Rotate speed of pyrolysis Reactor | 0.4turn/minute | 0.4turn/minute | 0.4turn/minute |
10 | Total power | 19KW | 19KW | 19KW |
11 | Mode of cooling | Water cooling | Water cooling | Water cooling |
12 | Cooling area of condenser | 100sqm | 100sqm | 100sqm |
13 | Kind of transmission | Internal gear drive | Internal gear drive | Internal gear drive |
14 | Noise dB(A) | ≤85 | ≤85 | ≤85 |
15 | Size of Reactor(D×L) | 2200×6000 | 2200×6600 | 2600×6600 |
16 | Working form | Intermittent operation | Intermittent operation | Intermittent operation |
17 | Delivery time | 20days | 20days | 20days |
18 | Weight | 27T | 30T | 35T |
Prepared by customer about Waste plastic recycling machine | |||
No. | Item | Consumption | |
1 | Coal(for choice) | 500kg/day | |
2 | Wood(for choice) | 800kg/day | |
3 | Natural gas(for choice) | 100-150kg/day | |
4 | Oil(for choice) | 300-350kg/day | |
5 | Electricity | 244kwh/day | |
6 | Water(recycled) | 60㎥ /month | |
7 | Total power | 19kw | |
8 | Land area | 35m*15m |
