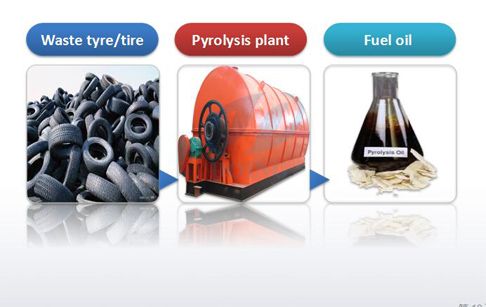

Waste tire to fuel oil pyrolysis plant

Doing Group as a leading pyrolysis plant manufacture, we need to develop all the time. According to the customers’ requirement, we design a new waste tire to fuel oil pyrolysis plant with lower cost and higher oil output. it make the pyrolysis oil become easy.

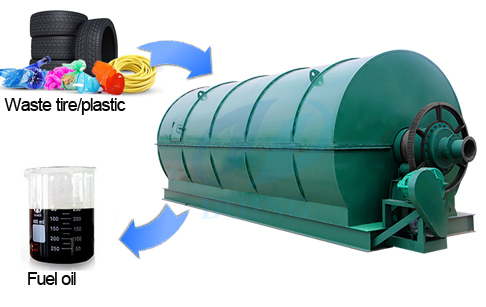

The technology we are using for waste recycling is “pyrolysis”. Pyrolysis is a green technology for waste recycling. It recycles waste tire, waste plastic and waste rubber into fuel oil. It’s a renewable energy and helpfuel to our environment. It solves environmental pollution which is becoming a serious problem in everywhere. I believe it’s a meaningful industry.

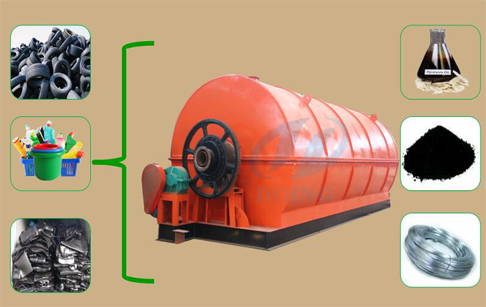

This pyrolysis plant combines three types, such as batch, semi-continuous and fully-continuous pyrolysis plant. You can choose the suitable pyrolysis plant according to your actual demand. If you have special requirement, we can also provide you with customized plant.

Batch pyrolysis plant anc continuous pyrolysis plant

Waste tire to fuel oil pyrolysis plant install successful cases

Waste tire to fuel oil pyrolysis plant iinstall in different conuntries

Features
Technical Data
Application

Waste tire to fuel oil pyrolysis plant technical data

Technical parameter of waste tire to fuel oil pyrolysis plant
No.	Items	Contents
1	Equipment type	DY-1-6	DY-1-8	DY-1-10
2	Raw material	Waste tire	Waste tire	Waste tire
3	Structural form	Horizontal rotation	Horizontal rotation	Horizontal rotation
4	24-hour Capacity	6 ton	8 ton	10 ton
5	Oil yield	2.7-3.3ton	3.6 -4.4ton	4.5 -5.5ton
6	Operating pressure	Normal	Normal	Normal
7	Material of pyrolysis Reactor	Q245R	Q245R	Q245R
8	Thickness of pyrolysis Reactor	16mm	16mm	16mm
9	Rotate speed of pyrolysis Reactor	0.4turn/minute	0.4turn/minute	0.4turn/minute
10	Total power	19KW	19KW	19KW
11	Mode of cooling	Water cooling	Water cooling	Water cooling
12	Cooling area of condenser	100sqm	100sqm	100sqm
13	Kind of transmission	Internal gear drive	Internal gear drive	Internal gear drive
14	Noise dB(A)	≤85	≤85	≤85
15	Size of Reactor(D×L)	2200×6000	2200×6600	2600×6600
16	Working form	Intermittent operation	Intermittent operation	Intermittent operation
17	Delivery time	20days	20days	20days
18	Weight	27T	30T	35T

Prepared by customer about waste tire to fuel oil pyrolysis plant
No.	Item	Consumption
1	Coal(for choice)	500kg/day
2	Wood(for choice)	800kg/day
3	Natural gas(for choice)	100-150kg/day
4	Oil(for choice)	300-350kg/day
5	Electricity	244kwh/day
6	Water(recycled)	60㎥ /month
7	Total power	19kw
8	Land area	35m*15m

Features
Technical Data
Application

Final product application of waste tire to fuel oil pyrolysis plant

tire pyrolysis plant

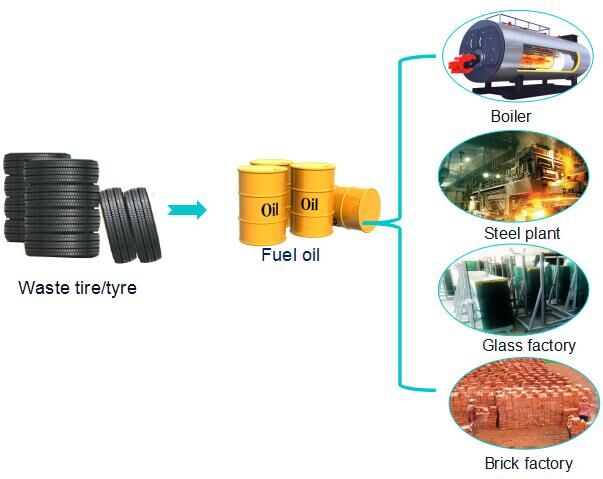

Fuel oil application

1.Fuel oil: Oil from our waste tire to fuel pyrolysis plant can be used as industrial fuel materials for burning.

Waste tire to fuel pyrolysis plant

2.Carbon black: Carbon black from this waste tire to fuel pyrolysis plant is crude oil , so you can sell it to the brick factory as internal combustion or to the factory which need it as raw materials, such as shoe, tire, cable and sealant companies. You can take carbon black for deep processing .
3.Steel wire: It can be sold to the iron and steel company directly.
