waste recycling machines

• Features
• Technical Data
• Application

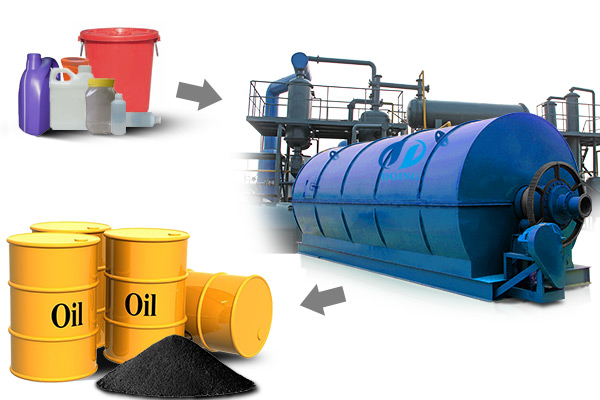

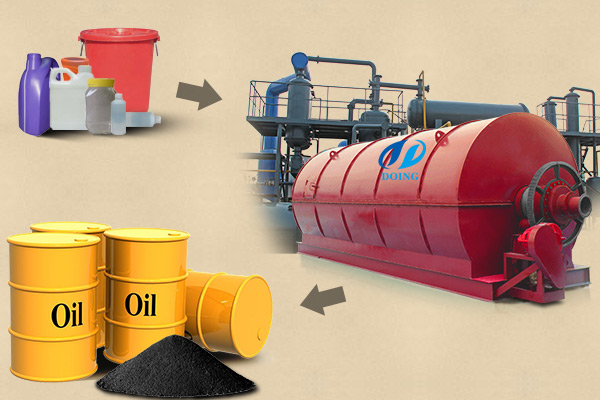

With the development of the economics, the waste management is also becoming more and more important With the increasing amount of the waste such as waste rubber, waste paper, waste plastic and so on. Now we attach more importance to the waste management. And now there are many companies and associations to specially manage the waste. It has proven much commercial validation. For the waste plastic management, we mainly convert the waste plastic to fuel oil.

The advantages of the waste plastic recycling machine manufactured by henan doing:

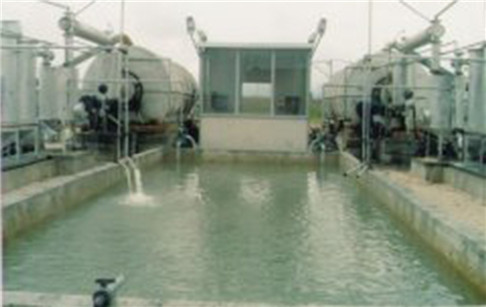

Environmentally: we have well dedusting system to dedust the dust. The off-gas the waste plant&tyre generated is recycled to heat the reactor so little energy is required to run the machine. The water used to cool the water is clear; the water is non-contact with the oil gas. So when one process is finished the water can be recycled.

Higher oil yield rate: we enlarge the cooling area of the condenser thus improving the oil yield rate. And we have special catalyst to improve the oil yield rate. With years’ experience and development we have our special technology to improve the oil yield rate.

Safer: All our products have the well-sealing system to prevent the gas from leaking to avoid blast. And we have the X-ray system to ensure the sealing to make the reactor safer. The vacuum system will prevent the oil gas going back to the reactor to cause exploration. what is more we have the anti-fire system to ensure safer.
Low cost: The pyrolysis plant is designed to use little energy. And the energy is only used in the start-up of the machine, once the machine is running; it does not need external energy. It just needs little fuel to start the machine.


• Features
• Technical Data
• Application

Technical parameter of 5th generation waste tire/plastic recycling machine
	Items	Contents
1	Equipment type	DY-1-6	DY-1-8	DY-1-10
2	Raw material	Waste tyre	Waste tyre	Waste tyre
3	Structural form	Horizontal rotation	Horizontal rotation	Horizontal rotation
4	24-hour Capacity	6 ton	8 ton	10 ton
5	Oil yield	2.7-3.3ton	3.6 -4.4ton	4.5 -5.5ton
6	Operating pressure	Normal	Normal	Normal
7	Material of pyrolysis Reactor	Q245R	Q245R	Q245R
8	Thickness of pyrolysis Reactor	16mm	16mm	16mm
9	Rotate speed of pyrolysis Reactor	0.4turn/minute	0.4turn/minute	0.4turn/minute
10	Total power	19KW	19KW	19KW
11	Mode of cooling	Water cooling	Water cooling	Water cooling
12	Cooling area of condenser	100sqm	100sqm	100sqm
13	Kind of transmission	Internal gear drive	Internal gear drive	Internal gear drive
14	Noise dB(A)	≤85	≤85	≤85
15	Size of Reactor(D×L)	2200×6000	2200×6600	2600×6600
16	Working form	Intermittent operation	Intermittent operation	Intermittent operation
17	Delivery time	20days	20days	20days
18	Weight	27T	30T	35T
