With more than ten years of experience and efforts,Doing have designed and manufactured the waste tyre to fuel oil pyrolysis plant which has many latest designs. First, it is equipped with automatic feeding system and two sealed discharging systems, which makes it easier and more safe to operate.Waste tyre to fuel oil pyrolysis plant for recycling waste tyre and turning waste tyre to fuel oil ,carbon black ,steel wire.

Chat Online Leave A Message

pyrolysis plant

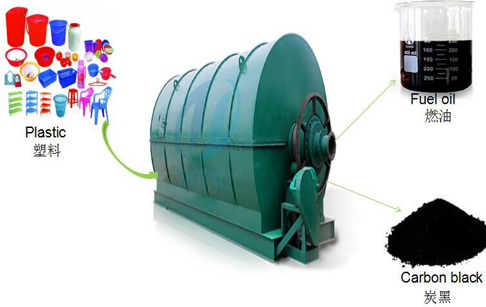

This is pyrolysis



What is pyrolysis?

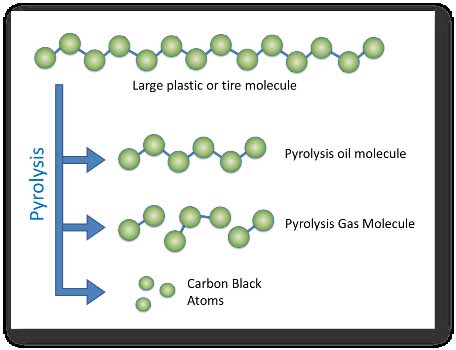

Pyro = heat. Lysis = break down.Plastic Pyrolysis is chemical reaction. This reaction involves molecular breakdown of larger molecules into smaller molecules in presence of heat. Pyrolysis is also known as thermal cracking, cracking, thermolysis, depolymerization, etc.

At any given temperature the molecule is in vibrating stage. This is called molecular vibration. The frequency at which molecules vibrates is the directly proportional to the temperature of molecules. During pyrolysis the object’s molecules are subjected to very high temperatures leading to very high molecular vibrations. At these high molecular vibrations, every molecule in the object is stretched and shaken to such an extent that molecules starts breaking down into smaller molecules. This is pyrolysis.
tyre to fuel oil
Waste tyre to fuel oil pyrolysis plant
With more than ten years of experience and efforts,Doing have designed and manufactured the waste tyre to fuel oil pyrolysis plant which has many latest designs. First, it is equipped with automatic feeding system and two sealed discharging systems, which makes it easier and more safe to operate.Waste tyre to fuel oil pyrolysis plant  for recycling waste tyre and turning waste tyre to fuel oil ,carbon black ,steel wire.


 Waste tyre to fuel oil pyrolysis plant raw material

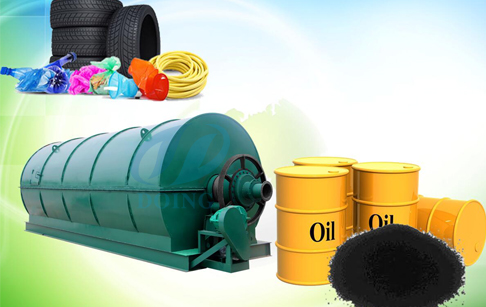

waste tire oil pyrolysis plant to fuel oil

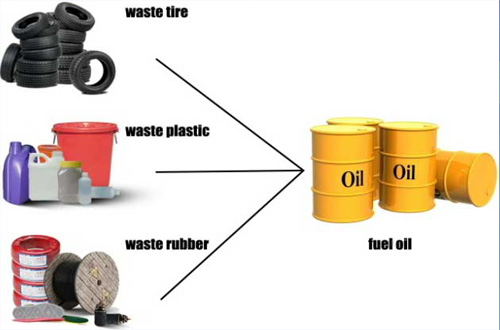

The raw material of  waste tyre to fuel oil pyrolysis plant





1.Waste tire/tyre

2.Waste plastic

3.Waste rubber
 Waste tyre to fuel oil pyrolysis plant working principle

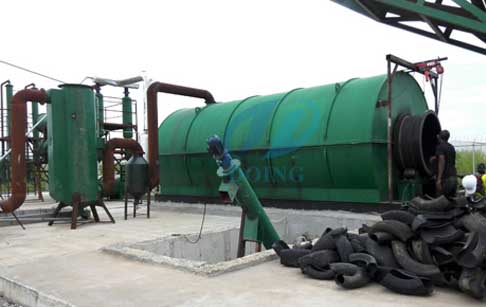

tyre pyrolsysis plant
 Waste tyre to fuel oil pyrolysis plant is proessing waste tyres


1. Firstly, the raw material was put into furnace with auto feeder,then seal the feed inlet system.
2. Secondly, burned the fuel material (coal, or wood, or natural gas, oil ) in the combustion system .The reactor will slowly heat, when the temperature reach around 150 degree Celsius, it will produce oil gas .

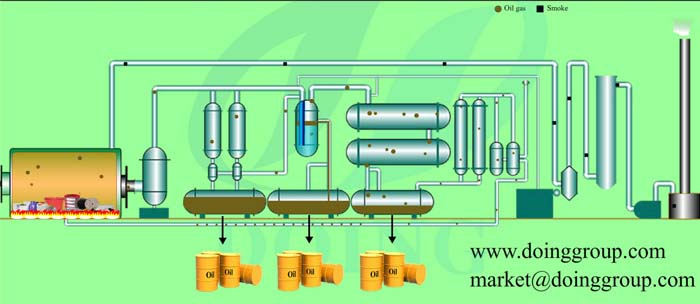

3.Oil gas will be processed by our technology ,then gone to cooling system to cold liquid oil. The gas which can not be liquid under normal pressure ,which will be designed to back to combustion system to instead the fuel material to burn the reactor .which can save energy very much.
4. After finished oil produce ,the temperature of reactor will be down ,in same time ,carbon black will be discharged automatically.
5. Lastly, when the temperature fall to 100 degree Celsius, worker could opened the door of reactor to discharge of steel wire .
Then can start to another batch working.

The keys of  Waste tyre to fuel oil pyrolysis plant are reactor and cooling system


tyre to fuel oil
Pyrolsyis plant reactor

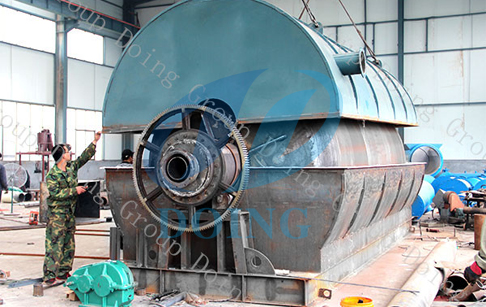

Reactor directly decides the machine's safety and service life. It is made by welded steel plate. So the quality of welding will have a direct impact on safety and service life. Therefore, we use automatic welding machine, X-rays detection and heating treatment which will not only guarantee the quality of welding but also greatly improve working efficiency.
Waste tyre to fuel oil pyrolysis plant cooling systems decides oil output. There are two steps for cooling. Cooling pipe is the first step. The second is condenser. Its inner have 61 pipes in one condenser. The total cooling area is 100㎡. This will guarantee you a high oil yield.  The reasonable design has a direct relationship with the oil output.


 Waste tyre to fuel oil pyrolysis plant main features

waste tire oil pyrolysis plant to fuel oil
 Waste tyre to fuel oil pyrolysis plant feature


1.We can get tyre oil,carbon black,and steel from waste rubber tyres and plastics.
2. High oil output rate 45%-52%, the rubber up to 60%.
3. Rapid condenser, we have 5 condensers, the cooling area up to 53 square meters, the area larger, the more oil u can get.
4. Large capacity: 6tons / 8tons / 10tons / 12tons / 20tons.
5. Safety device, we have automatic alarm bells with pressure gauge, If pressure gauge more than the pressure, bells will ring.
6. Environmental protection, no pollution, no smell.
7. 6—8 years life, 1 years warranty


 Waste tyre to fuel oil pyrolysis plant technical data


Technical parameter of  Waste tyre to fuel oil pyrolysis plant
No. Items Contents
1 Equipment type DY-1-6 DY-1-8 DY-1-10
2 Raw material Waste tire Waste tire Waste tire
3 Structural form Horizontal rotation Horizontal rotation Horizontal rotation
4 24-hour Capacity 6 ton 8 ton 10 ton
5 Oil yield 2.7-3.3ton 3.6 -4.4ton 4.5 -5.5ton
6 Operating pressure Normal Normal Normal
7 Material of pyrolysis Reactor Q245R Q245R Q245R
8 Thickness of pyrolysis Reactor 16mm 16mm 16mm
9 Rotate speed of pyrolysis Reactor 0.4turn/minute 0.4turn/minute 0.4turn/minute
10 Total power 19KW 19KW 19KW
11 Mode of cooling Water cooling Water cooling Water cooling
12 Cooling area of condenser 100sqm 100sqm 100sqm
13 Kind of transmission Internal gear drive Internal gear drive Internal gear drive
14 Noise dB(A) ≤85 ≤85 ≤85
15 Size of Reactor(D×L) 2200×6000 2200×6600 2600×6600
16 Working form Intermittent operation Intermittent operation Intermittent operation
17 Delivery time 20days 20days 20days
18 Weight 27T 30T 35T

Prepared by customer about  Waste tyre to fuel oil pyrolysis plant

No. Item Consumption
1 Coal(for choice) 500kg/day
2 Wood(for choice) 800kg/day
3 Natural gas(for choice) 100-150kg/day
4 Oil(for choice) 300-350kg/day
5 Electricity 244kwh/day
6 Water(recycled) 60㎥ /month
7 Total power 19kw
8 Land area 35m*15m


 Waste tyre to fuel oil pyrolysis plant final product  application

waste tire oil pyrolysis plant to fuel oil
Fuel oil application




1.Fuel Oil (45% to 52%)

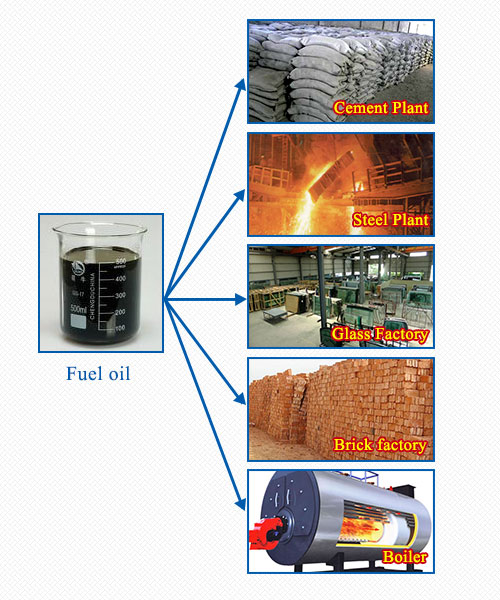

The main application of oil products produced by our  Waste tyre to fuel oil pyrolysis plant is the fuel oil that is wide used for industrial and commercial purposes. Such as power plant factory,glass factory,cement factory,ceramic fatory.

Steel Wire (12% to 15%) Waste tyre to fuel oil pyrolysis plant is steel wire, the quantity of steel wire is about 10% to 15% according to tyre quality. It is very easy to sell steel wire scrape in local market.

Carbon Black (30%)
tyre pyrolysis plant

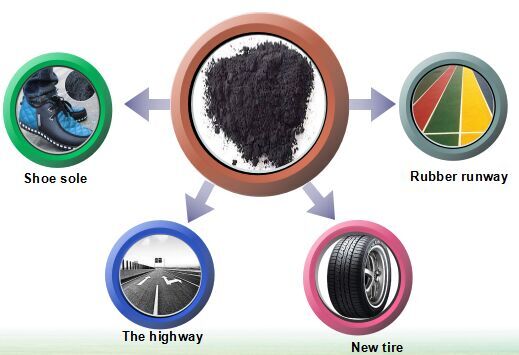

Carbon black application
The second product of  Waste tyre to fuel oil pyrolysis plant is carbon black. The quantity of carbon black is about 30% to 35% according to tyre quality. Carbon black can application to electric cable jacketing,black nylon bag,rubber additive

Exhaust gas (About 10%)
We get about 10% pyrolytic gases during pyrolysis process. The main component of this gases are methane (CH4), so we can not condense and store this gases. We use this gases to heat the reactor and we can use exceed gases for other heating application.
