OTR tire Sidewall cutting machine introduction

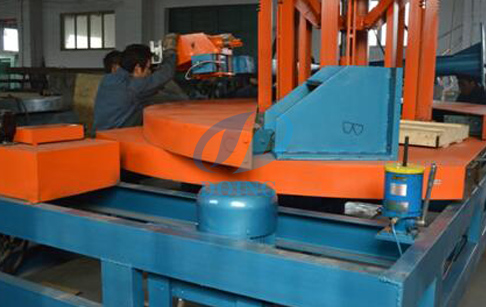

OTR tire Sidewall cutting machine
This OTR tire Sidewallcutting machine is used for waste OTR tire breaking, which can cut the sidewall off from the OTR tire and then benefit the next step tire split. It is used for 1600~3600mm waste OTR tire processing.
OTR tire Sidewall cutting machine General operation
Place the OTR tire on the rotatory table, lock the link mechanism to fix the OTR tire bead, start the machine, grab the handle to push the rotary arm and put the knife on close to the edge of sidewall( pay attention to adjust the upper limit screw on the column), then slowly put down the knife to finish the OTR sidewall cut-off.
OTR tire Sidewall cutting machine tech data
Model |
QKF1600 |
Processing range |
1600~3600mm OTR tire |
Supporting power |
380V 3 phase 50Hz |
Power |
2.2kw |
Capacity |
40~60pcs/hour |
Weight |
1.5Ton |
Dimension |
2900×2400×2630mm |
About OTR tire Sidewall cutting machine delivery
OTR tire Sidewall cutting machine
Before OTR tire Sidewall cutting machine loading in our factory, we will dismantle some of its parts to make sure it can fit for the container. Usually, we will mark the dismantled parts, and when the OTR sidewall cutter arrived, we will instruct our customers how to assemble all parts together.
