Waste tire oil pyrolysis plant to fuel oil

The booming world economy make the oil shortage more and more serious, and the energy had been the main constraint on economical development, so finding a new energy, and make fully use of the current resources are the most urgent task for the world.

The scientists and the far sighted manufacturers recommend the Waste tire oil pyrolysis plant to fuel oil, which adopts the pyrolysis technology.

waste tire oil to fuel oil

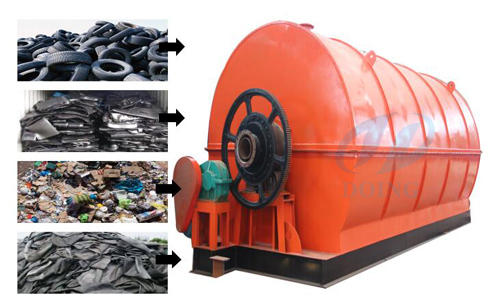

Waste tire oil pyrolysis plant to fuel oil

What is pyrolysis:

Pyro = heat. Lysis = break down.
Pyrolysis is chemical reaction. This reaction involves molecular breakdown of larger molecules into smaller molecules in presence of heat. Pyrolysis is also known as thermal cracking, cracking, thermolysis, depolymerization, etc.

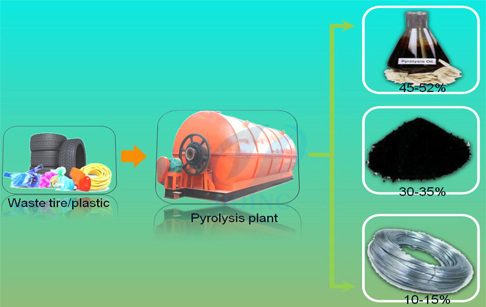

Tire pyrolysis is: the process of converting waste tires into industrial fuels like Tire Pyrolysis Oil, Carbon Black, Steel Wire and Hydrocarbon Gas.

Tire pyrolysis involves subjecting tire to high temperature of 400 to 450 degree Celsius, in absence of oxygen. In case of oxygen is present plastic will start burning. During pyrolysis tire breaks down into smaller molecules of pyrolysis oil, pyrolysis gas, steel wire and carbon black. Pyrolysis is a great way of recycling large amounts of tires. This waste tire oil pyrolysis plant to fuel oil can also used for waste plastic recycling.

Oil yield of different waste tire/rubbers:

Raw material	Oil yield
Submarine cable	75%
Rubber cable	35%
Sole	30%
Big tires	45%-50%
Small tires	35%-40%

Features
Technical Data
Application

Waste tire oil pyrolysis plant to fuel oil technical data

Technical parameter of Waste tire oil pyrolysis plant to fuel oil
No.	Items	Contents
1	Equipment type	DY-1-6	DY-1-8	DY-1-10
2	Raw material	Waste tires	Waste tires	Waste tires
3	Structural form	Horizontal rotation	Horizontal rotation	Horizontal rotation
4	24-hour Capacity	6 ton	8 ton	10 ton
5	Oil yield	2.7-3.3ton	3.6 -4.4ton	4.5 -5.5ton
6	Operating pressure	Normal	Normal	Normal
7	Material of pyrolysis Reactor	Q245R	Q245R	Q245R
8	Thickness of pyrolysis Reactor	16mm	16mm	16mm
9	Rotate speed of pyrolysis Reactor	0.4turn/minute	0.4turn/minute	0.4turn/minute
10	Total power	19KW	19KW	19KW
11	Mode of cooling	Water cooling	Water cooling	Water cooling
12	Cooling area of condenser	100sqm	100sqm	100sqm
13	Kind of transmission	Internal gear drive	Internal gear drive	Internal gear drive
14	Noise dB(A)	≤85	≤85	≤85
15	Size of Reactor(D×L)	2200×6000	2200×6600	2600×6600
16	Working form	Intermittent operation	Intermittent operation	Intermittent operation
17	Delivery time	20days	20days	20days
18	Weight	27T	30T	35T

Prepared by customer about waste tire oil pyrolysis plant to fuel oil
No.	Item	Consumption
1	Coal(for choice)	500kg/day
2	Wood(for choice)	800kg/day
3	Natural gas(for choice)	100-150kg/day
4	Oil(for choice)	300-350kg/day
5	Electricity	244kwh/day
6	Water(recycled)	60㎥ /month
7	Total power	19kw
8	Land area	35m*15m

Features
Technical Data
Application

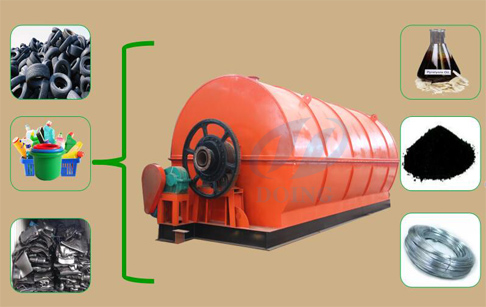

Waste tire oil pyrolysis plant to fuel oil final product application

Waste tire oil pyrolysis plant to fuel oilfinal product application

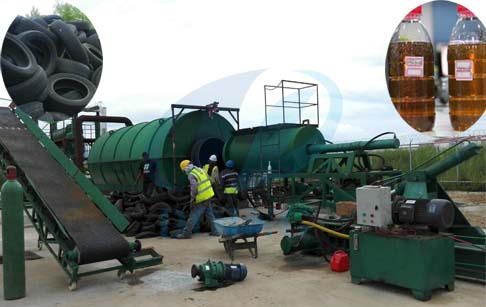

waste tire pyrolysis plant

Carbon black application

Items	Application	Sales Market
45% tire oil	1. Add it into heavy oil generator to produce electricity. 2. Used as heating material. 3. Sell it into oil refining factory to further process it	Ceramic factory, glass factory, electric power factory, steel making factory, boiler factory…etc.
30% Carbon black	1. Deep process it into Carbon black. 2. Make it into pellet or briquette for burning. 3. Further process it into color master batch as basic material to make pipes, cable jacket…etc.	Coal briquette factory, plastic factory, cable factory, etc.
15% Steel wire(for tire)	Sell it directly	Iron and steel factory
10% Waste gas	Recycled into fire furnace to heat reactor to save fuel material.
