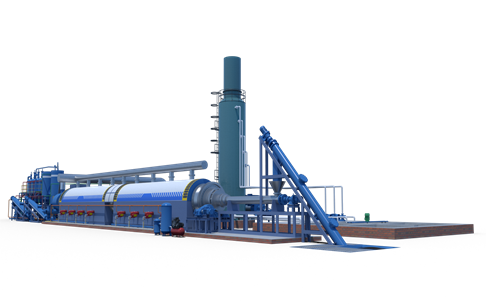

New technology continuous waste tyre pyrolysis plant

As a professional pyrolysis plant manufacturer, Doing group has exported products to more than twenty countries. Among them, our continuous waste tyre pyrolysis plant is proved to be high efficiency and high cost-effective.the continuous waste tyre pyrolysis plant which has many latest designs. First, it is equipped with automatic feeding system and two sealed discharging systems, which makes it easier and more safe to operate. Second, it not only can dispose 10-100 tons of waste plastics per day, but also can work continuously for 24 hours per day without a stop. These new designs make it very popular among many customers.

New technology continuous waste tyre pyrolysis plant working process

New technology continuous waste tyre pyrolysis plant working process

Shred tyres: Use a specialized tyre shredder to process big whole tyres into 3-5cm small pieces for easy feeding. The tyre shredder is a single and fully automatic shredding system, which can be directly connected to the feeding system of the continuous pyrolysis plant, which no need any transfer process.

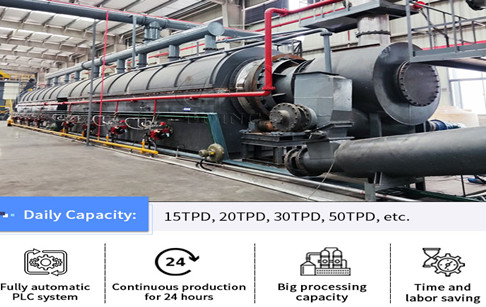

Continuous pyrolysis process: Shredded tyres go into the continuous waste tyre pyrolysis plant, will firstly go through a mutiple pyrolysis reactor system to be pyrolyzed into oil gas. And oil gas will be cooling down to liquid oil through the cooling system. The residues (carbon black) will be pushed by continuous feeding tyres to the carbon black dischrge system for discharge.

New technology continuous waste tyre pyrolysis plant advantage

Firstly, the pretreatment of tyres make the pyrolysis process more efficient. Secondly, its feeding of raw materials and discharging of slag are both automatic, which help saving manpower and cost. Thirdly, the continuous system can continuously work 24 hours per day, and it doesn’t need to be cooled before the second batch, which saves time and improve efficiency.

Features
Technical Data
Application

Technical Data of continuous waste tyre pyrolysis plant

Technical parameter of continuous waste tyre pyrolysis plant
No.	Items	Contents
1	Equipment type	DY-1-6	DY-1-8	DY-1-10
2	Raw material	Waste tyre	Waste tyre	Waste tyre
3	Structural form	Horizontal rotation	Horizontal rotation	Horizontal rotation
4	24-hour Capacity	6 ton	8 ton	10 ton
5	Oil yield	2.7-3.3ton	3.6 -4.4ton	4.5 -5.5ton
6	Operating pressure	Normal	Normal	Normal
7	Material of pyrolysis Reactor	Q245R	Q245R	Q245R
8	Thickness of pyrolysis Reactor	16mm	16mm	16mm
9	Rotate speed of pyrolysis Reactor	0.4turn/minute	0.4turn/minute	0.4turn/minute
10	Total power	19KW	19KW	19KW
11	Mode of cooling	Water cooling	Water cooling	Water cooling
12	Cooling area of condenser	100sqm	100sqm	100sqm
13	Kind of transmission	Internal gear drive	Internal gear drive	Internal gear drive
14	Noise dB(A)	≤85	≤85	≤85
15	Size of Reactor(D×L)	2200×6000	2200×6600	2600×6600
16	Working form	Intermittent operation	Intermittent operation	Intermittent operation
17	Delivery time	20days	20days	20days
18	Weight	27T	30T	35T

Prepared by customer about continuous waste tyre pyrolysis plant
No.	Item	Consumption
1	Coal(for choice)	500kg/day
2	Wood(for choice)	800kg/day
3	Natural gas(for choice)	100-150kg/day
4	Oil(for choice)	300-350kg/day
5	Electricity	244kwh/day
6	Water(recycled)	60㎥ /month
7	Total power	19kw
8	Land area	35m*15m

Features
Technical Data
Application

Application of continuous waste tyre pyrolysis plant final product

Application of continuous waste tyre pyrolysis plant final product

1.the usage of final production-----Fueloil
Fuel oil from waste tyre are used in below industries
A.power plant factory
B.glass factory
C.cement factory
D.ceramic factory
E.aluminum factory
F.boiler factory
G.central heating factory
H.painting factory

The usage of final production-----Carbon black
Carbon black from waste tyre are used in below industries
A.electric cable jacketing
B.conveyor ban
C.hose and doormat
D.black nylon bag
E.rubber additive
F.automatic spare parts
G.heat isolation
H.black colorant in rubber materials
