Waste Tire Pyrolysis Plant

Waste plastic and tyre pyrolysis plant

Waste plastic and tyre pyrolysis plant was designed to decompose waste tires through high temperature process into kinds of useful resources, such as fuel oil, carbon clack, steel wires and fuel gas, etc.. Fuel oil from waste tyre and plastic pyrolysis plant ,after oil distillation machine ,you can get diesel ,diesel can application to tractors,trucks,ships etc.

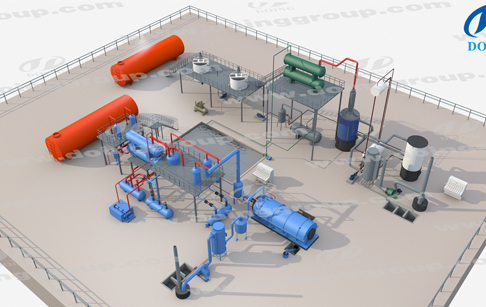

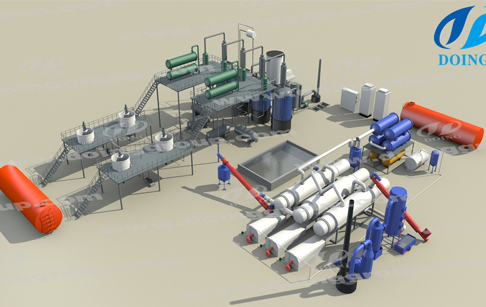

waste plastic and tyre pyrolysis plant3D drawing of DOING waste plastic and tyre pyrolysis plant

DOING manufactures and offers the leading eco-friendly and cost-effective waste plastic and tyre pyrolysis plant with the world class design and technology. Hennan DOING has never stopped to develop the pyrolysis plant and experienced a lot of researches and experiment. At the moment, DOING has already designed the waste plastic and tyre pyrolysis plant with lower cost and higher fuel oil output.

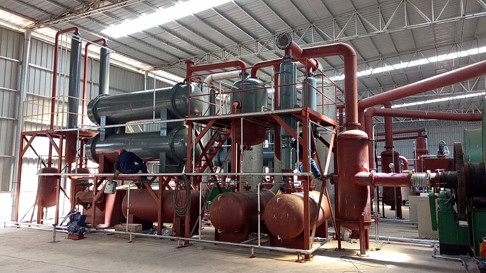

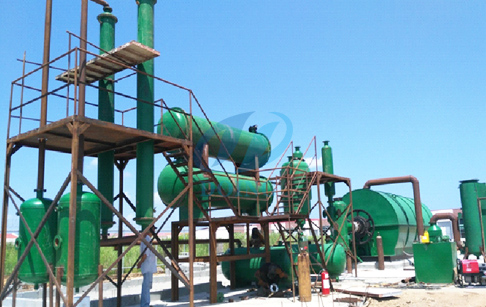

waste plastic and tyre pyrolysis plantWaste plastic and tyre pyrolysis plant

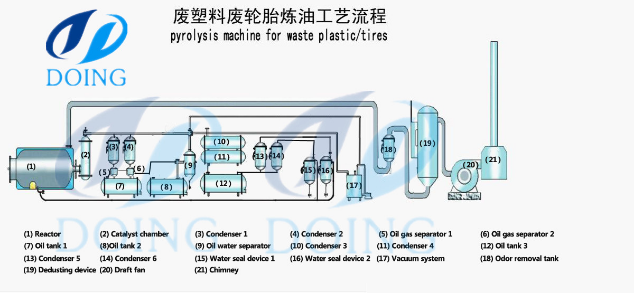

The waste plastic and tyre pyrolysis plant is a green technology to solve tire and other environment pollution which are becoming the serious issues nowadays and it is the meaningful industry. The main parts of whole pyrolysis system includes reactor, transmission device, catalytic chamber, cooling tube, manifold, heavy oil tank, light oil tank, oil condenser, oil-water separator, safety device, vacuum system, dedusting system, etc. All parts of waste plastic and tyre pyrolysis plant are manufactured with superior quality materials and advanced technologies, so DOING can promise that the quality is guaranteed. Therefore, DOING waste plastic and tyre pyrolysis plant is one of the most popular machine for environment protection and in great demand in the world.

Working process of waste plastic and tyre pyrolysis plant

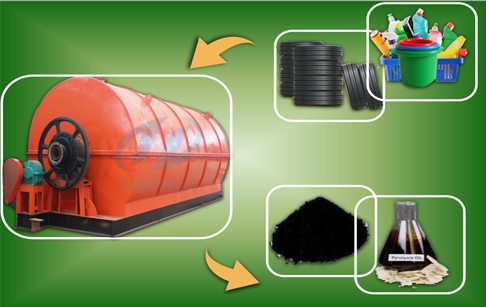

waste tyre and plastic pyrolysis plantWorking process of waste plastic and tyre pyrolysis plant



→Use auto feeder load compete tires into reactor directly, 2 hours

→ Put wood/coal/natural gas/fuel oil into fire furnace make fire, warm up reactor, last 3-4hours

→ After that oil gas will come out, last 10-12hours

→ Cooling down reactor, 1 hour

→ Discharge carbon black, 1 hour

→ pull steel wire out, 1 hour



Raw materil & oil ratio of waste plastic and tyre pyrolysis plant

waste tyre and plastic pyrolysis plantRaw material of waste plastic and tyre pyrolysis plant



Oil ratio of diferent raw material


Raw material Oil ratio
Steel wire tyre 45-52%
Nylon tyre 40%
Bicycle tyre 35%
Off--road tyre 60%
Truck tyre 75%



Advantage of waste plastic and tyre pyrolysis plant

waste tyre and plastic pyrolysis plantAdvantage of waste plastic and tyre pyrolysis plant

1. Safe

The waste plastic and tyre pyrolysis plant is equipped with mature safety devices, such as alarm for over temperature and pressure, auto pressure releasing system, extra gas recycling system and fire fighting device, which will guarantee 100% safety in the pyrolysis process.

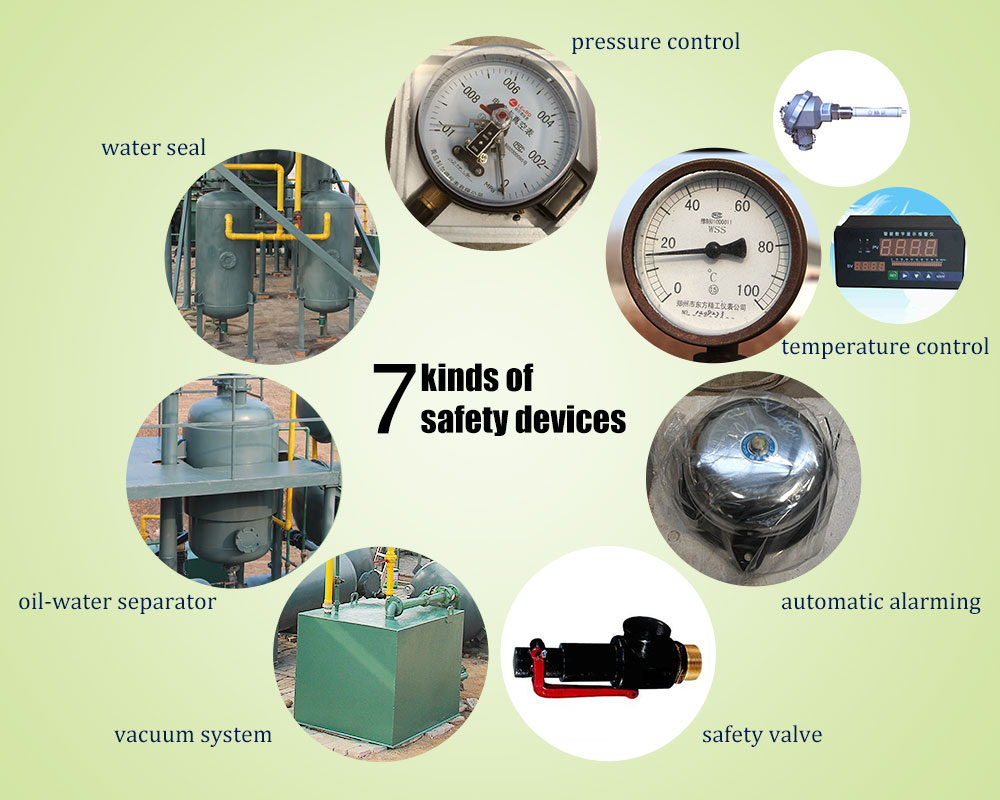

waste plastic and tyre pyrolysis plantSafety devices

2. Energy-saving

By the extra gas recycling system, the gas that can not be condensed will be recycled to the burning room. It can replace the fuel material to heat the reactor, which will reduce additional fuel consumption.

3.High oil yield. Waste plastic and tyre pyrolysis plant cooling systems decides oil output. There are two steps for cooling. Cooling pipe is the first step. The second is condenser. Its inner have 61 pipes in one condenser. The total cooling area is 100㎡. This will guarantee you a high oil yield. The reasonable design can ensure the high oil output of the pyrolysis plant.

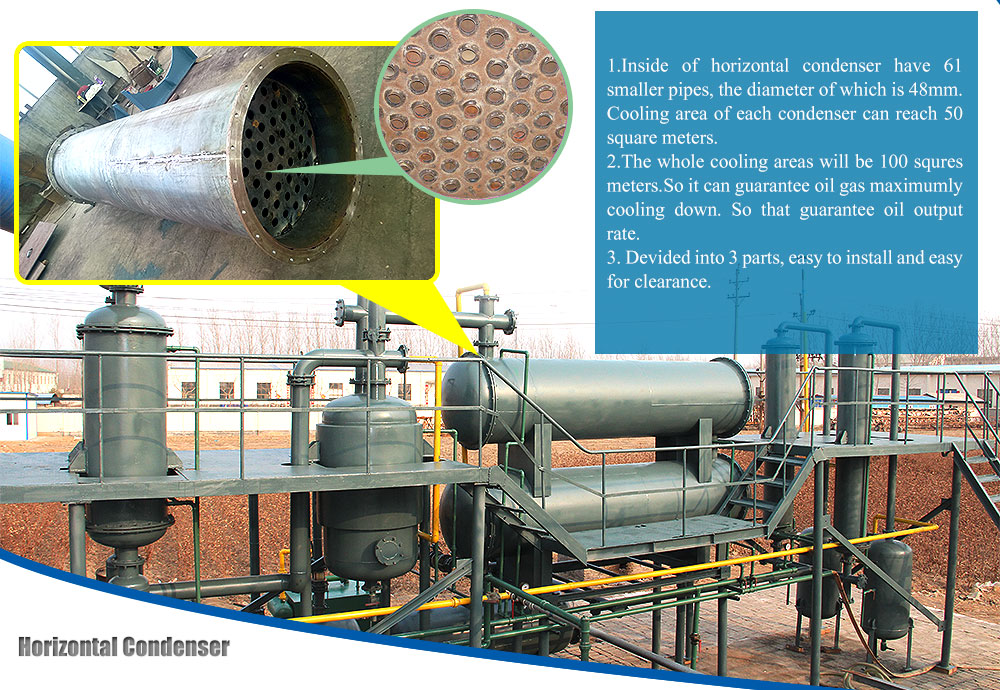

waste plastic and tyre pyrolysis plantThe condenser of waste plastic and tyre pyrolysis plant

4. Long service life

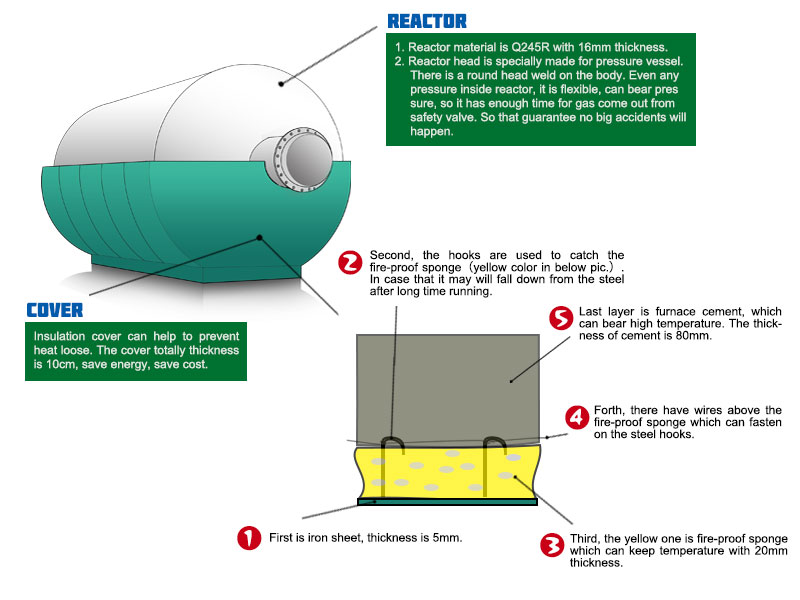

Reactor directly decides the machine's safety and service life. It is made by welded steel plate. So the quality of welding will have a direct impact on safety and service life. Therefore, we use automatic welding machine, X-rays detection and heating treatment which will not only guarantee the quality of welding but also greatly improve working efficiency.

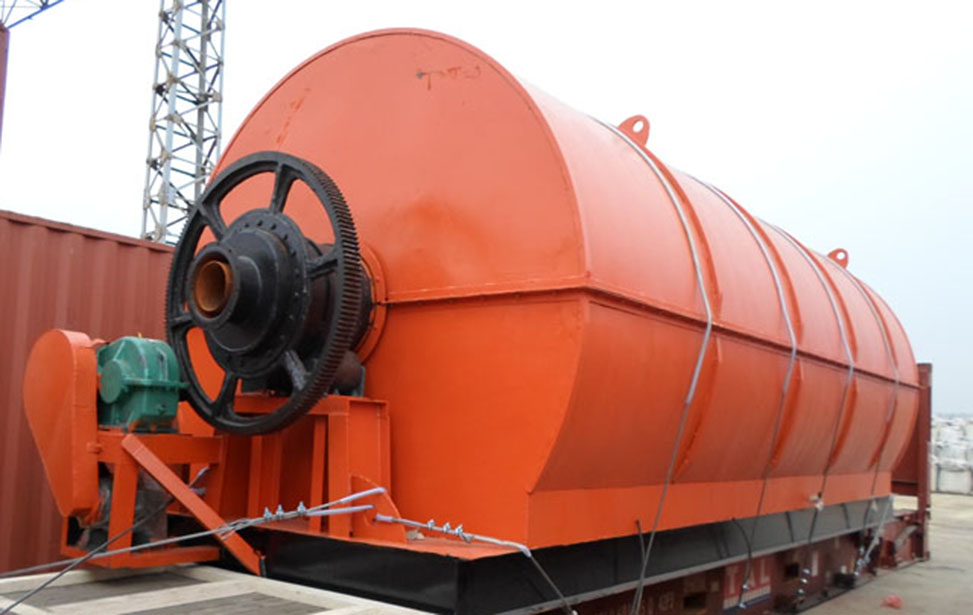

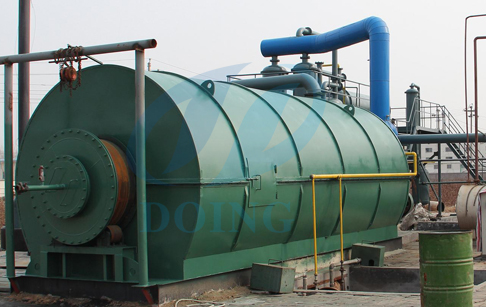

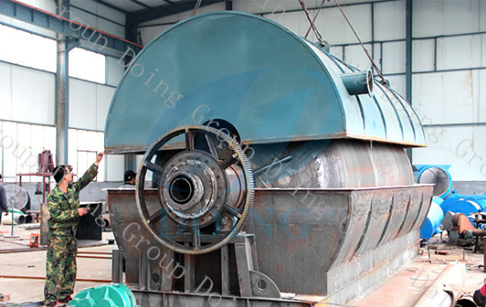

waste plastic and tyre pyrolysis plantPyrolysis reactor

5.Environment friendly

There are four products that may pollute the environment, gas, waster, noise and smell, for which we have special equipment to treat. So the waste plastic and tyre pyrolysis plant is environment friendly.

(1) Gas. From our pyrolysis plant, there are 2 kinds of gas, one is gas from feeding material, like coal, wood etc, this gas will go through the dedusting system, gas after dedusting system is very clean, almost like steam. We have the SGS report for this part gas, it can reach international standards. Another part gas is uncondensible oil gas, this part gas we will recycle to furnace for heating reactor as energy. In the dedusting system, three steps (water spray, ceramic ring filter, washing chamber) are used to dedust the extra gas and more than 95% of the dust would be removed. The released gas is pollution-free and can be discharged into the air directly.

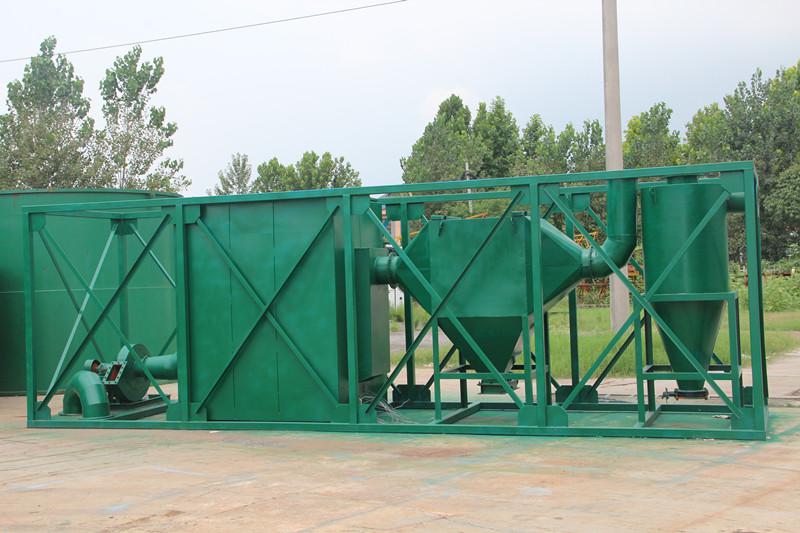

waste plastic and tyre pyrolysis plantPulse dust collector

(2) Water. Like gas, water also have 2 parts. One part is for cooling down oil gas, this part water is pumped through the pipe, oil and water are always indirect contact. The water in the circulating system is always clean. Another part water is concluded in dedusting system, water film dust removal system use high-pressure hydraulic pump to press water into high pressure nozzle which atomize the water to clean the smoke from furnace, this part water is also circulating. So water no pollution.

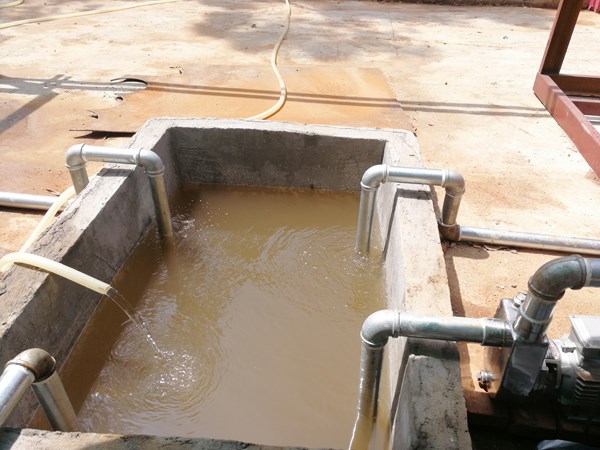

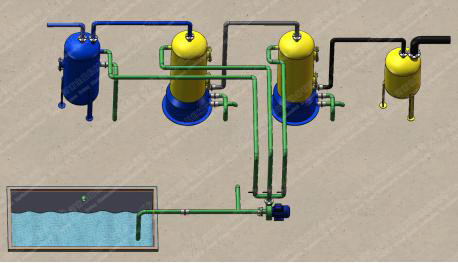

waste plastic and tyre pyrolysis plantWater circulating system

(3) Noise. The main noise from pyrolysis plant is draft fan, noise is <50db. So no noise pollution.

(4) Smell. If you burn waste tire directly will cause bad smell and make pollution to the environment., but our machine is totally sealed, no bad smell come out. So no smell pollution.

waste plastic and tyre pyrolysis plantDesulphurization and odor removal tower

Pyrolysis plant is no pollution and it can help you solve your countries’ waste tire pollution problems. Over than million tons of waste tires and plastic were disposed by our waste plastic and tyre pyrolysis plants yearly.



After-sales service of waste plastic and tyre pyrolysis plant

1. We will reply your inquiry at the first sight. If there are some troublesome problems beside me, the reply will get to you no more than 24 hours.

2. General plan of the project will be given within one day after we agree on the details and sign the contract.

3. You will receive the foundation layout within two days after you remit deposit.

4. The expert will be arranged for your factory to finish the installation as well as training your workers.

5. We will have periodical call visit, make sure no problem with your equipment or find the problem timely and solve it immediately.

6. We guarantee for you with lifelong maintenance at all times.



Benefit analysis of waste plastic and tyre pyrolysis plant

Profit analysis from Macedonia cutomer(10 tons capatity)
Cost for one batch
NO. Item Cost of each batch
1 10 tons of waste tire 10T*USD 42.5/t=USD 425
2 0.4 tons of coal 0.4T*USD 70/t=USD 28
3 Electricty and water 244 kwh*USD0.26=USD 63.44
4 Workers 4*USD 15=USD 60
5 Total cost USD 576.44
Income for one batch
1 Crude oil 4.5T*USD960=USD 4320
2 Steel wire 10T*15%*USD350/T=USD 525
3 Carbon black 3T*USD 20/T=USD 60
  Total income USD 4905
Profit
1 Daily profit USD 4328.56
2 Month profit 4328.56*25 days=USD 108214
3 Annual profit USD 108214*10 months=USD 1082140





Technical data of waste plastic and tyre pyrolysis plant

Technical parameter of waste plastic and tyre pyrolysis plant
No. Items Contents
1 Equipment type DY-1-6 DY-1-8 DY-1-10
2 Raw material Waste tyre Waste tyre Waste tyre
3 Structural form Horizontal rotation Horizontal rotation Horizontal rotation
4 24-hour Capacity 6 ton 8 ton 10 ton
5 Oil yield 2.7-3.3ton 3.6 -4.4ton 4.5 -5.5ton
6 Operating pressure Normal Normal Normal
7 Material of pyrolysis Reactor Q245R Q245R Q245R
8 Thickness of pyrolysis Reactor 16mm 16mm 16mm
9 Rotate speed of pyrolysis Reactor 0.4turn/minute 0.4turn/minute 0.4turn/minute
10 Total power 19KW 19KW 19KW
11 Mode of cooling Water cooling Water cooling Water cooling
12 Cooling area of condenser 100sqm 100sqm 100sqm
13 Kind of transmission Internal gear drive Internal gear drive Internal gear drive
14 Noise dB(A) ≤85 ≤85 ≤85
15 Size of Reactor(D×L) 2200×6000 2200×6600 2600×6600
16 Working form Intermittent operation Intermittent operation Intermittent operation
17 Delivery time 20days 20days 20days
18 Weight 27T 30T 35T

Prepared by customer about waste plastic and tyre pyrolysis plant
No. Item Consumption
1 Coal(for choice) 500kg/day
2 Wood(for choice) 800kg/day
3 Natural gas(for choice) 100-150kg/day
4 Oil(for choice) 300-350kg/day
5 Electricity 244kwh/day
6 Water(recycled) 60㎥ /month
7 Total power 19kw
8 Land area 35m*15m


Application of waste plastic and tyre pyrolysis plant

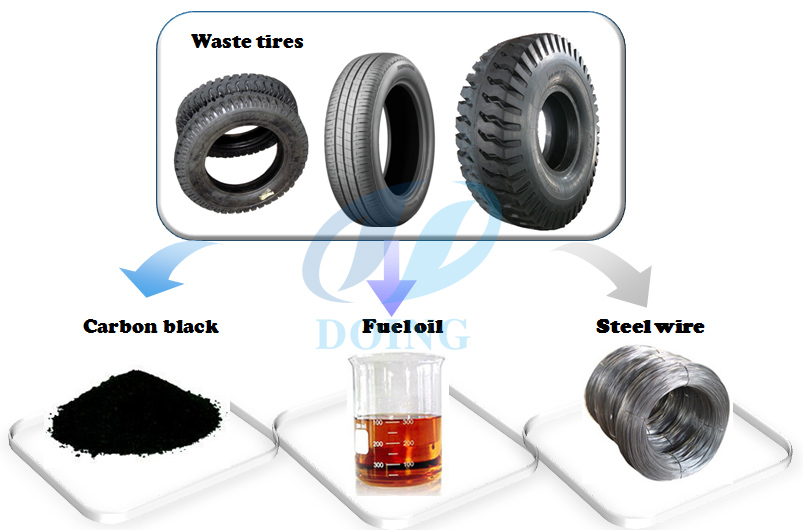

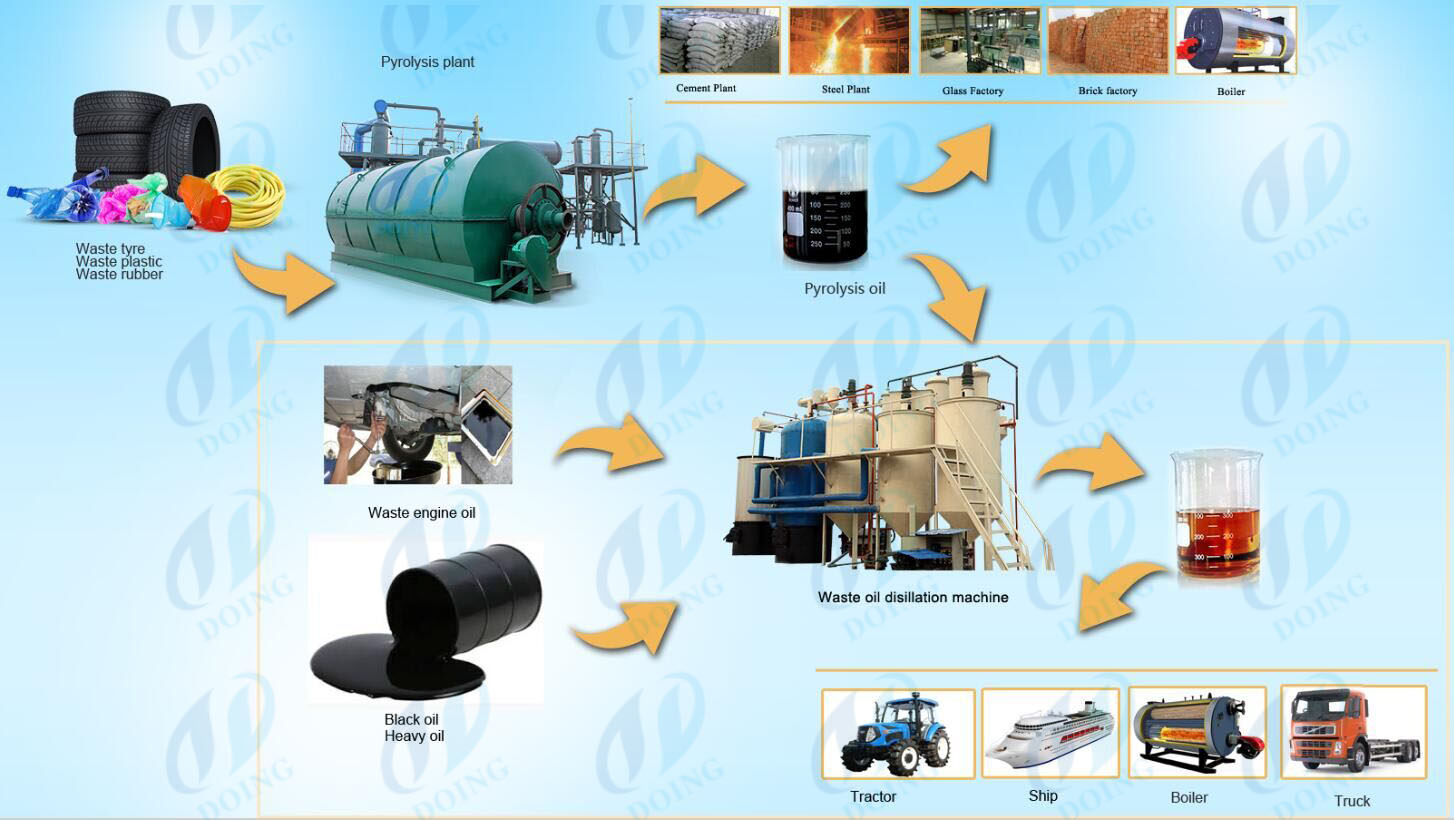

The tire pyrolysis oil, one kind of end products extracted from the pyrolysis process, is often used for producing heat, electricity, steam and so on. If this oil can be distilled by professional pyrolysis oil distillation plant, it can be used for vehicle. The final product from waste tyre/plastic pyrolysis plant is fuel oil, carbon black and steel wire. Fuel oil can be as fuel to heating, such as heavy industries, cement factory, steel milling factory, glass making factory, boiler factory etc. Diesel oil can be used for tractors, trucks, and diesel oil generators. Carbon black can sell to cement factory, also can pellet them to heating the machine.

Fuel Oil (45% to 52%)

waste tyre and plastic pyrolysis plant Fuel oil application

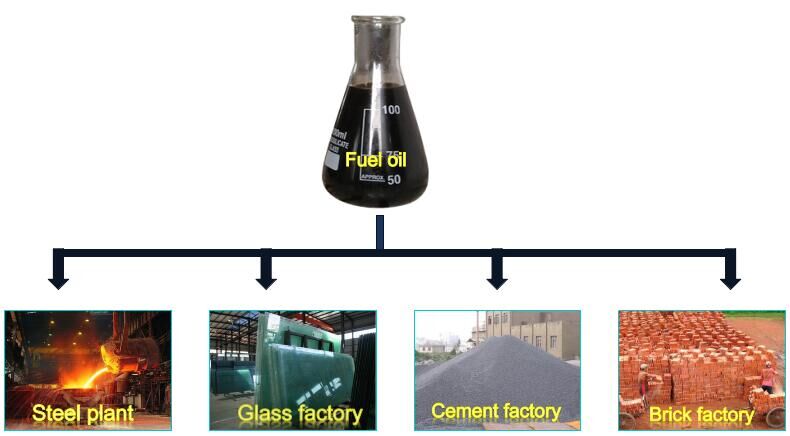

The main application of oil products produced by DOING waste plastic and tyre pyrolysis plant is the fuel oil that is wide used for industrial and commercial purposes. 45% to 52% oil of the amount of recycled scrap tyres can be carried with licensed tanker trucks.Such as power plant factory,glass factory,cement factory,boiler factory.

waste tyre and plastic pyrolysis plantFuel oil refined into diesel

After waste oil distillation plant, you can get diesel, which can be applied to tractors,trucks,ships etc. Certainly, this waste oil distillation project will bring in much considerable benefit for both society and economy, and change into new economic growth of industry recycling development.

Steel Wire (12% to 15%)

The third product of DOING waste plastic and tyre pyrolysis plant is steel wire, the quantity of steel wire is about 10% to 15% according to tyre quality. It is very easy to sell steel wire in local market.

Carbon Black (30% )

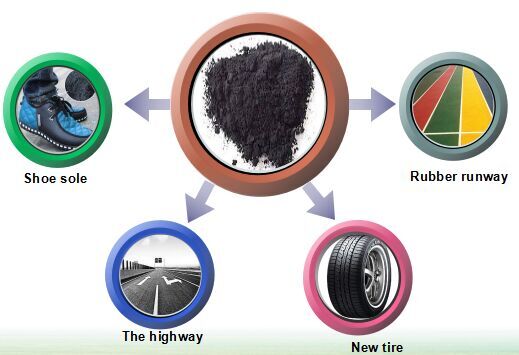

The second product of DOING waste plastic and tyre pyrolysis plant is carbon black. The quantity of carbon black is about 30% to 35% according to tyre quality. The use of carbon black is as a chemical strengthener in rubber and coloring agent in pigment industries. This carbon black price is very competitive compared to petroleum carbon black, so our pyrolysis carbon black is good option in stead of petroleum carbon black.

waste tyre and plastic pyrolysis plantCarbon black application

Oil gas (About 10%)

We get about 10% oil gas during pyrolysis process. The main component of this gases are methane (CH4), so we can not condense and store this gases. We use this gases to heat the reactor and we can use exceed gases for other heating application.
