Oil sludge pyrolysis plant is environmental friendly equipment to dispose of the oily sludge in a proper manner. It can separate water and sludge from oil and earn the oil in the sludge usable again.
Oil sludge comes from exploration, drilling, and refining of oil resource. During the crude oil extraction process, oil sludge are produced due to drilling, operation, workover, oil production, gathering, storage and other reasons and accidental leakage of equipment and pipelines; when processing oily sewage, a large number of oily waste residues are also produced in the sloping oil separator In addition, oil storage tanks also settle a large amount of sludge at the bottom of the tank. Oil fields produce a large amount of oil and soil every day, which accumulates over time. At present, these oil sludge are only collected, stored in the open air, and have not yet been effectively processed.
However, oil sludge contains plenty of oil, which is among the most pressures resources and will give a income opportunity. Therefore, we need to invest in a oil sludge pyrolysis plant.
DOING oil sludge pyrolysis plant
Our oil sludge pyrolysis plant adopts the most advaced sludge pyrolysis technology and is popular in many countries. DOING oil sludge pyrolysis plant include these main parts, such as screw feeder , reactor, buffer chamber, condensers, oil-water separator, water seal device, oil tank, deducting system, vacuum system, tail gas cleaning system, exhaust gas burner, thermometer, etc. Equipped with special machine to process all wastewater and exhaust, our oil sludge pyrolysis plant generates no pollution to environment. In addition, the oil sludge pyrolysis plant comes with pressure gauge, automatic warning device, which make certain that it is safe for use.

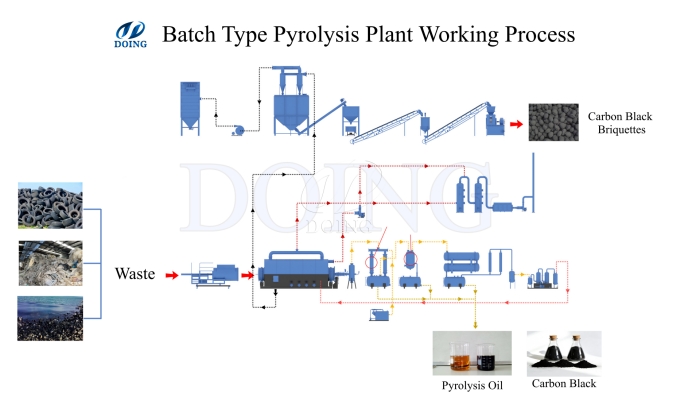

Next I will tell you how the oil sludge pyrolysis plant works:
It is highly beneficial to start a oil sludge pyrolysis plant, because not only high value oil can be got, but also you can get subsidies from oil sludge producers for this treatment. Meanwhile, If the oil sludge pyrolysis plant cost is low, the profit will be even greater. The cost of our oil sludge pyrolysis plant is always the most reasonable. In order to meet different requirements of customers, we have designed different capacity of oil sludge pyrolysis plant for sale. Here are the equipment technical parameters for your reference. Moreover, DOING can customize the oil sludge pyrolysis plant according to your conditions.
Technical parameters of DOING oil sludge pyrolysis plant:
|2||Raw material||Oil sludge||Oil sludge||Oil sludge||Oil sludge|
|3||Structural form||Horizontal rotation||Horizontal rotation||Horizontal rotation||Horizontal rotation|
|4||24-hour Capacity||6 ton||8 ton||10 ton||12 ton|
|6||Material of Reactor||Q245R||Q245R||Q245R||Q245R|
|7||Thickness of Reactor||14mm /16mm/18mm||14mm /16mm/18mm||14mm /16mm/18mm||14mm /16mm/18mm|
|8||Rotate speed of Reactor||0.4turn/minute||0.4turn/minute||0.4turn/minute||0.4turn/minute|
|10||Mode of cooling||Circulating water cooling||Circulating water cooling||Circulating water cooling||Circulating water cooling|
|11||Cooling area of condenser||104㎡||104㎡||104㎡||104㎡|
|13||Size of Reactor(D×L)||2200×6000||2200×6000||2600×6600||2800×6600|
|14||Working form||Intermittent operation||Intermittent operation||Intermittent operation||Intermittent operation|

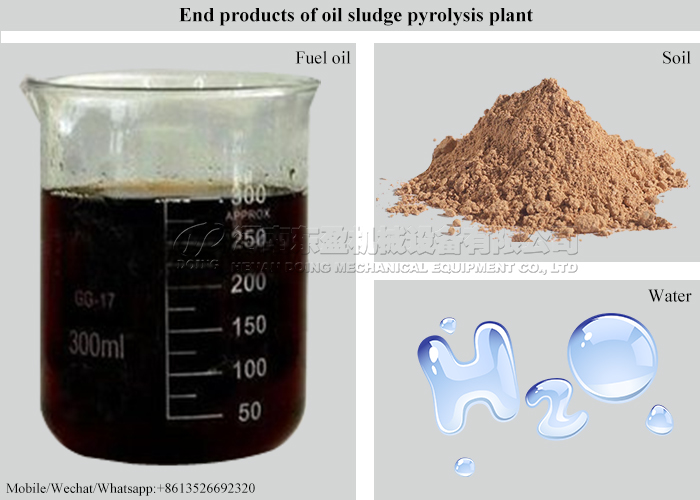

Through the oil sludge pyrolysis process, we can ger fuel oil, soil and water. But the ratio of these three products is uncertain, determined by your raw materials. In general, the oil content of oil sludge is 10-30%. The oil made from oil sludge is of high quality, so you can use it as fuel directly in steel factory, boiler heating, heavy oil generator, cement factory, etc. The soil produced is not much different from ordinary soil, and can be used directly for making bricks or paving.
The products made from oil sludge

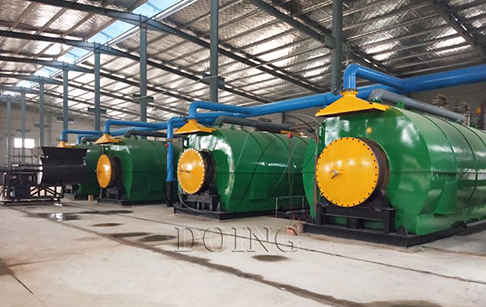

Apart from oil sludge, our oil sludge oil pyrolysis plant also can process waste tyre, waste rubber, waste plastic, etc. So far, DOING oil sludge oil pyrolysis plants have been exported to many countries, such as Venezuela, Saudi Arabia, Iran, Iraq, Kuwait, united Arab emirates, Russia and so on. Welcome to visit DOING factory, and we are looking forward to cooperating with you!
