Waste Plastic Pyrolysis Plant

Convert plastic waste to fuel oil machine

Along with the world economy progressing development, the oil resource scarce tendency has grown up day by day, enters into the 90's, the energy has become the primary factor that restricts various countries economy development. While, at the same time, energy waste can be seen everywhere. Seeking the new energy has become the various countries’ matter of concern. Henan Doing Group company is the leading domestic professional manufacturer in Convert plastic waste to fuel oil machine, waste tyre recycling eqipment, waste engine oil distillation machine. Our final principle is to clean the world and renew waste to energy, welcome all strategic friends join us!

plastic to oil machineConvert plastic waste to fuel oil machine

Convert plastic waste to fuel oil machine Along with the world economy progressing development, the oil resource scarce tendency has grown up day by day, enters into the 90's, the energy has become the primary factor that restricts various countries economy development. While, at the same time, energy waste can be seen everywhere. Seeking the new energy has become the various countries’ matter of concern. Henan Doing Group company is the leading domestic professional manufacturer in Convert plastic waste to fuel oil machine, waste tyre recycling eqipment, waste engine oil distillation machine. Our final principle is to clean the world and renew waste to energy, welcome all strategic friends join us!

convert plastic waste to fuel oil machineConvert plastic waste to fuel oil

DY-D2800mm*L6600mm

1. With the help of the auto-feeder, the reactor of convert plastic waste to fuel oil machine can to contain 12 tons crushed tire or 10 tons whole tyre.

2. I f the raw materil is waste plastic, it can contain even 12 tons if you use the right feeding way.

3. The diameter of the reactor feeding door is 1200mm.

4. After 2 hours' feeding time, it's time to heat the reactor by coal/wood/natural gas or fuel oil. Generally speaking, when the temperature reaches to 155 Celsius degrees around, the oil gas will generated.



Technical parameter of  convert plastic waste to fuel oil machine
  Items Contents
1 Equipment type DY-1-6 DY-1-8 DY-1-10
2 Raw material Waste plastic waste plastic waste plastic
3 Structural form Horizontal rotation Horizontal rotation Horizontal rotation
4 24-hour Capacity 6 ton 8 ton 10 ton
5 Oil yield 2.7-3.3ton 3.6 -4.4ton 4.5 -5.5ton
6 Operating pressure Normal Normal Normal
7 Material of Reactor Q245R Q245R Q245R
8 Thickness of Reactor 16mm 16mm 16mm
9 Rotate speed 0.4turn/minute 0.4turn/minute 0.4turn/minute
10 Total power 19KW 19KW 19KW
11 Mode of cooling Water cooling Water cooling Water cooling
12 Cooling area  100sqm 100sqm 100sqm
13 Kind of transmission Internal gear drive Internal gear drive Internal gear drive
14 Noise dB(A) ≤85 ≤85 ≤85
15 Size of Reactor(D×L) 2200×6000 2200×6600 2600×6600
16 Working form Intermittent operation Intermittent operation Intermittent operation
17 Delivery time 20days 20days 20days
18 Weight 27T 30T 35T

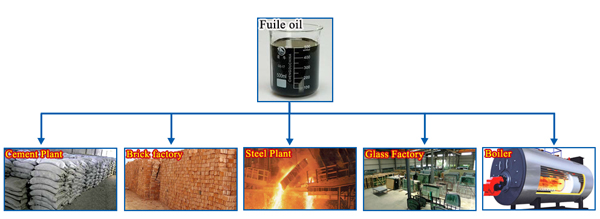

The applications of fuel oil:

This oil product is a kind of crude fuel oil, which can be used for industrial heating used in any fuel needed industrial factories, such as cement plant, steel mill, glass factory, brick factory, boiler used factory, etc.Or can be refined to diesel, directly used in diesel burners, generators, heavy trucks, agricultural machinery,and mix with normal diesel used for cars.

Convert plastic to fuel oil machineFuel oil applications

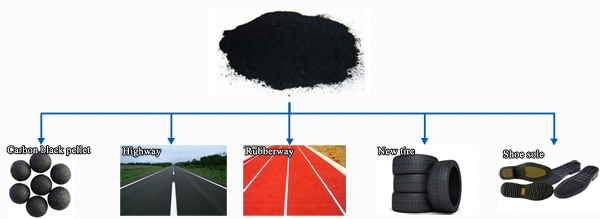

The applications of carbon black:

Carbon black produced from this Convert plastic waste to fuel oil machineis crude powdery material, which can be directly sold to cement factory mix with cement. Or made into briquettes used for heating, just like coal. Or grinded into fine powder used for making paint and printing ink.

Doing convert plastic waste to fuel machineCarbon black applications

Steel wire applications:

Scrap steel wire can be directly sold to iron recycling station or steel mill for further treatment. Now, more and more people know this project, and DOING GROUP Convert plastic waste to fuel oil machine used by waste tyre and plastic recycling companies with owned a good reputation around the world.
