Waste PCB board crusher machine

Our waste PCB board crusher machine (high voltage electrostatic separation type) adopts a process route that makes raw materials such as printed circuit boards to be a mixture of metal and resin fiber powder by dry crushing and pulverization and then separates the metals from the non-metal materials such as resin by high voltage electrostatic separator.

Features

pcb board recycling machine

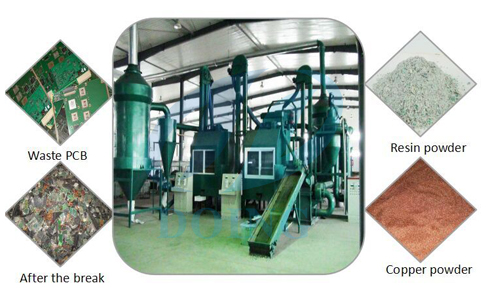

Waste pcb board crusher machine
Our waste PCB board crusher machine (high voltage electrostatic separation type) adopts a process route that makes raw materials such as printed circuit boards to be a mixture of metal and resin fiber powder by dry crushing and pulverization and then separates the metals from the non-metal materials such as resin by high voltage electrostatic separator. To avoid dust pollution in the process, the waste PCB board crusher machine also uses the three-in-one dust removal equipment independently developed by the company. This dust removal equipment has three-stage dust removal: cyclone dust removal, bag dust removal and dust removal by air cleaner. All of these effectively solve the problem of dust pollution with every index up to the national standard.

Waste PCB board crusher machine working process

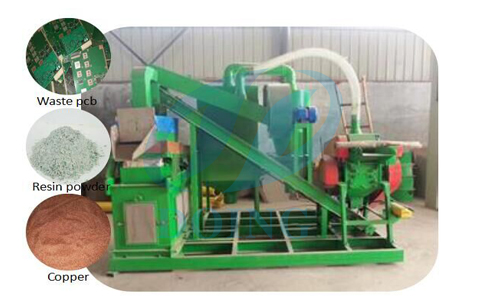

pcb board crusher machine

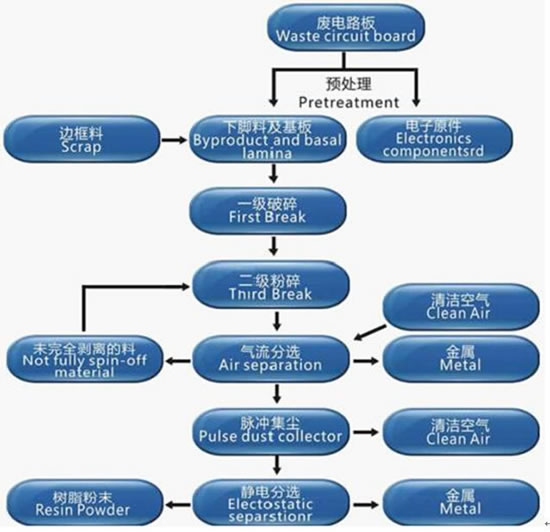

Waste PCB board crusher machine working process
 Two times mechanical pulverization makes PCB into the mixtures of metal and nonmetal powder. Through the air separation technology, realizing the metal and nonmetal complete separation and collection. The whole process can be realized in one production line, fully closed operation ensures not creating any pollution.

Technical Data

Waste PCB board crusher machine technical data

Item Model Capacity(kg/h) Power(Kw) Size (m)(L*W*H) Weight(T) Remark
1 DY-400 100-200 28.5 3.5×1.5×3.0 1.8
2 DY-600 300-500 36.5 4.0×1.7×3.0 3.0
3 DY-800 500-800 90.0 4.5×1.5×4.2 7.7 Doubling crushing system
4 DY-1000 800-1000 104.2 4.8×1.8×4.2 9.4 Doubling crushing system



Application

Waste PCB board crusher machine application
pcb board crusher machine

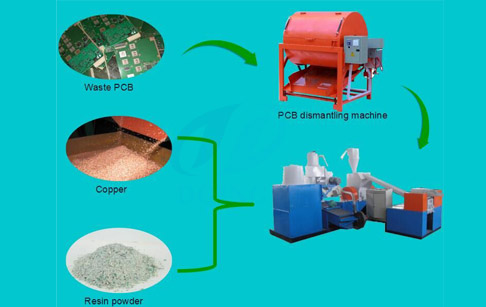

Waste PCB board crusher machine application
1. Waste printed circuit board with or without electronic components.
2. CCL( copper-clad plate)
3. scrap circuit boards
