Continuous Pyrolysis Plant

No pollution fully automatic waste tyre pyrolysis plant

No pollution fully automatic waste tyre pyrolysis plant adopts the latest pyrolysis technology.By using our automatic waste tyre pyrolysis plant, you can get tyre oil, carbon black and steel wire from waste tyres. The tyre oil can be widely used as fuel oil in industries such as steel and iron and boiler factories, ceramics, power or chemical industries or hotels, restaurants etc., or used for generators to get electricity.

For scrap tyre disposal,the most profitable method is pyrolysis.Doing fully automatic waste tyre pyrolysis plant adopts the latest pyrolysis technology.

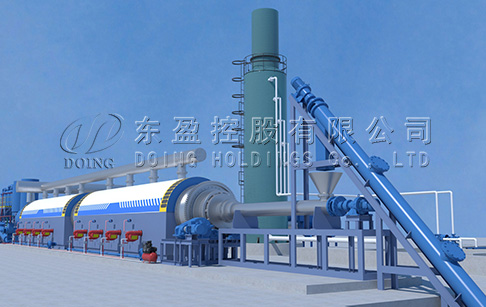

700-450阿里详情2.jpg3 D picture of fully automatic waste tyre pyrolysis plant

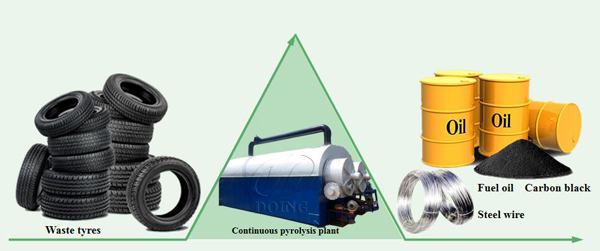

By using our automatic waste tyre pyrolysis plant, you can get tyre oil, carbon black and steel wire from waste tyres. The tyre oil can be widely used as fuel oil in industries such as steel and iron and boiler factories, ceramics, power or chemical industries or hotels, restaurants etc., or used for generators to get electricity. The carbon black can be used for construction bricks with clay or used as fuel. The steel wire can be recycled to produce new steel products. Besides, some combustible gas generated can be recycled to the reactor and act as fuel, which will save energy for the whole process.

fully automatic waste tyre pyrolysis plantNo pollution fully automatic waste tyre pyrolysis plant

Main differences between the batch waste tyre pyrolysis plant and fully automatic waste tyre pyrolysis plant:

(1) For the continuous system, the feeding of the raw materials and discharging of slag are both automatic, while for the batching system, the two processes are both manual.

(2) For the continuous system, the feeding hole is very small, so it needs shredder to cut the tyres into small pieces (30-50 mm), while the batching system does not need the pretreatment device.

(3) The continuous system can work continuously without a stop, while for the batching system, the reactor must be cooled before the second batch.

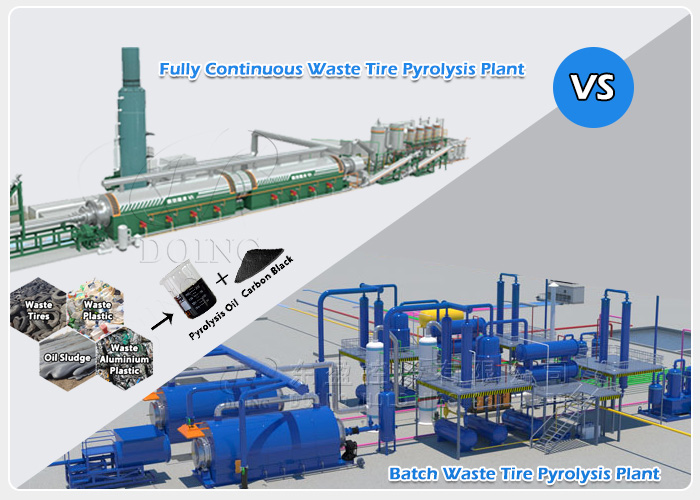

700-500炼油设备对比图.jpgDifferences batch and continuous pyrolysis plant

The advantages of no pollution fully automatic waste tyre pyrolysis plant:

  • 1. Fully automatic with low labour cost

Our No pollution fully automatic waste tyre pyrolysis plantis controled by PLC system with automatic feeding and discharge system, which only need 1-2 worker for operating the PLC or computer is ok.

  • 2. Fully pyrolysis for high oil output

Our No pollution fully automatic waste tyre pyrolysis plant adopts mutiple reactor design which can make fully pyrolysis of waste tires, thus to get high oil output.

  • 3. Big capacity

Also due to continuous feeding and discharge system, and unique mutiple reactor design, our fully automatic continuous waste tyre pyrolysis plant can process at least 10 tons waste tires per day, up to 100T/D.

  • 4. Internal rotating for conitnuous operation

For external rotating system, you have to change the sealing material every three days, thus cannot achieve the real sense of continuous process. But our continuous waste tyre pyrolysis reactor adopts internal rotating method, which no need to worry about the sealing of the external rotating system.

  • 5. Continuous working save time and energy

  • 6. Long working life

During the continuous pyrolysis process, reactor heating is by indirect hot air heating, which will not damage reactor so much, thus to keep long usage life of the reactors. And since the hard steel wire already removed from waste tires before pyrolysis processs, thus no damage for the reactor.



The technical data of no pollution fully automatic waste tyre pyrolysis plant:

No. Item Specifications
1 Model DY-C-10 DY-C-20 DY-C-30 DY-C-50 DY-C-60 DY-C-80 DY-C-100
2 Cpacity 10T/D 20T/D 30T/D 50T/D 60T/D 80T/D 100T/D
3 Power 35Kw 50Kw 65Kw 80Kw 90Kw 105Kw 120Kw
4 Working type Continuous
5 Reactor deisgn Mutiple reactors (The quantity and size depends on the raw material condition)
6 Rotating Internal rotating
7 Cooling system Recycled waster cooling
8 Reactor material Q245R/Q345R boiler plate
9 Heating method Indireact hot air heating
10 Heating fuel Fuel oil/gas
11 Feedstock Waste tire/plastic/rubber
12 Output Fuel oil, carbon black




The final product and application of no pollution fully automatic waste tyre pyrolysis plant:

NO Name Percentage Usage
1 Tyre fuel oil 45% 1.Can be sold directly
2.Can be as fuel
3.Can be used industrial and commercial purposes. Such as power plant factory,glass factory,cement factory,ceramic factory.
2 Carbon black 30% 1.Can be sold directly
2.Can be used electric cable jacketing,black nylon bag,rubber additive
3 Steel wire 15% 1.Can be sold directly
2.Make steel bloom by use hydraulic press-packing
4 Oil gas 10% 1.Can be as fuel burn by use gas burning system
2.Extra gas also be storage as fuel for other heating
