Waste Oil Distillation

. Pump waste oil into distillation reactor by oil pump. 2. Heat the reactor, and the liquid oil will slowly become oil gas, oil gas will go through catalytic chamber and condenser, then diesel will be cooled out first by controlling the temperature over 150 Celsius degrees. 3.The gasoline will be cooled out when the temperature is below 150 Celsius degrees, the rest of the system is same as pyrolysis system

Chat Online Leave A Message

crude oil distillation process

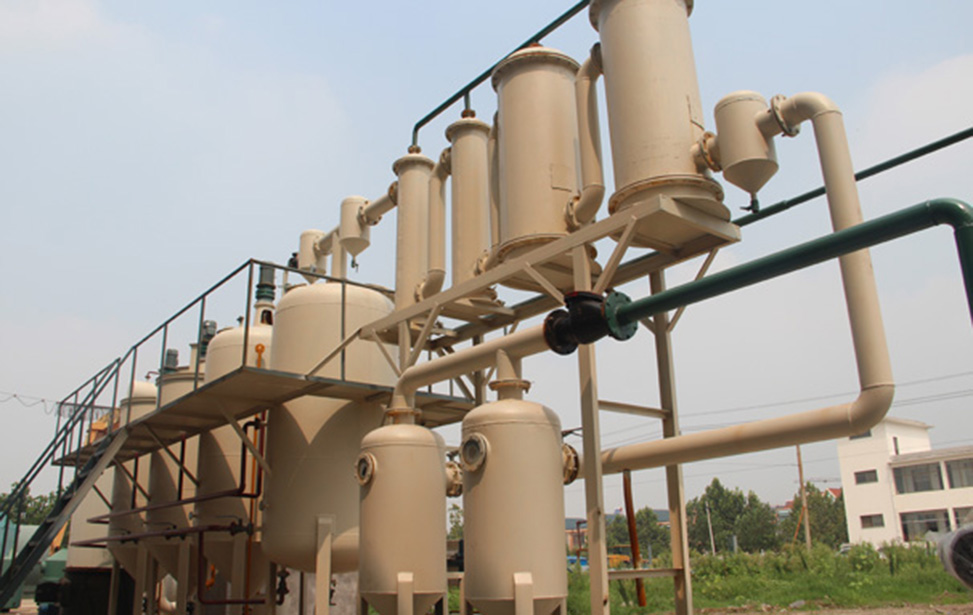

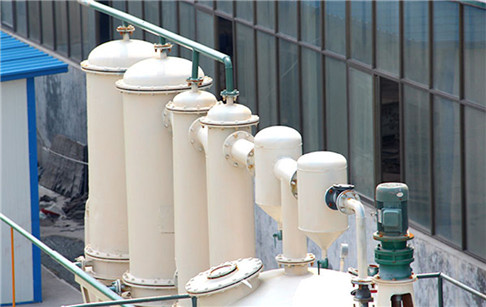

Crude oil distillation process plant

1. Pump waste oil into distillation reactor by oil pump.
2. Heat the reactor, and the liquid oil will slowly become oil gas, oil gas will go through catalytic chamber and condenser, then diesel will be cooled out first by controlling the temperature over 150 Celsius degrees.

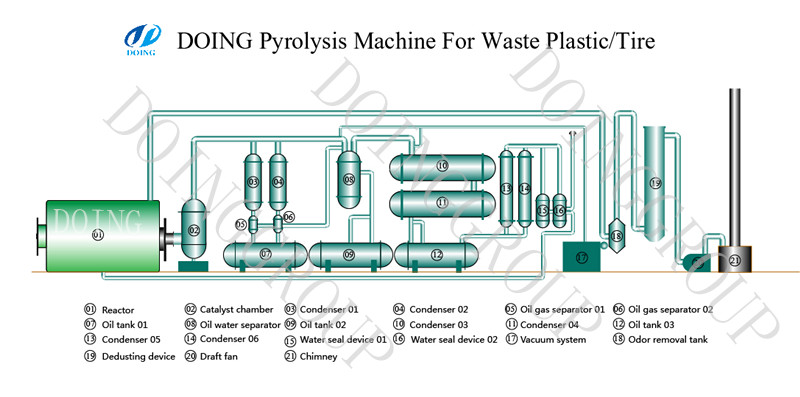

3.The gasoline will be cooled out when the temperature is below 150 Celsius degrees, the rest of the system is same as pyrolysis system.

Technical data of crude oil distillation process plant

Technical parameter of crude oil distillation process plant
Items	Contents
Model	DY-5t, DY-10t, DY-20t, DY-50t…
Raw material	rubber oil, waste tire crude oil, plastic crude oil
Structure form	Vertical (easy cleaning and maintenance)
Heating method	Indirect heating to prolong the machine service life
Operating pressure	Constant pressure
Heating material	Coal, charcoal, fuel gas, fuel oil
Average out-put oil rate	95%
Material of reactor	4 reactor with different material
Thickness of reactor	18mm
Mode of cooling	Recycled water cooling
Power in total	20 Kw
Service life	average 7 years
Land area	180㎡

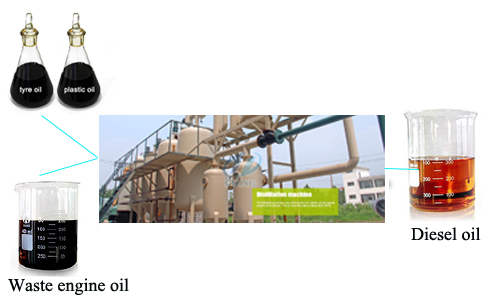

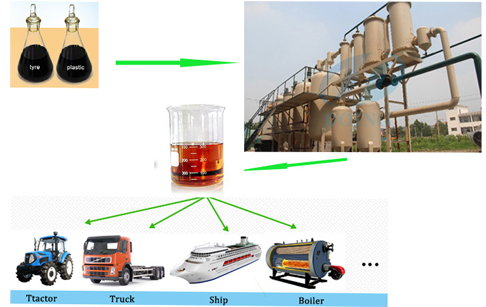

DOING waste crude oil distillation process can purify waste tire oil, plastic oil, waste engine oil, the final diesel can be used for tractors, trucks, and diesel oil generators, ships etc

.
