Waste Oil Distillation Plant

Waste oil distillation machine

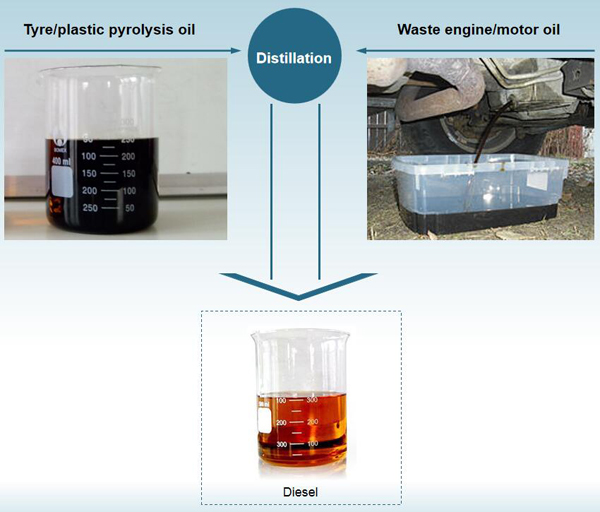

Waste oil distillation machine adopts distillation technology and can convert waste tire oil, plastic oil, waste engine oil, used motor oil into diesel fuel.

Waste oil distillation machine adopts the latest technology called refining or distillation. The waste oil distillation machine can be operated in normal pressure condition and vacuum pressure condition.

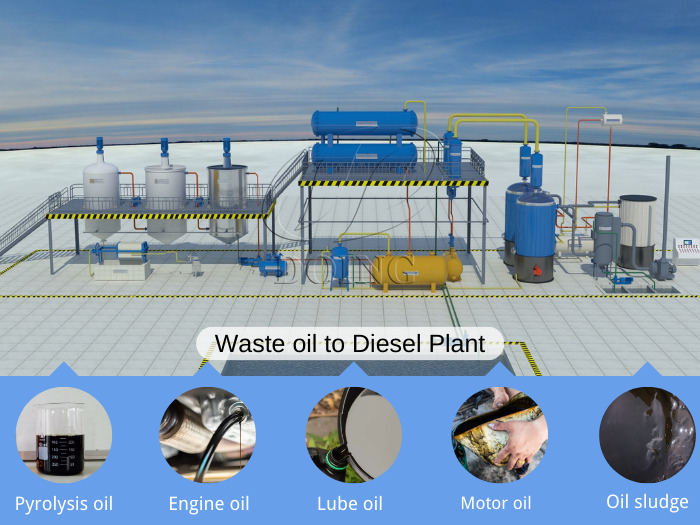

waste oil distillation machineWaste oil distillation machine 3D picture

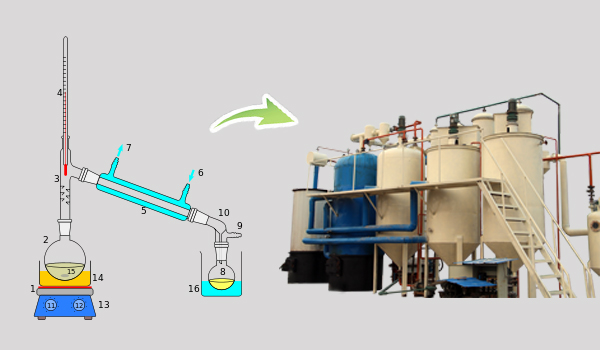

Distillation is the chemical engineering processes used in oil refineries to distills the incoming crude oil, pyrolysis oil and waste oil into useful products such as diesel oil and asphalt, etc.

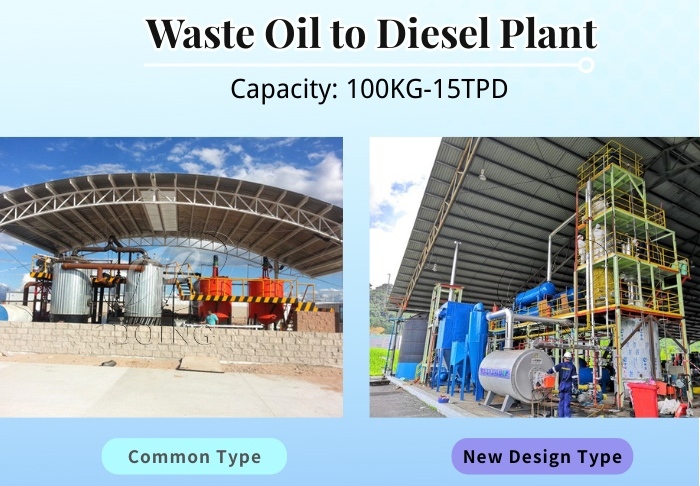

waste oil distillation machine typeWaste oil distillation machine for sale options

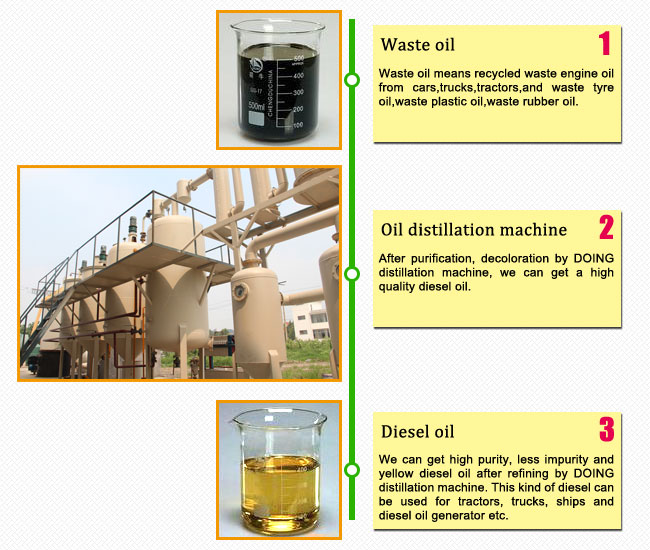

After you know about what is distillation, maybe you still don't know what is the waste oil distillation machine working process. In fact ,the waste oil distillation machine working principle is accoding to the above distillation principle, the specific working process of our waste oil distillation machine are as follows:

1. Prepare waste oil(waste plastic oil ,waste tire oil ,used motor oil ,used engine oil )

2. Heating for distillation

3. Cooling

4. Chemical process for cleaning the distillation oil

5. Collect final diesel product diesel and asphalt

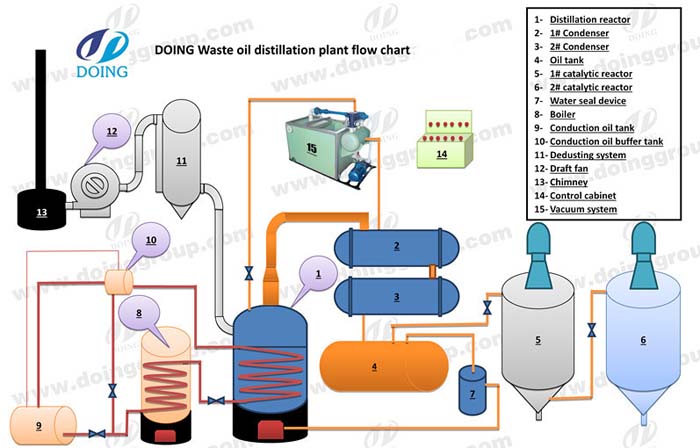

waste oil distillationWaste oil distillation machine working process

DOING 5T/D waste oil distillation machine is mainly composed of 4 reactors, cooling system, vacuum system, filtering system and de-dusting system. Our waste oil distillation machine can refine waste oil into diesel very efficiently, and at the moment it is the most energy-saving refinery equipment in the market. So what about the most energy-saving 5D/T waste oil distallation machine profits,we have made a chart for your reference:

ROI Analysis For 5T/D Waste Oil Distillation Machine
Running Cost / Day
                Waste engine oil                5Ton * 262USD/Ton = 1311USD
                Heating fuel (Diesel)                0.4Ton * 699USD = 280USD
                Catalyst                87USD
                Electricity                15Kw/h * 0.14*20h = 44USD
                Water                Water is for circulation use, no consumption
                Worker                2 * 15USD = 30USD
Income / Day
                Light oil (Diesel & Gasoline)                4Ton * 699USD = 2897USD
                Oil sludge                0.75Ton * 160USD = 120USD
Profit / Day1166USD

DOING waste oil distillation machine have below characteristics:

1. After 13+ years’ research and development, our distillation technology is already mature.

2. Can refine 3 kinds of oil--waste tire oil, plastic oil and waste motor oil.

3. The final oil can be directly used for diesel oil generator, trucks and vans, etc.

4. Indirect heating by boiler heating system can greatly increase the service life of our waste tire oil distillation machine.

 5. Three steps purifying process ensure final diesel pure and high quality

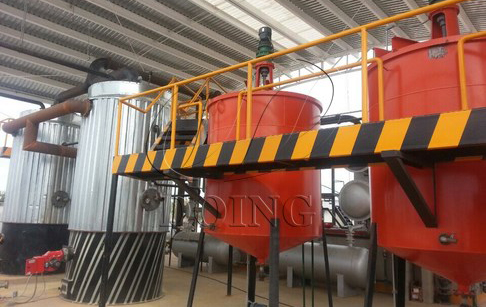

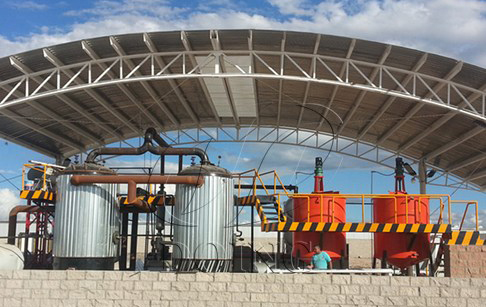

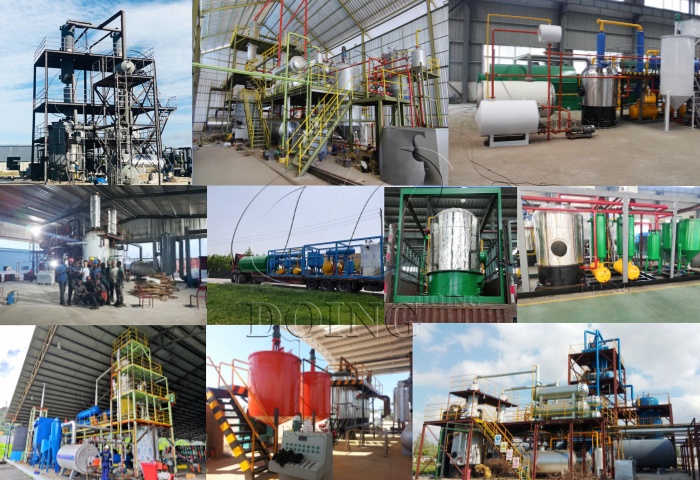

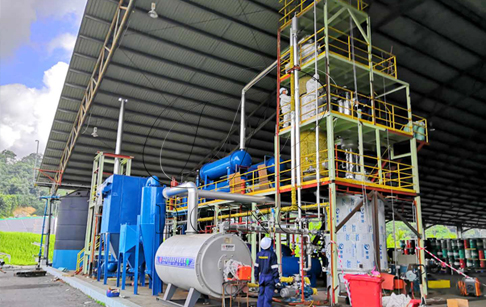

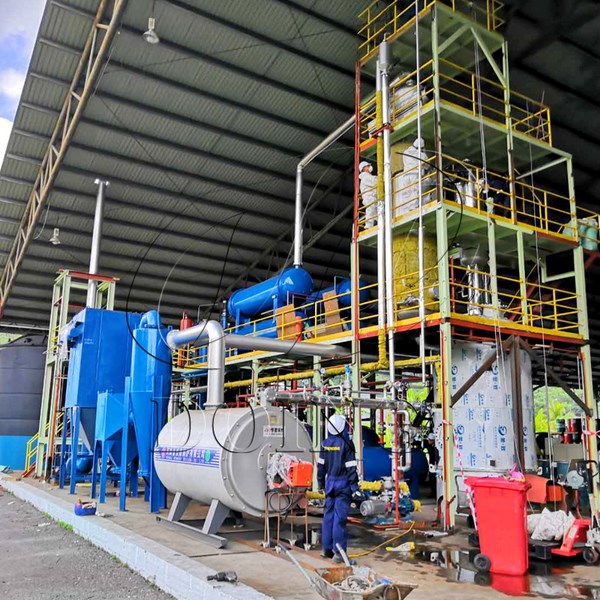

waste oil distillation machineDOING waste oil distillation machine installation sites pictures

Technical parameter of waste oil distillation machine

Items Contents
Model DY-D-1t, DY-D-2t, DY-D-5t, DY-D-10t, DY-D-14t…
Raw material Waste engine oil, used motor oil, waste tire plastic pyrolysis oil, crude oil
Structure form Vertical (easy cleaning and maintenance)
Heating method Indirect heating to prolong the machine service life
Operating pressure Constant pressure
Heating material Coal, charcoal, fuel gas, fuel oil
Average out-put oil rate 95%
Material of reactor Reactor with different material
Thickness of reactor 18mm
Mode of cooling Recycled water cooling
Power in total 20 Kw
Service life average 7 years
Land area 180㎡(depends on the capacity)

Diesel oil application:
The end diesel oil could be directly used instead of normal diesel in many area, like used in heavy machinery, farm machinery and generators, or directly used as clean heating fuel in many industries.

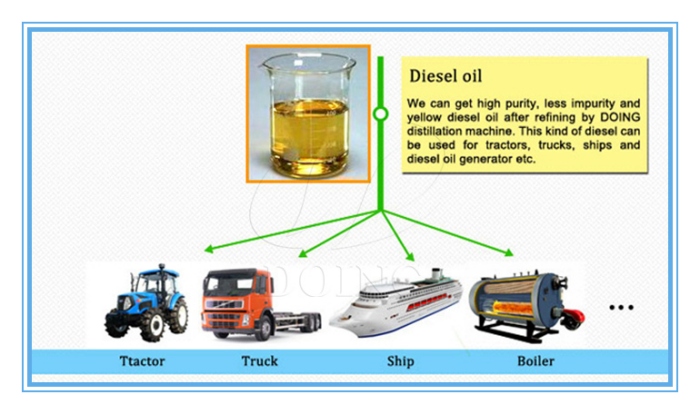

waste oil distillation machineWaste oil distillation machine final diesel applications

DOING waste oil distillation machine can purify waste tire oil, plastic oil, waste engine oil, used motor oil, etc. Welcome to contact us for more details.
