What equipment is needed for biochar pyrolysis?

Biochar pyrolysis requires specialized equipment to efficiently convert biomass into high-quality biochar. If you want to start a biochar pyrolysis business, it is crucial to understand the core components. The equipments are needed for biochar pyrolysis have Raw material preparation machine, pyrolysis reactor, gas handling equipment, cooling equipment, biochar processing equipment, control equipment. These equipments have the advantages of safety, environmental protection, and high efficiency, and can provide customized solutions for various production needs. Next, we will introduce you in detail the equipment required for DOING biomass to biochar pyrolysis process.

1. Raw material preparation equipment

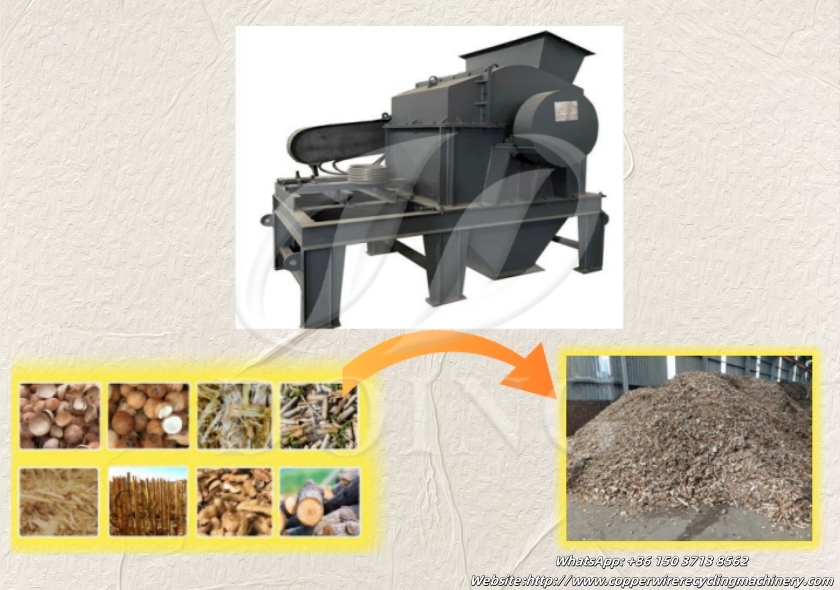

Raw material preparation equipment of biomass pyrolysis

Shredder: The preparation of high-quality biochar begins with precise raw material preparation. Generally, raw materials such as coconut shells, bamboo and palm shells can be equipped with Shredder to reduce large biomass materials into smaller pieces; while some small-particle raw materials such as wood chips and rice husks do not need to be equipped. In addition, DOING's shredder adopts a dual-axis system, which can quickly and accurately process various biomass materials. Its adjustable cutting blade can crush the raw materials to the optimal particle size (10-50 mm) to ensure the uniform pyrolysis of subsequent biochar.

Dryer: DOING's rotary dryer uses a multi-layer lifting plate structure to increase the contact area between the biomass and the hot air. Compared with traditional models, it improves heat transfer efficiency and shortens drying time. The temperature control range of this dryer is 80 - 180°C, which can handle high-moisture raw materials and reduce the moisture content to 8 - 12% required for pyrolysis.

2. Pyrolysis reactor (core component)

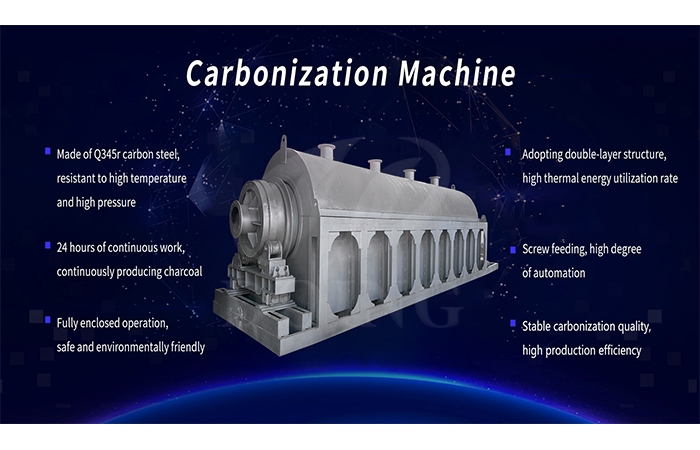

DOING biomass pyrolysis reactor

DOING's pyrolysis reactor is the core of its biochar production system and adopts a continuous operation mode to adapt to different production scales. The double-layer drum design, the inner drum completes the primary carbonization, and the outer drum achieves deep processing. Made of heat-resistant alloy steel or stainless steel, it can withstand high temperatures of 400 - 700°C for a long time. The internal spiral blade design ensures continuous mixing of biomass and promotes uniform heat distribution, thereby increasing the yield of biochar.

3. Gas treatment equipment

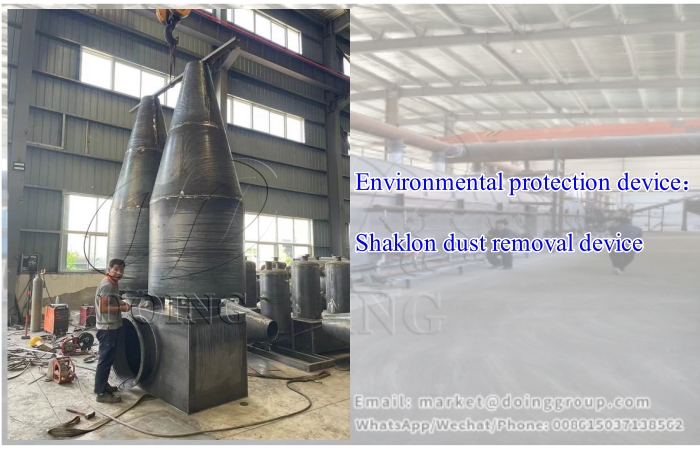

Shaklon dust removal device of DOING biochar pyrolysis equipment

The gas environmental protection device of DOING biochar pyrolysis equipment uses technologies such as activated carbon adsorption, catalytic combustion, and desulfurization and dust removal to achieve efficient exhaust gas purification. Its core includes a honeycomb activated carbon adsorption system (efficiency ≥ 95%), a catalytic combustion unit, and an alkali liquid desulfurization tower, with supporting pulse dust removal and sealed anti-leakage design, suitable for industrial-grade exhaust gas treatment.

4. Biochar cooling equipment

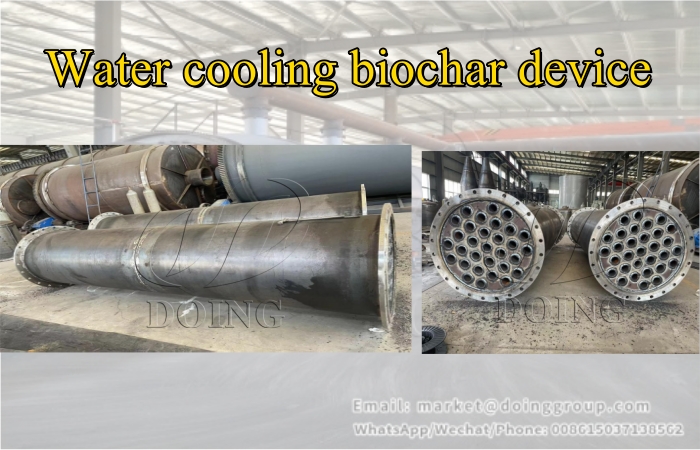

Water cooling device of DOING biochar pyrolysis equipment

The cooling equipment adopts a two-stage water cooling mechanism. First, air cooling is used to quickly reduce the temperature of biochar, and then water cooling is used for efficient cooling to prevent high-temperature spontaneous combustion of biochar and ensure the stability of biochar.

5. Biochar processing equipment

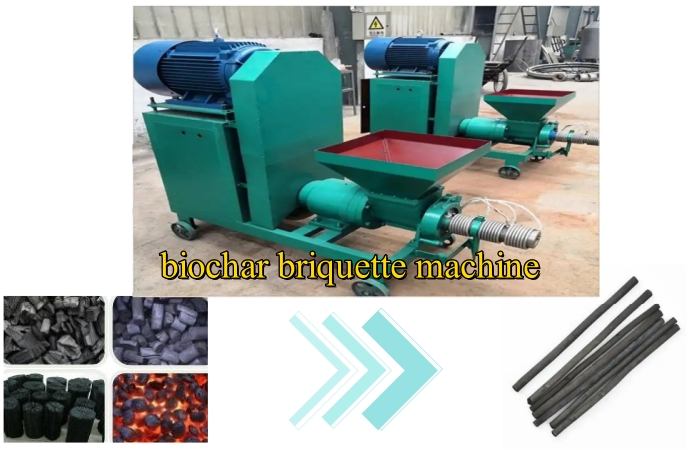

Biochar briquette equipment

DOING's biochar processing equipment ensures the quality and market competitiveness of the final product. DOING screening machines are equipped with high-precision vibrating screens to separate biochar particles into different sizes according to market demand. Biochar briquette machine can press biochar into various shapes for easy transportation and sale, which can be used as fuel, soil conditioner or in industrial fields. The packaging system adopts a fully automatic design, providing both small batch bagging and large-scale bulk options to ensure efficient and hygienic product delivery.

6. Control system

DOING biochar pyrolysis equipment

DOING biochar pyrolysis's control equipment is safe and accurate, and uses a PLC automation system to control all aspects of the biochar production process, from raw material input to biochar output. Operators can monitor the entire system through an intelligent interface, adjust parameters such as temperature and pressure, reduce labor costs and improve production efficiency.

DOING biochar pyrolysis equipment manufacturer

When choosing a biochar pyrolysis equipment, you need to consider your raw material type, the required production capacity (kg/hour or tons/day), and the final biochar specifications. Send us your needs. DOING provides a full range of services such as pre-sales site selection, on-site installation during sales, and after-sales remote technical training to help you quickly start your biochar pyrolysis business.
