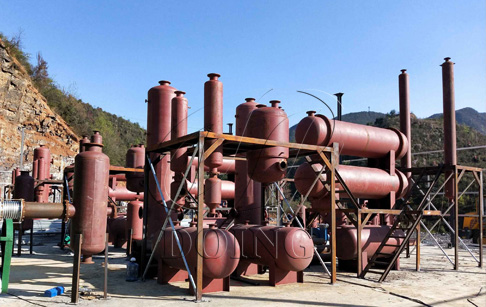

Waste tyre pyrolysis oil plant

The waste tyre pyrolysis oil plant can convert waste tyre/plastic/rubber to about 50% oil, 30% carbon black, 12% steel wire and a little combustible gas(about 8%)....

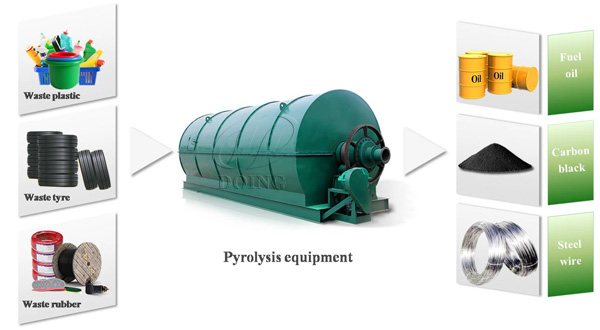

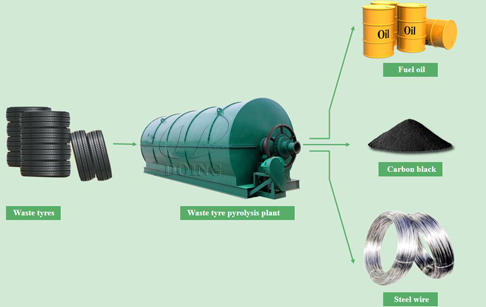

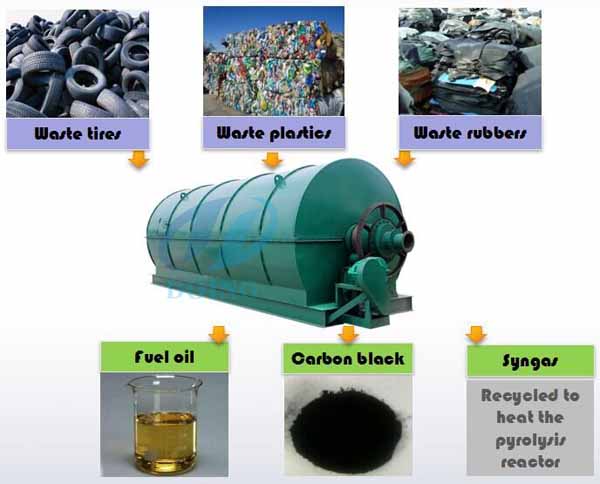

The waste tyre oil pyrolysis plant can convert waste tyre/plastic/rubber to oil(about 50%), carbon black(about 30%), steel wire(about 12%) and a little combustible gas(about 8%).

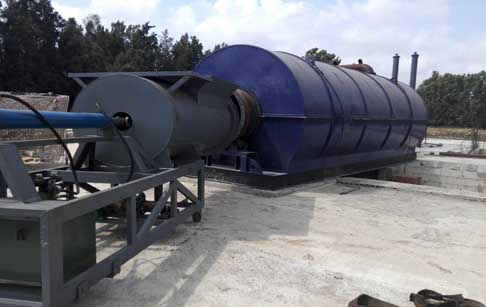

pyrolysis oil plantWaste tyre pyrolysis oil plant

There are two main reasons of the great demand of waste tyre pyrolysis oil plant. With the development of social modernization, on the one hand, the rubber industry has been vigorously developing, and the rubber products have been widely used in all works of life, especially in the tyre manufacture; On the other hand, more scrap articles, such as tyres, are generated and accumulated to such huge amount. Because of the erode-resistant characteristic of tyres, the big pollution hazard was posed to the environment and hygiene. People vividly described it as black pollution. So, DOING produced waste tyre oil pyrolysis plantbetter helps to solve two problems of waste tyres pollution and energy crisis.

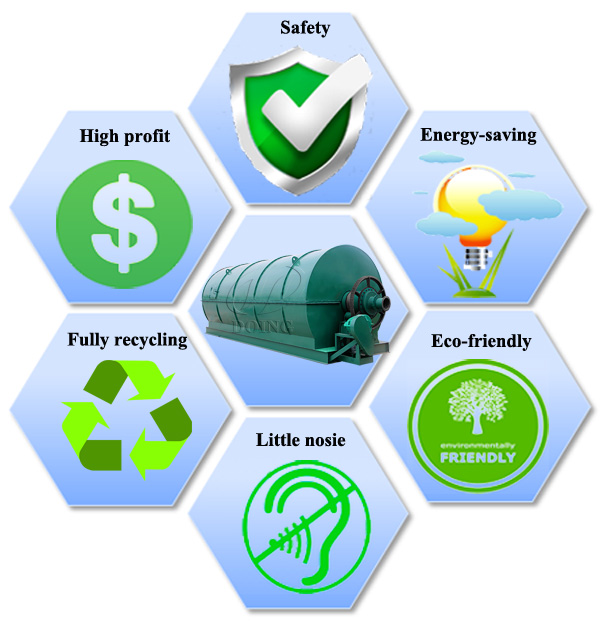

Waste tyre pyrolysis oil plant main advantages:

1. Safe. The waste tyre pyrolysis oil plant is equipped with mature safety devices, such as alarm for over temperature and pressure, auto pressure releasing system, extra gas recycling system and fire fighting device, which will guarantee 100% safety in the tyre to oil recycling process.

2. Energy-saving. By the extra gas recycling system, the gas that can not be condensed will be recycled to the burning room. It can replace the fuel material to heat the reactor, which will reduce additional fuel consumption.

3. Environment friendly. In the dedusting system, three steps (water spray, ceramic ring filter, washing chamber) are used to dedust the extra gas and more than 95% of the dust would be removed. The released gas is pollution-free and can be discharged into the air directly.

tyre to oil plantWaste tyre pyrolysis oil plant main advantages

Waste tyre pyrolysis oil plant technical data

No. Items Contents
1 Equipment type DY-1-6 DY-1-8 DY-1-10
2 Raw material Waste tyre Waste tyre Waste tyre
3 Structural form Horizontal rotation Horizontal rotation Horizontal rotation
4 24-hour Capacity 6 ton 8 ton 10 ton
5 Oil yield 2.7-3.3ton 3.6 -4.4ton 4.5 -5.5ton
6 Operating pressure Normal Normal Normal
7 Material of pyrolysis Reactor Q245R Q245R Q245R
8 Thickness of pyrolysis Reactor 16mm 16mm 16mm
9 Rotate speed of pyrolysis Reactor 0.4turn/minute 0.4turn/minute 0.4turn/minute
10 Total power 19KW 19KW 19KW
11 Mode of cooling Water cooling Water cooling Water cooling
12 Cooling area of condenser 100sqm 100sqm 100sqm
13 Kind of transmission Internal gear drive Internal gear drive Internal gear drive
14 Noise dB(A) ≤85 ≤85 ≤85
15 Size of Reactor(D×L) 2200×6000 2200×6600 2600×6600
16 Working form Intermittent operation Intermittent operation Intermittent operation
17 Delivery time 20days 20days 20days
18 Weight 27T 30T 35T



Prepared by customer about waste tyre pyrolysis oil plant

No. Item Consumption
1 Coal(for choice) 500kg/day
2 Wood(for choice) 800kg/day
3 Natural gas(for choice) 100-150kg/day
4 Oil(for choice) 300-350kg/day
5 Electricity 244kwh/day
6 Water(recycled) 60㎥ /month
7 Total power 19kw
8 Land area 35m*15m


Waste tyre pyrolysis oil plant final product and application

Those final products have a wide range of applications.

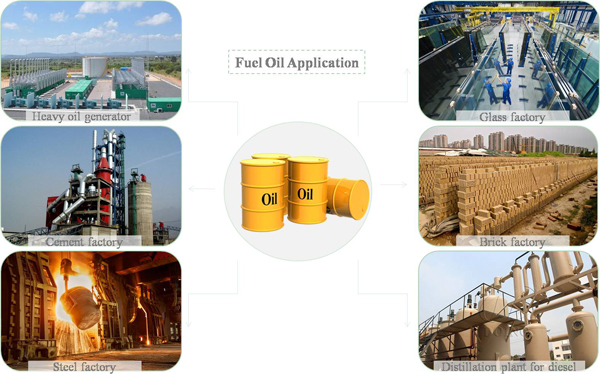

For the tyre pyrolysis oil, on the one hand, it can be sold directly or widely used as industrial fuel materials for burning. On the other hand, if further refined to diesel or gasoline by waste oil to diesel plant, it can be directly used in low speed engines such as digging machine, road roller or loading machine, etc.

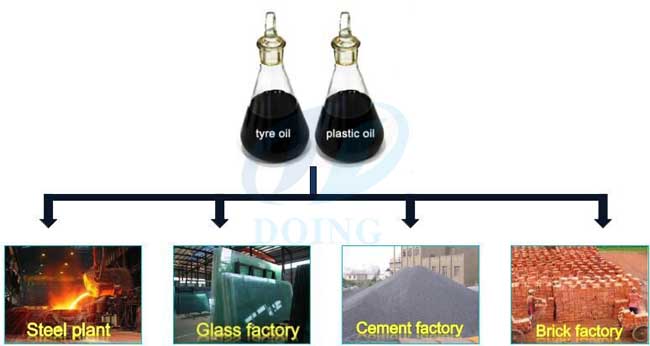

waste tyre to oil plantFuel oil application

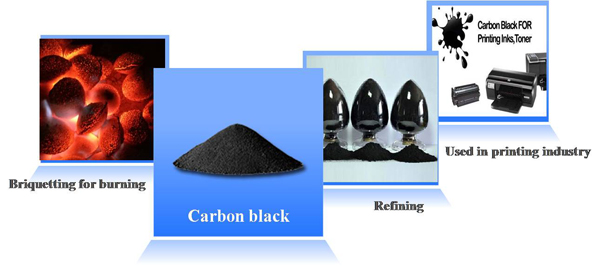

The Carbon black can be used for construction bricks with clay, also can be used as fuel. The steel wire can be recycled into smelting plant.

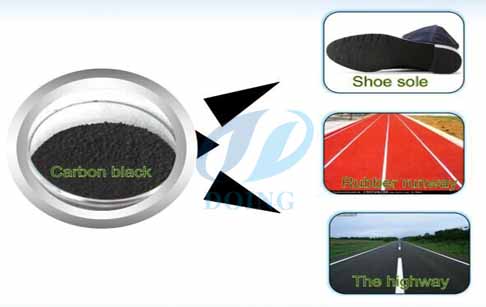

pyrolysis oil plantCarbon black application
