Waste tire recycling plant

Waste tire recycling plant is a process that uses high temperature cracking chemical reaction to convert waste tires into fuel oil, carbon black, steel wire and combustible gas. Waste tire recycling plant will not cause any pollution to the environment and quickly recover the investment cost.

07-23-2018 15:29:50

+86-135-2669-2320

oilmachine@wastetireoil.com

Send Message Chat online

Features
Technical Data
Application

Waste tires

China's automobile production and sales volume exceeds 18 million, and the problem of disposal of used tires is also becoming more and more serious. There are 300 million waste tires produced in China, and “black garbage” is no less harmful to the environment than “white garbage”.

Previously, the old recycling of waste tires has not kept pace with the development of the times. According to the data, “With the international energy situation, the soil refining prohibited by the Chinese government once occupied more than 90% of the domestic waste tire treatment market, resulting in an increase in domestic scrap tire prices.” DOING company’s technical staff introduced: the process of pyrolysis is very simple, the waste tires are put into the tank of the refining, and the tires are melted to produce steel wire and tire oil. It has huge profits, and the profit of one ton of waste tires can reach nearly 1,000RMB.However, the pollution of the environment during its production process is extremely serious. The old pyrolysis plant has seriously impacted the survival market of new environmentally friendly new products.

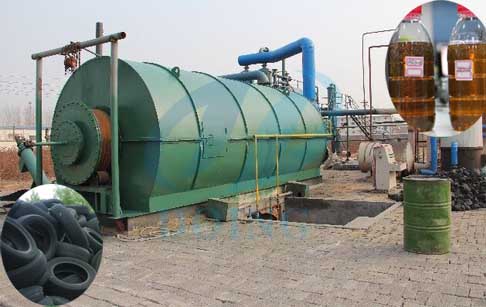

DOING waste tire recycling plant

With the continuous increase of domestic environmental protection efforts, strong support for the development of circular economy. “Many local governments have realized the huge hazards of waste tires and are formulating relevant support policies. DOING company’s waste tire recycling plant is in compliance with the environmental protection requirements of the national environmental protection department, and has CE and ISO certificates. Its working principle is: After the tires are cracked, the tires enter the system after preheating, and cracking reactions occur at normal pressure and low temperature. The waste tires are changed from “waste” to “valuable materials.” Waste tire recycling plant has almost 100% utilization of waste tires, and through the waste tire recycling plant, waste tires have become a resource that can be recycled.

The specific workflow of waste tire recycling plant is as follows:

DOING waste tire recycling plant working process

1. The waste tire is sent to the reaction vessel through an auto-feeder device, and the reaction vessel is heated.

2. The temperature rises to a certain extent and begins to crack out the oil and gas.

3. Heavy oil and oil enters the condensing system and is liquefied and falls into the tank.

4. Degrease and desulfurize the heavy oil in the tank, and finally get fuel.

5. The carbon black generated during the combustion process will be automatically discharged outside the furnace.

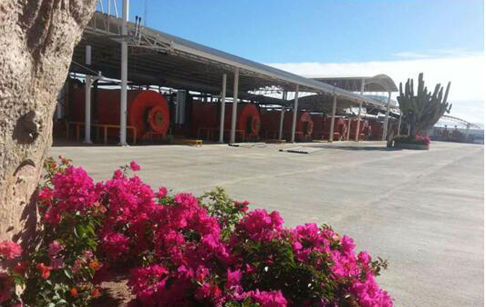

DOING company pyrolysis plant project cases

Henan DOING company has been exported to Asia: China, Lebanon, Bangladesh, Malaysia, Pakistan, India, Thailand, Jordan, Palestine, Saudi Arabia, Iran, Philippines
Africa: South Africa, Egypt, Nigeria, Congo, Uganda, Serbia, Senegal, Cameroon, Kenya, Liberia, Algeria, Ethiopia
Americas: Colombia, Panama, Mexico, Jamaica, Chile, Guatemala, Ecuador, Aruba, Haiti, Argentina, Canada
Europe: Waste tire recycling plant was installed in more than 50 countries and regions including Romania, Poland, Turkey, France, Albania and Georgia, and technical guidance was provided.

DOING company's waste tire recycling plant currently is hot at home and abroad. Various methods are used to consult the equipment by our customers. The number of customers requesting to visit the factory is numerous, and many customers have successfully obtained the local environmental assessment procedures after purchasing our equipment. Now is the market transition period of waste tire recycling plant, and the future market development prospects are considerable. Now is the best time for your investment!

Features
Technical Data
Application

Technical parameter of waste tire recycling plant
No.	Items	Contents
1	Equipment type	DY-1-6	DY-1-8	DY-1-10
2	Raw material	Waste tyres	Waste tyres	Waste tyres
3	Structural form	Horizontal rotation	Horizontal rotation	Horizontal rotation
4	24-hour Capacity	6 ton	8 ton	10 ton
5	Oil yield	2.7-3.3ton	3.6 -4.4ton	4.5 -5.5ton
6	Operating pressure	Normal	Normal	Normal
7	Material of pyrolysis Reactor	Q245R	Q245R	Q245R
8	Thickness of pyrolysis Reactor	16mm	16mm	16mm
9	Rotate speed of pyrolysis Reactor	0.4turn/minute	0.4turn/minute	0.4turn/minute
10	Total power	19KW	19KW	19KW
11	Mode of cooling	Water cooling	Water cooling	Water cooling
12	Cooling area of condenser	100sqm	100sqm	100sqm
13	Kind of transmission	Internal gear drive	Internal gear drive	Internal gear drive
14	Noise dB(A)	≤85	≤85	≤85
15	Size of Reactor(D×L)	2200×6000	2200×6600	2600×6600
16	Working form	Intermittent operation	Intermittent operation	Intermittent operation
17	Delivery time	20days	20days	20days
18	Weight	27T	30T	35T

Prepared by customer about waste tires recycling plant
No.	Item	Consumption
1	Coal(for choice)	500kg/day
2	Wood(for choice)	800kg/day
3	Natural gas(for choice)	100-150kg/day
4	Oil(for choice)	300-350kg/day
5	Electricity	244kwh/day
6	Water(recycled)	60㎥ /month
7	Total power	19kw
8	Land area	35m*15m

Features
Technical Data
Application

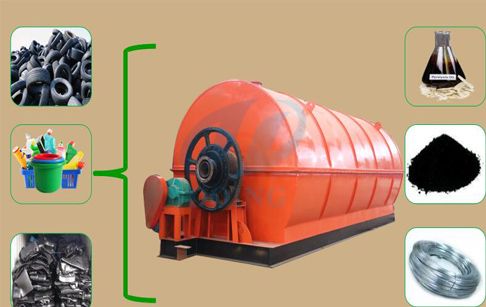

The waste tire recycling plant entire process does not cause any pollution to the environment, and we can get 45-50% fuel oil, 30% carbon black, 15% waste steel wire, 5% flammable gas. These substances have a very wide range of uses in life, and their specific uses are as follows:

Fuel oil application

1. Fuel oil: Fuel oil is widely used in marine boiler fuel, furnace fuel, metallurgical furnace and other industrial furnace fuels. Depending on the application, fuel oil can be classified into marine fuel oil and furnace fuel oil and other fuel oils. According to the statistics of the National Bureau of Statistics, China's fuel oil consumption is mainly concentrated in power generation, transportation, metallurgy, chemical, light industry and other industries.

Carbon black application

2. Carbon black: It is mainly used briquetting for burning, another application is refined powder. Among them, refined powder can be used for new tires, rubber soles and various paints.
3. Waste steel wire: mainly used for waste recycling or sent to steel mill for re-casting.
4. The combustible gas will be recycled by the equipment and reused for heating in the reactor.
