What are the main equipment of waste tire pyrolysis system？

Waste tire pyrolysis system can crack waste tires to get fuel oil by high temperature heating, which can be used in steel factories, cement factories, heavy oil machinery, generators and boiler heating, etc.

The main equipment of waste tire pyrolysis system include pyrolysis reactor system, oil and gas cooling system, environmental protection system(exhaust gas purification and odor removal system, flue gas desulfurization and purification system), carbon black collection system.

1)Pyrolysis reactor system

The reactor is the main engine and the most important part of the pyrolysis system. The manufacturing process of the reactor determines whether the pyrolysis system is safe, and whether the working efficiency is high. DOING reactor is designed with two pressure vessel heads in the inner tank, and the external thermal insulation is designed with an all-inclusive design, taking into account the characteristics of high safety performance and high thermal insulation effect.

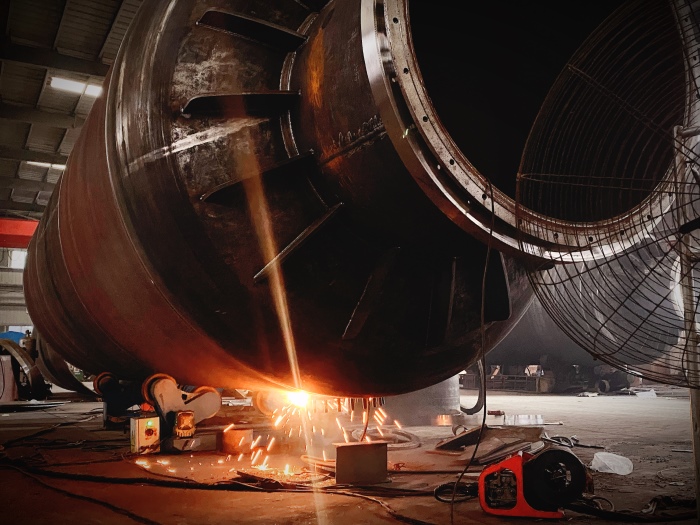

DOING pyrolysis reactor system

2)Oil and gas cooling system

When the waste tires are heated to a certain temperature in the reactor, oil and gas is produced. After condensation by the multi-stage oil and gas cooling system, the oil and gas are cooled into liquid oil and stored in the three-stage oil storage tank. DOING waste tire pyrolysis system adopts the 3-step oil and gas cooling system, which has industrial cooling effect to enhance the oil yield of the pyrolysis system.

3)Environmental protection system

A: Exhaust gas purification and odor removal system

After all the oil gas is cooled into liquid oil by DOING cooling system, the remained uncondensable gas will go through the DOING exhaust gas purification system to remove the hydrogen sulfide pollution gas contained in the tail gas, and then return to the reactor for heating.

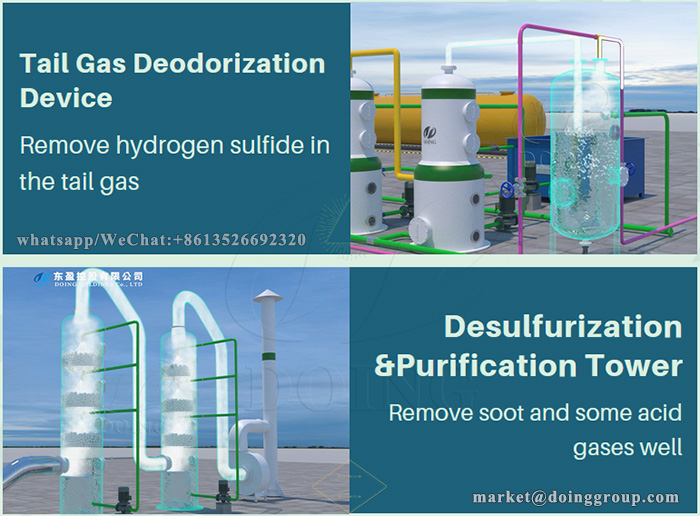

DOING equipped environmental protaction systems

B: Flue gas desulfurization and purification system

The smoke produced by burning this clean uncondensable gas will be collected into our desulfurization dedusting system along with the smoke produced by the burning of original fuel, then the emissioned gas can meet the emission standard of the chemical industry.

4)Carbon black collection system

When the whole pyrolysis is completed, the carbon black left in the reactor can be collected by the fully closed screw conveyor to ensure the cleanliness of the production site.

Quality certificates of DOING pyrolysis system

As a professional manufacturer of waste tire pyrolysis system, DOING is committed to improving the technology and process of waste tire pyrolysis system to meet customers' demands. If you have more questions about the waste tire pyrolysis system, please feel free to contact the DOING Professional Business Manager.
