Plastic waste recycling machine

The plastic waste recycling machine is a great recycling machine which is can be widely applied to large-scale, large-volume recycling of post-consumer, post-commercial, and post-industrial plastic scrap. Plastic waste recycling machine of Doing is can convert waaste plastic to fuel oil anc carbon black.

11-19-2020 13:35:50

+86-135-2669-2320

oilmachine@wastetireoil.com

Send Message Chat online

Features
Technical Data
Application

Waste plastic recycling

Nowadays, many people advocate the “Green” living, which is approved many people. So it is better to shred, melt and repurpose all these plastic materials instead of throwing away the waste plastic to pollute the environment. Therefore, Doing company makes great efforts to develop and manufacture the useful plastic waste recycling machines, which is very popular after it comes into being. The plastic waste recycling machine is a great recycling machine which is can be widely applied to large-scale, large-volume recycling of post-consumer, post-commercial, and post-industrial plastic scrap. Plastic waste recycling machine of Doing is can convert waaste plastic to fuel oil anc carbon black.

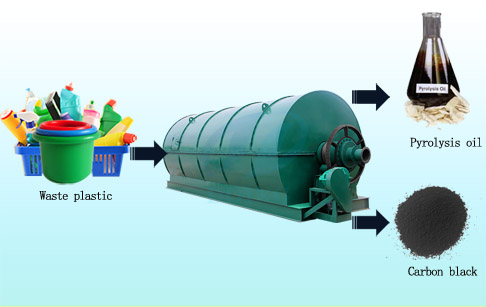

Plastic waste recycling machine

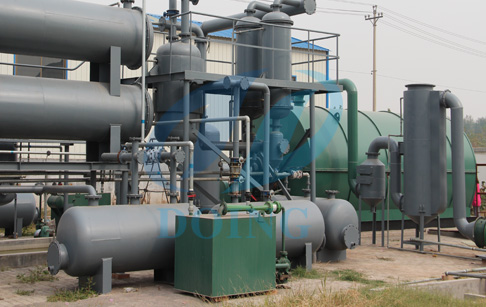

Plastic waste recycling machine working process

Plastic waste recycling machine working process

1. Put raw material into reactor by full-automatic feeding machine. The reactor is supposed to be left 1/3 space for rotating more smoothly. Then make sure the door of feeding machine is closed.

2. Reactor will be gently heated by burning the fuel material (coal, wood, natural gas, LPG or tire oil generated from last batch). The oil gas will be released when the temperature reached 100℃ (250-280℃ is the top output rate interval). Heavy oil gas separated by manifold is supposed to be liquefied and drop down into the heavy oil tank. The lighter gas will rise up to the oil condensers, be liquefied into oil and stored in the oil tank. The incondensable gas through dusulphuration and dedusting by hydroseal will be led to the furnace for recycling.

3. After all the above work has been done, cool down the reactor. Then the carbon black will be discharged automatically.

4.There possibly will be a little exhaust gas left, and you should not expel it until it has reached the emission standard.

Features
Technical Data
Application

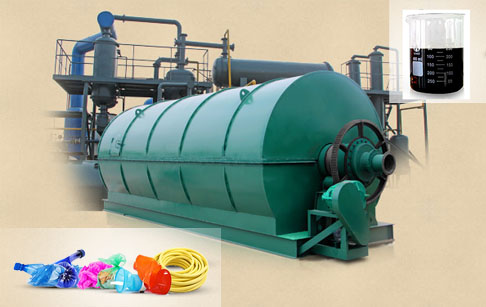

Technical data of plastic waste recycling machine

Technical parameter of plastic waste reycling machine
No.	Items	Contents
1	Equipment type	DY-1-6	DY-1-8	DY-1-10
2	Raw material	Waste plastic	Waste plastic	Waste plastic
3	Structural form	Horizontal rotation	Horizontal rotation	Horizontal rotation
4	24-hour Capacity	6 ton	8 ton	10 ton
5	Oil yield	2.7-3.3ton	3.6 -4.4ton	4.5 -5.5ton
6	Operating pressure	Normal	Normal	Normal
7	Material of pyrolysis Reactor	Q245R	Q245R	Q245R
8	Thickness of pyrolysis Reactor	16mm	16mm	16mm
9	Rotate speed of pyrolysis Reactor	0.4turn/minute	0.4turn/minute	0.4turn/minute
10	Total power	19KW	19KW	19KW
11	Mode of cooling	Water cooling	Water cooling	Water cooling
12	Cooling area of condenser	100sqm	100sqm	100sqm
13	Kind of transmission	Internal gear drive	Internal gear drive	Internal gear drive
14	Noise dB(A)	≤85	≤85	≤85
15	Size of Reactor(D×L)	2200×6000	2200×6600	2600×6600
16	Working form	Intermittent operation	Intermittent operation	Intermittent operation
17	Delivery time	20days	20days	20days
18	Weight	27T	30T	35T

Prepared by customer about plastic waste recycling machine
No.	Item	Consumption
1	Coal(for choice)	500kg/day
2	Wood(for choice)	800kg/day
3	Natural gas(for choice)	100-150kg/day
4	Oil(for choice)	300-350kg/day
5	Electricity	244kwh/day
6	Water(recycled)	60㎥ /month
7	Total power	19kw
8	Land area	35m*15m

Features
Technical Data
Application

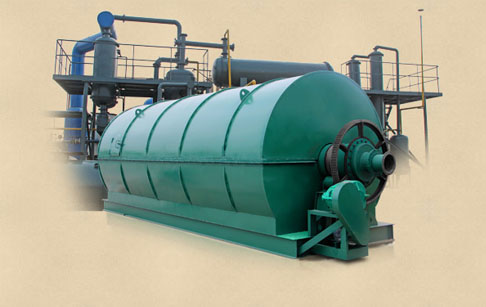

Application of plastic waste recycling machine

Application of plastic waste recycling machine

Fuel oil from plastic waste recycling machine are used in below industries

A.power plant factory
B.glass factory
C.cement factory
D.ceramic factory
E.aluminum factory
F.boiler factory
G.central heating factory
H.painting factory
