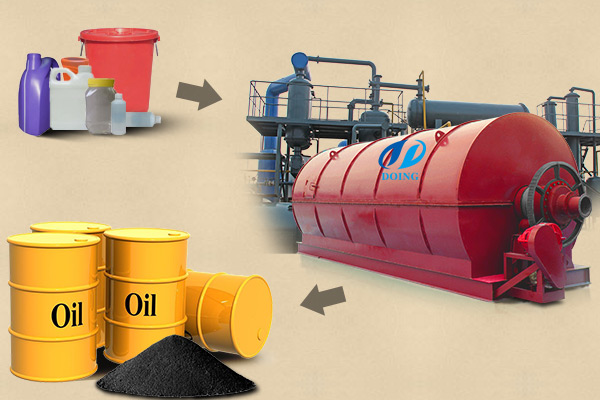

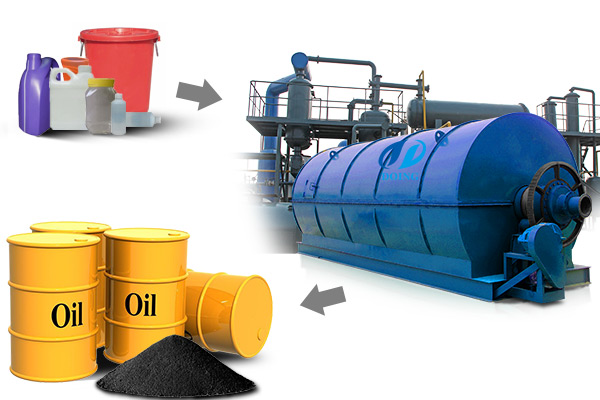

Pyrolysis plant is mainly to convert the waste plastic or tyre into crude oil for fuel.Recently years the technology pyrolysis plant is consistently developing.From the plant to the final product of the pyrolysis plant. Many aspects of the pyrolysis plant are advancing. We henan doing mechanical equipment co,ltd made many innovations of the pyrolysis plants. pyrolysis plant is fast developing under the time of sustainable development. And the pyrolysis technology will surely be popular in the future.

Ms. Bonnie Zhao
+86-371-5677 1821
+86 158 9380 0169
Skype:bonniezhao2
oilmachine@doinggroup.com

Chat Online Leave A Message

First we need professional technicians to install the plant. The new designed auto-feeding system will put the material into the reactor automatically. Thus will improve the efficient and make the reactor safer. With auto feeding, The indirect heat system will prevent the reactor from blast and will enlarge the area of heating.
When we burn the reactor we will use wood,coal,or oil gas. the heat fuel is only used on start-up to heat the reactor, wnen the reactor can generate oil gas. our pyrolysis plant will be heated with its own oil gas. That means just little energy is required to heat the reacor.
the oil gas will go into the condenser. The condenser is used to cool the oil gas into liquid. Inside the condenser there are 57 cooling pipes with diameter 48mm each inside the condenser,which means the cooling area of each condenser is 13 m². Take the 10T capacity for example, there are 5 condensers ,so the total cooling area can reach 65 M² Therefor the oil yield rate is guaranteed.Then there are two horizontal condensers for our 5^th generation pyrolysis machine. its inner structure is similar with that of vertical condenser.however,the cooling area of one horizontal condenser can be equal to more than three vertical condensers. And also,the cooling way is longer than vertical condenser.In this way,there will be a better oil output.

Technical Data

Technical parameter of 5th generation waste plastic/tyre to oil pyrolysis plant
	Items	Contents
1	Equipment type	DY-1-6	DY-1-8	DY-1-10
2	Raw material	Waste tyre	Waste tyre	Waste tyre
3	Structural form	Horizontal rotation	Horizontal rotation	Horizontal rotation
4	24-hour Capacity	6 ton	8 ton	10 ton
5	Oil yield	2.7-3.3ton	3.6 -4.4ton	4.5 -5.5ton
6	Operating pressure	Normal	Normal	Normal
7	Material of pyrolysis Reactor	Q245R	Q245R	Q245R
8	Thickness of pyrolysis Reactor	16mm	16mm	16mm
9	Rotate speed of pyrolysis Reactor	0.4turn/minute	0.4turn/minute	0.4turn/minute
10	Total power	19KW	19KW	19KW
11	Mode of cooling	Water cooling	Water cooling	Water cooling
12	Cooling area of condenser	100sqm	100sqm	100sqm
13	Kind of transmission	Internal gear drive	Internal gear drive	Internal gear drive
14	Noise dB(A)	≤85	≤85	≤85
15	Size of Reactor(D×L)	2200×6000	2200×6600	2600×6600
16	Working form	Intermittent operation	Intermittent operation	Intermittent operation
17	Delivery time	20days	20days	20days
18	Weight	27T	30T	35T

Technical parameter of waste plastic /tyre to oil pyrolysis plant
	Items	Contents
1	Equipment type	DY-1-6
2	Raw material	waste tyre/waste plastic
3	Structural form	Horizontal rotation
4	24-hour Capacity	6 ton
5	Oil yield	2.7-3.3ton
6	Operating pressure	Normal
7	Material of pyrolysis Reactor	Q245R
8	Thickness of pyrolysis Reactor	16mm
9	Rotate speed of pyrolysis Reactor	0.4turn/minute
10	Total power	19KW
11	Mode of cooling	Water cooling
12	Cooling area of condenser	100sqm
13	Kind of transmission	Internal gear drive
14	Noise dB(A)	≤85
15	Size of Reactor(D×L)	2200×6000
16	Working form	Intermittent operation
17	Delivery time	20days
18	Weight	27T

The waste plasic/tyre to oil pyrolysis plant is used to convert the waste tyre into fuel oil,it is good machine to deal with the waste tyres,waste plastics.
The pyrolysis oil extracted from waste tyre pyrolysis plant is mainly used in glass factory,cement factory,steel factory etc.

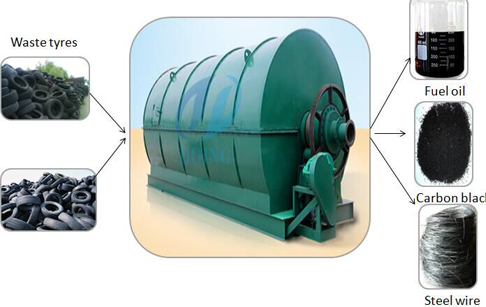

Application

The waste plastic /tyre to oil pyrolysis plant application

Fuel Oil (45% to 52%)
The main application of oil products produced by our waste plastic /tire to oil pyrolysis plant is the fuel oil that is wide used for industrial and commercial purposes. Such as power plant factory,glass factory,cement factory,ceramic fatory.

Exhaust gas (About 10%)
We get about 10% pyrolytic gases during pyrolysis process. The main component of this gases are methane (CH4), so we can not condense and store this gases. We use this gases to heat the reactor and we can use exceed gases for other heating application.

Steel Wire (12% to 15%)
The third product ofwaste plastic /tire to oil pyrolysis plant is steel wire, the quantity of steel wire is about 10% to 15% according to tyre quality. It is very easy to sell steel wire scrape in local market.

Carbon Black (30%)
