Advanced design waste plastic disposal machine

Advanced design waste plastic disposal machine is an industry that converts waste plastic and other waste materials into Pyrolysis Oil, Carbon Black & Hydrocarbon Gas. The advanced design waste plastic disposal machine can reduce the volumes of the waste products and help human protect the environment.

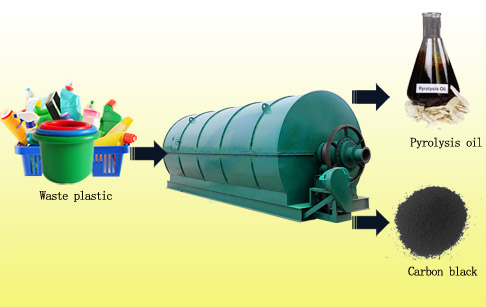

waste plastic disposal pyrolysis machineWaste plastic materials for disposal pyrolysis

Plastic products has been used widely, and waste plastic can be seen everywhere. It has seriously affected our environment on two aspects, such as visual pollution and potential hazards. Visual pollution means that aesthetic perception on living city affected by scrap plastic in everywhere. Potential hazards mainly refers to degradation-resistant of waste plastic affecting on absorbing of nutrients and water by crop, reducing the production; and otherwise, animals will be die if eats it unconscious. Recycling and utilization of waste plastic is increasingly becoming an important aspect for environmental protection. Advanced design waste plastic disposal machine has supplied a new solution on disposal of waste plastic.

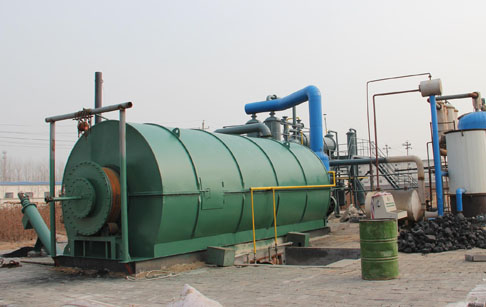

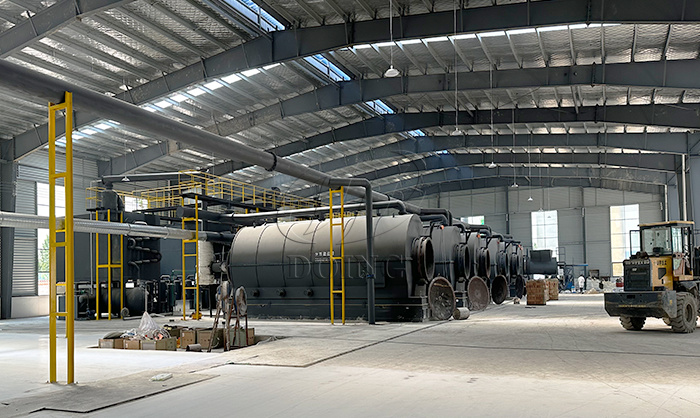

waste plastic disposal pyrolysis machineAdvanced design waste plastic disposal pyrolysis machine

Advanced design waste plastic disposal machine is an industry that converts waste plastic and other waste materials into Pyrolysis Oil, Carbon Black & Hydrocarbon Gas. The advanced design waste plastic disposal machine can reduce the volumes of the waste products and help human protect the environment. And the plastic has been one of the most common materials since the beginning of 20th century because of its durability, low cost and light weight. Plastic makes up around 30% of all rubbish collected. This includes various plastic composite materials, containers, plastic wrap, packaging, electronic goods, car body parts, etc.

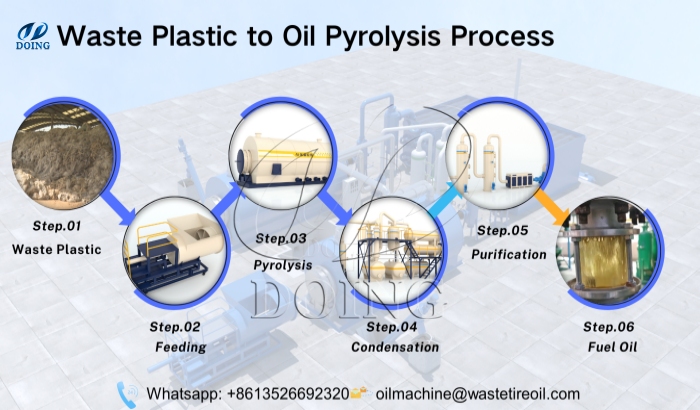

Advanced design waste plastic disposal machine working process

waste plastic to oil disposal working processAdvanced design waste plastic disposal machine working process

The pyrolysis process and principle of waste plastic disposal machine:

Firstly, put the waste plastic raw material into pyrolysis furnace.

Secondly, burn the fuel material (coal, or wood, or natural gas, or oil) in the combustion system. The waste plastic will be cracked into oil gas in the pyrolysis reactor. The oil gas will enter into the three stages of condensers and become liquid fuel oil, that's plastic pyrolysis oil.

After finishing oil producing, the temperature of pyrolysis reactor will come down, at the same time; carbon black will be discharged automatically.

Lastly, when the temperature falls to 50 degree Celsius, worker could open the door of the pyrolysis reactor, and then can start another batch.

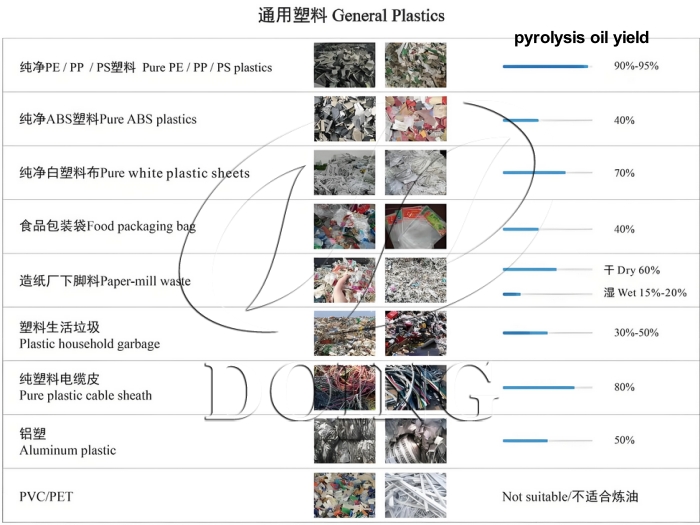

Approx oil yield of different raw materials:

waste plastic disposal pyrolysis machineFuel oil from waste plastic pyrolysis disposal machine

PE95%
PP90%
PS90%
ABS40%
Leftovers of paperWet 15-20%, dry 60%
House garbage35-50%
Plastic cable80%
Plastic bag50%
Submarine cable75%
Rubber cable35%
Sole30%
Big tires45-50%
Small tires35-40%
PVCNot suitable
PETNot suitable

Advanced design waste plastic disposal machine technical data

Technical parameter of advanced design waste plastic disposal machine
No.ItemsContents
1Equipment typeDY-1-6DY-1-8DY-1-15
2Raw materialWaste tiresWaste tiresWaste tires
3Structural formHorizontal rotationHorizontal rotationHorizontal rotation
424-hour Capacity6 ton8 ton10 ton
5Oil yield2.7-3.3ton3.6 -4.4ton4.5 -5.5ton
6Operating pressureNormalNormalNormal
7Material of pyrolysis ReactorQ245RQ245RQ245R
8Thickness of pyrolysis Reactor16mm16mm16mm
9Rotate speed of pyrolysis Reactor0.4turn/minute0.4turn/minute0.4turn/minute
10Total power19KW19KW19KW
11Mode of coolingWater coolingWater coolingWater cooling
12Cooling area of condenser100sqm100sqm100sqm
13Kind of transmissionInternal gear driveInternal gear driveInternal gear drive
14Noise dB(A)≤85≤85≤85
15Size of Reactor(D×L)2200×60002200×66002600×6600
16Working formIntermittent operationIntermittent operationIntermittent operation
17Delivery time20days20days20days
18Weight27T30T35T



Prepared by customer about advanced design waste plastic disposal machine
No.ItemConsumption
1Coal(for choice)500kg/day
2Wood(for choice)800kg/day
3Natural gas(for choice)100-150kg/day
4Oil(for choice)300-350kg/day
5Electricity244kwh/day
6Water(recycled)60㎥ /month
7Total power19kw
8Land area35m*15m



Advanced design waste plastic disposal machine final product application

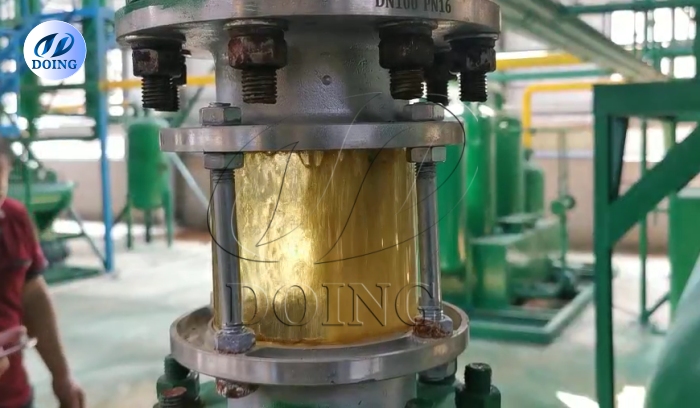

  • Fuel oil

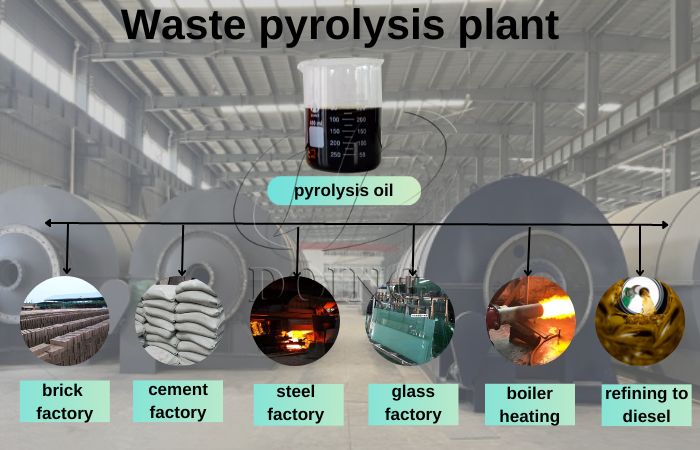

plastic pyrolysis fuel oil applicationWaste plastic pyrolysis fuel oil application

This oil product is a kind of crude fuel oil, which can be used for industrial heating used in any fuel needed industrial factories, such as cement plant, steel mill, glass factory, brick factory, boiler used factory, etc. Or can be refined to diesel, directly used in diesel burners, generators, heavy trucks, agricultural machinery, and mix with normal diesel used for cars.

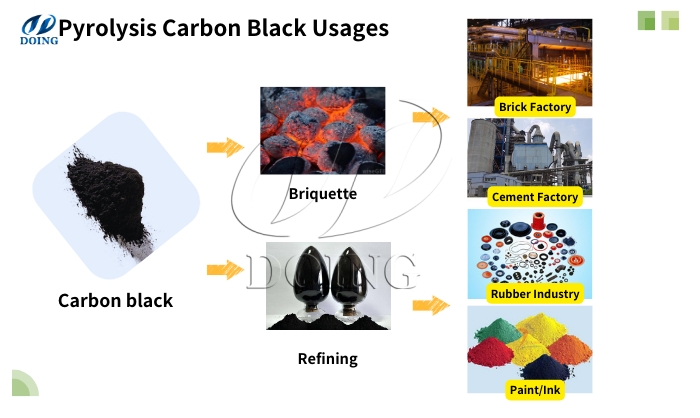

  • Carbon black

plastic disposal pyrolysis machinePlastic pyrolysis carbon black application

Carbon black produced from this system is crude powdery material, which can be directly sold to cement factory mix with cement. Or made into briquettes used for heating, just like coal. Or grinded into fine powder used for making paint and printing ink.
