Continuous waste tyre pyrolysis machine

Our continuous automatic waste tyre pyrolysis machine can convert waste tyre into high grade diesel fuel. Waste tyre are long chain polymers containing more than 50000 carbon atoms attached to each other in a cross linked or straight chain.During tyre recycling pyrolysis plant , this long chain is broken down into smaller chain. The continuous automatic waste tyre pyrolysis machine turns waste materials into gases and liquids. The end products can be used in any standard diesel engine or generator with little or no modifications.

Ms. Bonnie Zhao
+86-371-5677 1821
+86 158 9380 0169
Skype:bonniezhao2
oilmachine@doinggroup.com

Chat Online Leave A Message

Feature of Continuous waste tyre pyrolysis machine

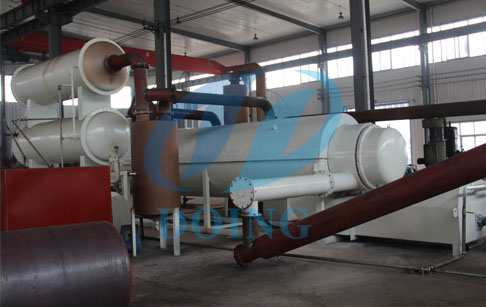

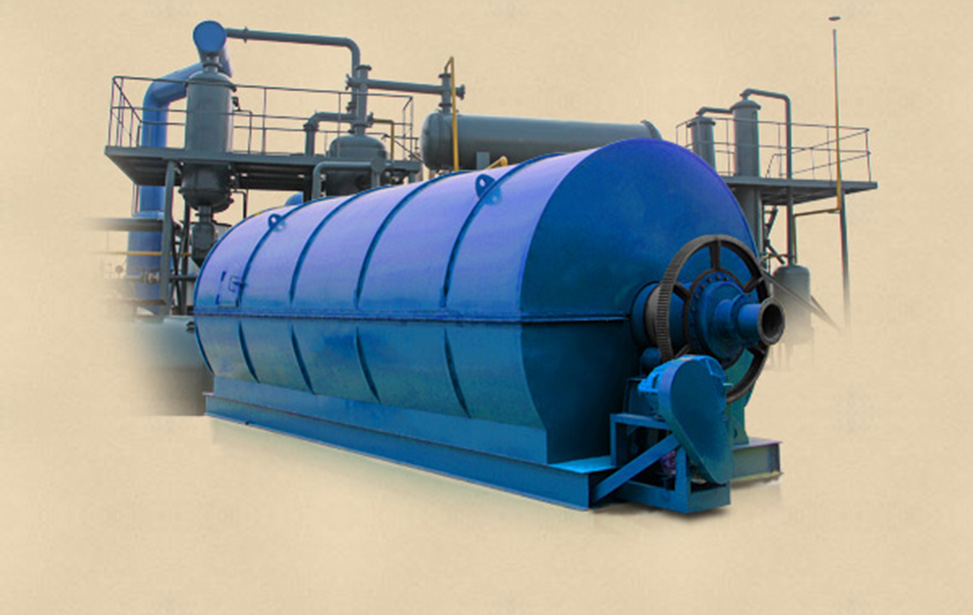

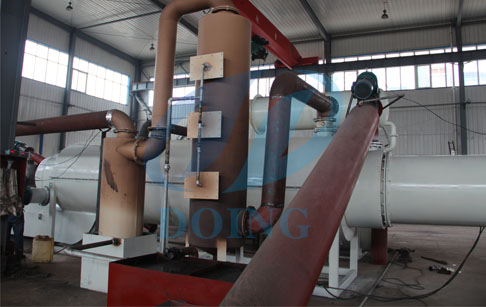

Continuous waste tyre pyrolysis machine

Technical Data

Technical Data of Continuous waste tyre pyrolysis machine

Technical parameter of continuous waste tyre pyrolysis machine
No.	Items	Contents
1	Equipment type	DY-1-6	DY-1-8	DY-1-10
2	Raw material	Waste tyre	Waste tyre	Waste tyre
3	Structural form	Horizontal rotation	Horizontal rotation	Horizontal rotation
4	24-hour Capacity	6 ton	8 ton	10 ton
5	Oil yield	2.7-3.3ton	3.6 -4.4ton	4.5 -5.5ton
6	Operating pressure	Normal	Normal	Normal
7	Material of pyrolysis Reactor	Q245R	Q245R	Q245R
8	Thickness of pyrolysis Reactor	16mm	16mm	16mm
9	Rotate speed of pyrolysis Reactor	0.4turn/minute	0.4turn/minute	0.4turn/minute
10	Total power	19KW	19KW	19KW
11	Mode of cooling	Water cooling	Water cooling	Water cooling
12	Cooling area of condenser	100sqm	100sqm	100sqm
13	Kind of transmission	Internal gear drive	Internal gear drive	Internal gear drive
14	Noise dB(A)	≤85	≤85	≤85
15	Size of Reactor(D×L)	2200×6000	2200×6600	2600×6600
16	Working form	Intermittent operation	Intermittent operation	Intermittent operation
17	Delivery time	20days	20days	20days
18	Weight	27T	30T	35T

Prepared by customer about continuous waste tyre pyrolysis machine
No.	Item	Consumption
1	Coal(for choice)	500kg/day
2	Wood(for choice)	800kg/day
3	Natural gas(for choice)	100-150kg/day
4	Oil(for choice)	300-350kg/day
5	Electricity	244kwh/day
6	Water(recycled)	60㎥ /month
7	Total power	19kw
8	Land area	35m*15m

Application

Application of Continuous waste tyre pyrolysis machine final product
waste tyre pyrolysis plant

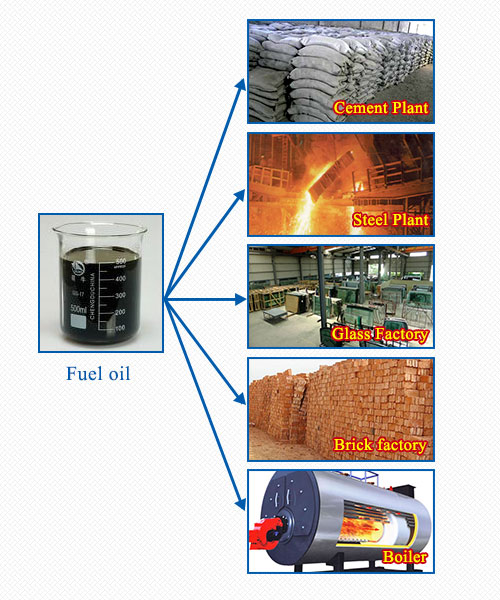

1.the usage of final production-----Fueloil
Fuel oil from waste tyre are used in below industries
A.power plant factory
B.glass factory
C.cement factory
D.ceramic factory
E.aluminum factory
F.boiler factory
G.central heating factory
H.painting factory

The usage of final production-----Carbon black
Carbon black from waste tyre are used in below industries
A.electric cable jacketing
B.conveyor ban
C.hose and doormat
D.black nylon bag
E.rubber additive
F.automatic spare parts
G.heat isolation
H.black colorant in rubber materials
