Continuous Pyrolysis Plant

DOING Continuous Waste Plastic To Oil Machine

Doing continuous waste plastic to oil machine adopts high temperature pyrolysis technology to realize the process from waste plastic to oil, which is a high-temperature thermal decomposition of materials in the absence of oxygen. During the operation of Doing continuous waste plastic to oil machine, all operations are automated.

With many market surveys, our r&d team developed newly designed DOING continuous waste plastic to oil machine. DOING continuous waste plastic to oil machine adopts high temperature pyrolysis technology to realize the process from waste plastic to oil, which is a high-temperature thermal decomposition of materials in the absence of oxygen, which can break chemical bonds in molecules, then turn macromolecular into smaller molecule. During the operation of DOING continuous waste plastic to oil machine, all operations are automated. The following are some features of DOING continuous waste plastic to oil machine.

The Workflow of DOING continuous waste plastic to oil machine

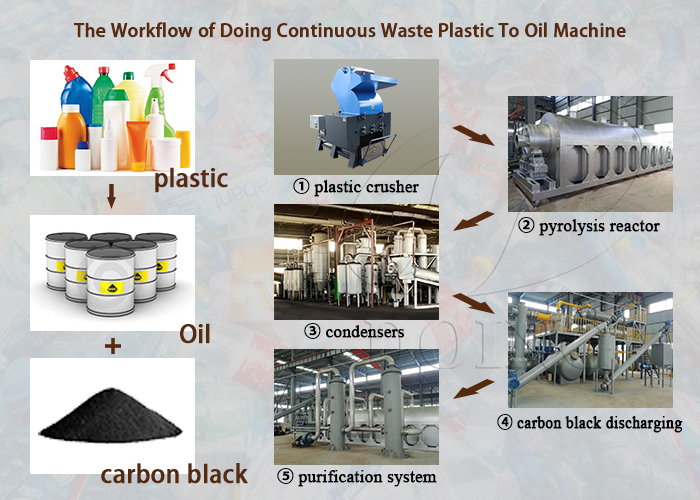

plastic pyrolysis to oil machineThe workflow of DOING continuous waste plastic to oil machine

1. The plastic need shredding into pieces by plastic crusher, and then fed into the pyrolysis reactor through the sealed conveyor controlled by the fully automatic PLC system.

2. Heating the pyrolysis reactor. In general, the pyrolysis oil gas will generate when the pyrolysis reactor reach a certain temperature. Usually at 200~300℃, the most oil gas is produced.

3. After cooled through condensers and separated through oil-gas separator and oil-water separator, the oil gas is turned into liquid fuel oil and little combustible gas, The liquid fuel oil will be collected into the oil tanks directly. The combustible gas can be recycled after scrubbing and will be the main fuel to heat pyrolysis reactor.

4. The solid output—carbon black—will be automatically transferred to the carbon black production system to be collected in the container, or you can obtain the industrial grade carbon black after a serious of processes like milling etc. to get high-value chemical material.

5.The flue gas produced from combustion furnace will be purified by purification system to meet the environmental protection standard then discharged. So there is no secondary pollution to our environment.

The Unique advantages of DOING continuous waste plastic to oil machine

1. Fully automatic

DOING continuous waste plastic to oil machine is controled by the PLC system with automatic feeding and discharge system, which only need 1-2 worker for operating the PLC system, saving manpower for our customers. And Its automatic operation is more accurate to make fully pyrolysis of waste plastic, thus to get high oil output.

2. Continuous operation

The pyrolysis of DOING continuous waste plastic to oil machine adopts internal rotating method, which can achieve the real sense of continuous process.

3. Longer working life

The service life of DOING continuous waste plastic to oil machine will be extended to 6~8 years. During the continuous pyrolysis process, the reactor is heated by indirect hot air heating, which will not damage reactor so much, thus to keep long usage life of the reactor.

4. Safety

Our pyrolysis reactor adopts auto welding technology to guarantee the quality of welding seam and avoid cracking.

Then we use x-ray detection to ensure all the parts of the machine for welding seam. We also use vacuum system to prevent oil gas back to reactor causing accident. The machine is also equipped with safety devices, such as alarm for over temperature and pressure, auto pressure releasing system, extra gas recycling system and fire fighting device, etc. in case of danger.

5. Environment friendly

There is well sealed conveyor and every other junction part preventing gas leak, dust and bad smell. And dedusting system purifies the flue gas and dust from combustion furnace having no secondary pollution while processing waste plastic.

 DOING continuous waste plastic to oil machine technical data

No. Item Specifications
1 Model DY-C-10 DY-C-20 DY-C-30 DY-C-50 DY-C-60 DY-C-80 DY-C-100
2 Cpacity 10T/D 20T/D 30T/D 50T/D 60T/D 80T/D 100T/D
3 Power 35Kw 50Kw 65Kw 80Kw 90Kw 105Kw 120Kw
4 Working type Continuous
5 Reactor deisgn Mutiple reactors (The quantity and size depends on the raw material condition)
6 Rotating Internal rotating
7 Cooling system Recycled waster cooling
8 Reactor material Q245R/Q345R boiler plate
9 Heating method Indireact hot air heating
10 Heating fuel Fuel oil/gas
11 Feedstock Waste tire/plastic/rubber
12 Output Fuel oil, carbon black



The Final Products of DOING continuous Waste Plastic To Oil Machine

The final products consists mainly of plastic pyrolysis oil, carbon black and combustible gas.

1. Plastic pyrolysis oil

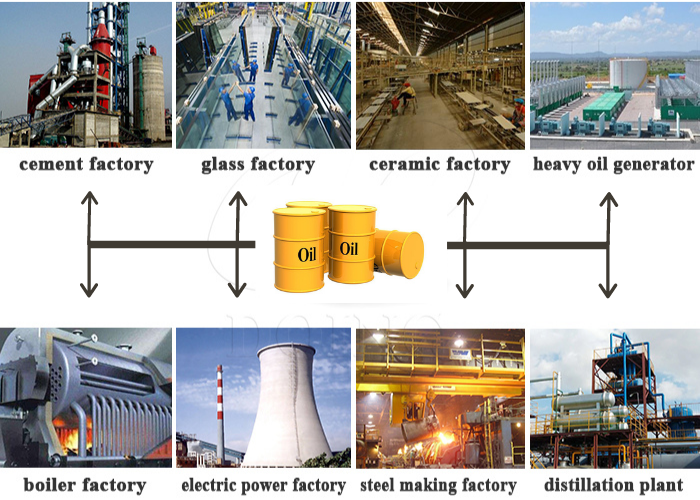

plastic pyrolysis machineThe application of plastic pyrolysis oil

The oil yield is high 90% when the waste plastic is pure and dry. The plastic pyrolysis oil can be directly sold, as fuel for industrial enterprises such as cement factory, glass factory, ceramic factory, electric power factory, steel making factory, boiler factory or for heavy oil generators; It can also be refined by pyrolysis oil distillation machine to get diesel fuel with higher economic value.

2. Carbon black

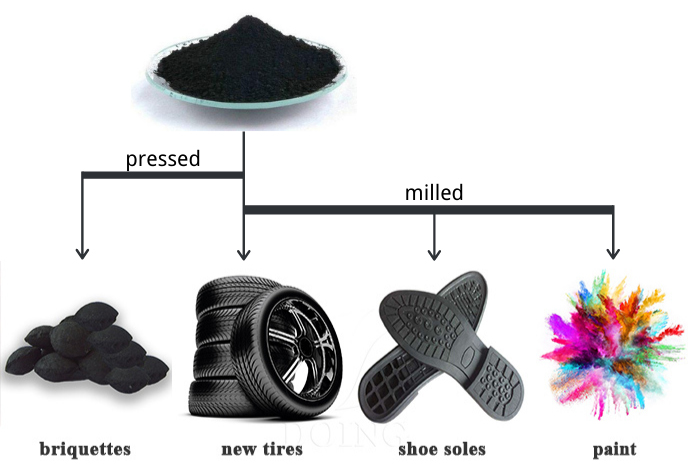

pyrolysis machineThe application of carbon black

It can be directly sold, or made into briquettes, used for heating and burning, or milled into powder, widely used in new tires, shoe soles, or paint.

3. Combustible gas

It can be recycled to the combustion furnace to heat the pyrolysis reactor to save fuel such as coal, wood, natural gas, etc. for customers.

The Brief Introduction of Waste Plastic To Oil Industry

Many customers asked whether the waste plastic to oil machine is feasible. The answer is definitely “Yes”, what’s more, DOING continuous waste plastic to oil machine has a very good prospect.

plastic to oil machineWaste plastic

It is said that the world generates 320 million metric tons of waste plastic each year. Even in a ”best-case” scenario, an 80 percent reduction in plastic pollution by 2040, it is estimated that 710 million metric tons of plastic will still be polluting the environment by then. So the recycling of waste plastics is highly valued by various countries. DOING continuous waste plastic to oil machine is a good solution to this problem. It converts plastic into renewable energy, from which good ecological benefits can be obtained. And the whole process is safe and environmentally friendly. Why not join it?

DOING company has engaged in waste plastic to oil machines for more than ten years. Our DOING company is a manufacturer that integrates R&D, design, manufacturing, marketing, installation, commissioning and after-sales service. Our newly designed continuous waste plastic to oil machine is safe, environmentally friendly, highly efficient and highly productive. Considering that we also provide perfect after-sales service, you can rest assured when you buy our products.

We DOING company has more than 10 years of experience in the waste-to-energy industry and has successfully launched projects in more than 60 countries. If you have any questions about the pyrolysis industry, please feel free to contact us. Our professional project managers will answer your questions.
