Waste Plastic Pyrolysis Plant

Conversion of waste plastic to fuel oil

More than 500 billion pounds of new plastics are produced each year, of which about 33% are single use and thrown away.We need to stop using plastic to contaminate our oceans before too late and start collecting all the plastics that are suitable for this new, fairly simple technology that is now available. DoingGroup is a manufacturer with for this technology.

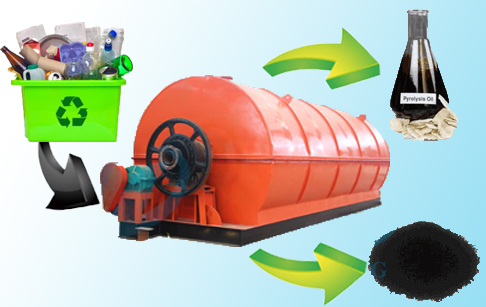

conversion of waste plastic to fuel oil
Conversion of waste plastic to fuel oil



More than 500 billion pounds of new plastics are produced each year, of which about 33% are single use and thrown away. Since such a small amount of plastic is recycled, we need to reuse plastic waste as an underutilized resource instead of using it in landfills.

If all plastic waste enters the landfill, it will certainly be mined in the future, but currently all plastic waste will not enter the landfill. The United Nations estimates that four-fifths of the world’s oceans’ accumulated waste is plastic accounts. We need to stop using plastic to contaminate our oceans before too late and start collecting all the plastics that are suitable for this new, fairly simple technology that is now available. DoingGroup is a manufacturer for this technology. This technology is mainly  using pyrolysis chemical reactions to conversion of waste plastic to fuel oil, carbon black, steel wire and flammable gas.

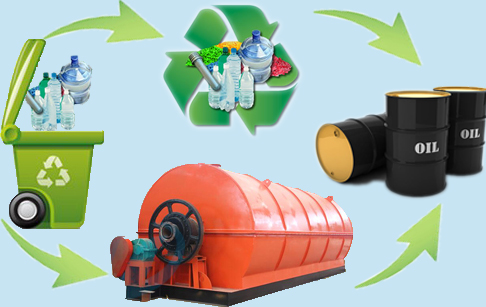

 Conversion of plastic waste to fuel oil
Conversion of waste plastic to fuel oil working process



The specific process for the conversion of waste plastic to fuel oil is as follows:

1. The collected plastic waste is fed into the reactor through an automatic feeder and heat-treated.
2. When the temperature rises to about 200 degrees, oil gas would come out from the machine.
3. After the initial buffering of the oil and gas in the buffer tank, the oil and gas enters the condensing system and is liquefied into heavy oil and falls into the oil tank.
4. The carbon black produced during the combustion process is automatically discharged through the underground sealing channel when the reactor is cooled to below 40 degrees to avoid secondary pollution to the environment.

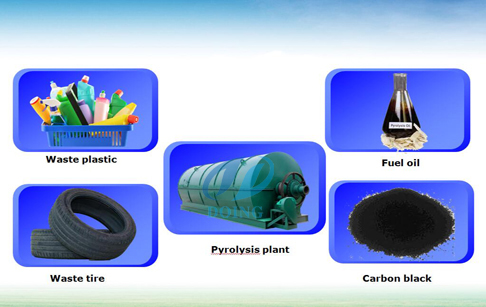

 pyrolysis plant final products
Waste plastic pyrolysis plant final produsts



By convertion waste plastic into fuel oil, the final fuel yield is 45-50%, the carbon black yield is 30%, the steel wire yield is 15%(If the raw material is waste tyre), and there are about 5-10% combustible gas.

The conversion of waste plastic to fuel oil was an incredible thing in the past, but now technology is very mature, and the conversion of waste plastic into fuel oil and other reusable materials is a very meaningful thing to the environment and we human being.


Used of   technical conversion of waste plastic to fuel oil

Technical parameter of conversion of waste plastic to fuel oil
No. Items Contents
1 Equipment type DY-1-6 DY-1-8 DY-1-10
2 Raw material Waste plastic Waste plastic Waste plastic
3 Structural form Horizontal rotation Horizontal rotation Horizontal rotation
4 24-hour Capacity 6 ton 8 ton 10 ton
5 Oil yield 2.7-3.3ton 3.6 -4.4ton 4.5 -5.5ton
6 Operating pressure Normal Normal Normal
7 Material of pyrolysis Reactor Q245R Q245R Q245R
8 Thickness of pyrolysis Reactor 16mm 16mm 16mm
9 Rotate speed of pyrolysis Reactor 0.4turn/minute 0.4turn/minute 0.4turn/minute
10 Total power 19KW 19KW 19KW
11 Mode of cooling Water cooling Water cooling Water cooling
12 Cooling area of condenser 100sqm 100sqm 100sqm
13 Kind of transmission Internal gear drive Internal gear drive Internal gear drive
14 Noise dB(A) ≤85 ≤85 ≤85
15 Size of Reactor(D×L) 2200×6000 2200×6600 2600×6600
16 Working form Intermittent operation Intermittent operation Intermittent operation
17 Delivery time 20days 20days 20days
18 Weight 27T 30T 35T

Prepared by customer about conversion of waste plastic to fuel oil
No. Item Consumption
1 Coal(for choice) 500kg/day
2 Wood(for choice) 800kg/day
3 Natural gas(for choice) 100-150kg/day
4 Oil(for choice) 300-350kg/day
5 Electricity 244kwh/day
6 Water(recycled) 60㎥ /month
7 Total power 19kw
8 Land area 35m*15m


The product obtained  from the conversion of plastic waste into fuel oil has a very wide range of uses in life, and its specific uses are as follows:

pyrolysis plant fuel oil usage
Fuel oil usage


1. Fuel oil: Fuel oil is widely used in ship boiler fuels, furnace fuels, metallurgical furnaces, and other industrial furnace fuels. According to use, fuel oil can be divided into marine fuel oil, furnace fuel oil and other fuel oils. According to statistics from the National Bureau of Statistics, China's fuel oil consumption is mainly concentrated in power generation, transportation, metallurgy, chemical industry, light industry and other industries.

pyrolysis plant carbon black usage
Carbon black usage



2. Carbon black: It is mainly used  as heating fuel or additives for paint or rubber products production after refining. 3. Steel wire: It is mainly sold to the waste recycling station, or the steel mill for re-melting and making new steel products again.
4. Combustible gas: It will be recycled by the equipment and used again for the heating fuel in the reactor, which is energy-saving and environmentally friendly.
