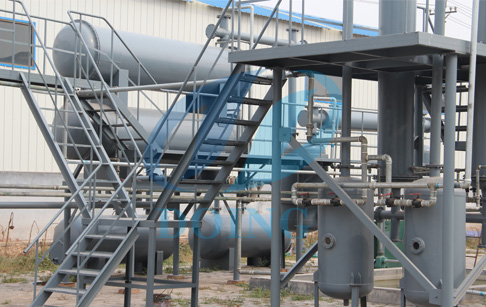

For continuous waste tire rubber plastics pyrolysis plant, its raw material can be waste tires, plastic and other rubber. If your raw material is waste tire, you can get fuel oil, carbon black and steel wire after pyrolysis processing.
| Technical parameter of continuous waste tire rubber plastics pyrolysis plant | ||||
| No. | Items | Contents | ||
| 1 | Equipment type | DY-1-6 | DY-1-8 | DY-1-10 |
| 2 | Raw material | Waste tire/rubber/plastic | Waste tire/rubber/plastic | Waste tire/rubber/plastic |
| 3 | Structural form | Horizontal rotation | Horizontal rotation | Horizontal rotation |
| 4 | 24-hour Capacity | 10ton | 20ton | 30 ton |
| 5 | Oil yield | 2.7-3.3ton | 3.6 -4.4ton | 4.5 -5.5ton |
| 6 | Operating pressure | Normal | Normal | Normal |
| 7 | Material of pyrolysis Reactor | Q245R | Q245R | Q245R |
| 8 | Thickness of pyrolysis Reactor | 16mm | 16mm | 16mm |
| 9 | Rotate speed of pyrolysis Reactor | 0.4turn/minute | 0.4turn/minute | 0.4turn/minute |
| 10 | Total power | 19KW | 19KW | 19KW |
| 11 | Mode of cooling | Water cooling | Water cooling | Water cooling |
| 12 | Cooling area of condenser | 100sqm | 100sqm | 100sqm |
| 13 | Kind of transmission | Internal gear drive | Internal gear drive | Internal gear drive |
| 14 | Noise dB(A) | ≤85 | ≤85 | ≤85 |
| 15 | Size of Reactor(D×L) | 2200×6000 | 2200×6600 | 2600×6600 |
| 16 | Working form | Intermittent operation | Intermittent operation | Intermittent operation |
| 17 | Delivery time | 20days | 20days | 20days |
| 18 | Weight | 27T | 30T | 35T |
| Prepared by customer about continous waste tire/rubber/plastics pyrolysis plant | |||
| No. | Item | Consumption | |
| 1 | Coal(for choice) | 500kg/day | |
| 2 | Wood(for choice) | 800kg/day | |
| 3 | Natural gas(for choice) | 100-150kg/day | |
| 4 | Oil(for choice) | 300-350kg/day | |
| 5 | Electricity | 244kwh/day | |
| 6 | Water(recycled) | 60㎥ /month | |
| 7 | Total power | 19kw | |
| 8 | Land area | 35m*15m | |
