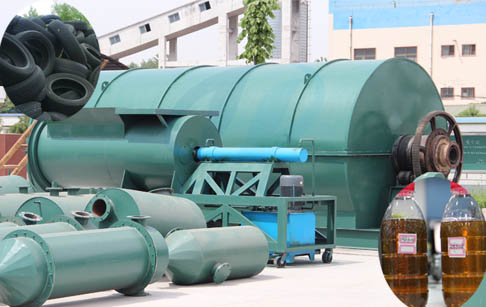

Waste tire to oil recycling machine

Henan Doing produced waste tire to oil recycling machine adopts pyrolysis technology that can convert waste tire to fuel oil ,carbon black and steel wire.

12-10-2016 14:27:22

+86-135-2669-2320

oilmachine@wastetireoil.com

Send Message Chat online

Features
Technical Data
Application

Waste tyre

The development of the society provides a good environment for the car industry, and the tire industry also benefits a lot. Usually the raw material of the tyre is natural rubber, which has a long service life and a strong wear resistance. At the same time, it is also a problem to deal with the waste tyre. The number of the waste tire keeps increasing, but there is no practical method to handle this problem. Burning the waste tire will produce toxic gas and smog, which are harmful to the human being and the environment. Just leave the waste tire in a empty land is also dangerous. They will cause fire easily, in addition, we all know that the land resources is precious, and the increasing waste tyres will cause the waste of land if we still use this method.
Henan Doing produced waste tire to oil recycling machine adopts pyrolysis technology that can convert waste tire to fuel oil ,carbon black and steel wire.

Waste tire to oil recycling machine

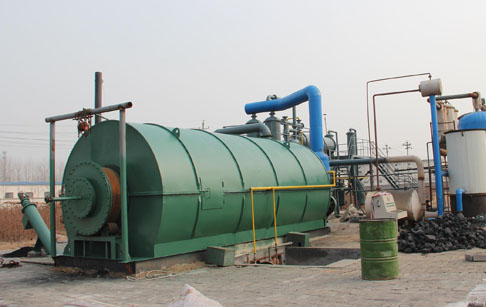

Waste tire to oil recycling machine working process

Waste tire to oil recycling machine working process

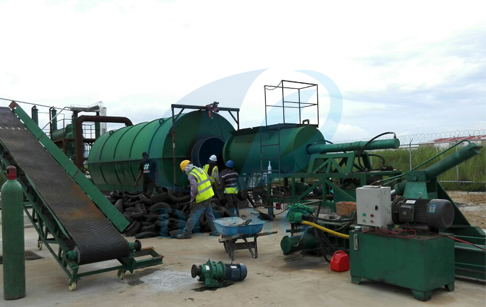

1. Put the waste tires into the reactor.

2. Heat the reactor by using fuel materials, such as coal, charcoal, fuel gas, wood etc. The reactor will be slowly heated, when the temperature reaches around 250 degree, the oil gas will be produced.

3. A part of oil gas will go to the condensing system to form liquid oil. We adopt new-type tubular condenser which can improve the oil yield efficiency. The gas which can not be liquefied under normal pressure will go back to combustion system. It can be used as fuel material to heat the reactor, which will save energy for the whole working process.

4. After finishing oil production, the temperature of reactor will be down. At the same time, we can get carbon black and steel wire.

5. Lastly, the smoke produced from reactor can achieve national emission standard after being processed by the dedusting system.

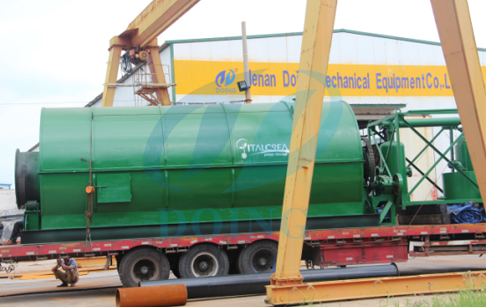

Waste tire to oil recycling machine advantage

Waste tire to oil recycling machine

Firstly, zero emission. In the dedusting system, three steps are used to dedust the hot smoke from reactor, more than 95% of the dust would be removed. The released gas is pollution-free and can be discharged in the air directly.

Secondly, high efficiency. We adopt new type of condensers which can further ensure and improve the oil yield efficiency. The catalyst is made from 24 chemicals, which not only reduces sulfur content and density of oil, but also improves its flavor and color.

Features
Technical Data
Application

Waste tires to oil recycling machine technical data

Technical parameter of waste tire to oil recycling machine
No.	Items	Contents
1	Equipment type	DY-1-6	DY-1-8	DY-1-10
2	Raw material	Waste tires	Waste tires	Waste tires
3	Structural form	Horizontal rotation	Horizontal rotation	Horizontal rotation
4	24-hour Capacity	6 ton	8 ton	10 ton
5	Oil yield	2.7-3.3ton	3.6 -4.4ton	4.5 -5.5ton
6	Operating pressure	Normal	Normal	Normal
7	Material of pyrolysis Reactor	Q245R	Q245R	Q245R
8	Thickness of pyrolysis Reactor	16mm	16mm	16mm
9	Rotate speed of pyrolysis Reactor	0.4turn/minute	0.4turn/minute	0.4turn/minute
10	Total power	19KW	19KW	19KW
11	Mode of cooling	Water cooling	Water cooling	Water cooling
12	Cooling area of condenser	100sqm	100sqm	100sqm
13	Kind of transmission	Internal gear drive	Internal gear drive	Internal gear drive
14	Noise dB(A)	≤85	≤85	≤85
15	Size of Reactor(D×L)	2200×6000	2200×6600	2600×6600
16	Working form	Intermittent operation	Intermittent operation	Intermittent operation
17	Delivery time	20days	20days	20days
18	Weight	27T	30T	35T

Prepared by customer about waste tires to oil recycling machine
No.	Item	Consumption
1	Coal(for choice)	500kg/day
2	Wood(for choice)	800kg/day
3	Natural gas(for choice)	100-150kg/day
4	Oil(for choice)	300-350kg/day
5	Electricity	244kwh/day
6	Water(recycled)	60㎥ /month
7	Total power	19kw
8	Land area	35m*15m

Features
Technical Data
Application

Waste tire to oil recycling machine final product application

waste tire to oil recycling machine

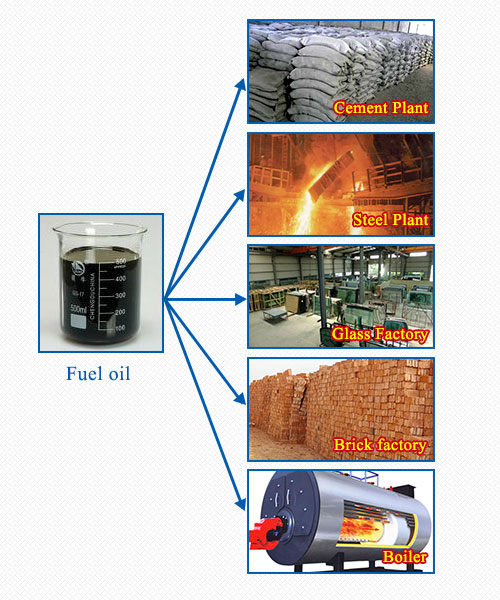

Fuel Oil (45% to 52%)
The main application of oil products produced by waste tire to oil reyccling machine is the fuel oil that is wide used for industrial and commercial purposes. 45% to 52% oil of the amount of recycled scrap tires can be carried with licensed tanker trucks.

Steel Wire (12% to 15%)
The third product of waste tire to oil recycling machine is steel wire, the quantity of steel wire is about 12% to 15% according to tyre quality. It is very easy to sell steel wire scrape in local market.

Carbon Black Powder (30%)

Waste tire to oil recycling machine

The second product of waste tire to oil recycling machine is carbon black. The quantity of carbon black is about 30% to 35% according to tyre quality. The use of carbon black is as a chemical strengthener in rubber and coloring agent in pigment industries. This carbon black price is very competitive compared to petroleum carbon black, so our pyrolysis carbon black is good option in stead of petroleum carbon black.
Gases (About 10%)
We get about 10% pyrolytic gases during pyrolysis process. The main component of this gases are methane (CH4), so we can not condense and store this gases. We use this gases to heat the reactor and we can use exceed gases for other heating application.
