Waste Tire Pyrolysis Plant

No Pollution Waste Tyre Pyrolysis Plant

No pollution waste tire pyrolysis plant is a kind of waste recycling machine, which is used to convert waste tires into fuel oil, carbon black and steel wires. Doing Group has two types of no pollution waste tire pyrolysis plant, one is batch waste tire pyrolysis plant, the other is continuous waste tire pyrolysis plant.

No pollution waste tire pyrolysis plant is a kind of waste recycling machine, which is used to convert waste tires into fuel oil, carbon black and steel wires. Doing Group has two types of no pollution waste tire pyrolysis plant, one is batch waste tire pyrolysis plant, which is cost-effective and easy operation, the other is continuous waste tire pyrolysis plant, which is fully automatic operation, labor saving higher efficient, and higher oil yield. Both of them are environmentally friendly and available to choose with various different capacities according to your requirement.

fully automatic waste tyre pyrolysis plantNo pollution waste tyre pyrolysis plant

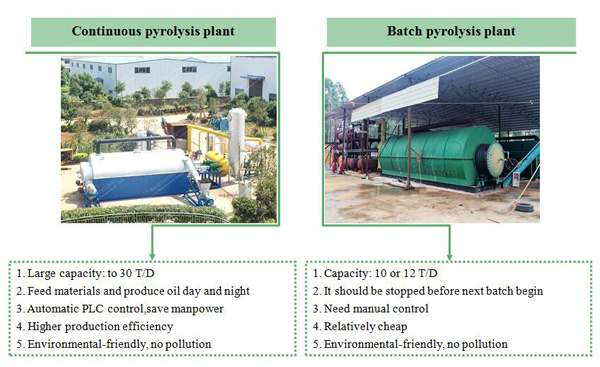

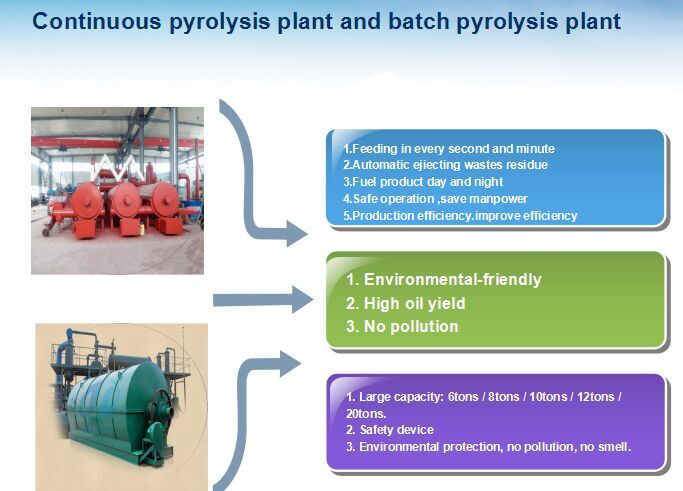

Main differences between the batch waste tyre pyrolysis plant and fully automatic waste tyre pyrolysis plant:

(1) For the continuous system, the feeding of the raw materials and discharging of slag are both automatic, while for the batching system, the two processes are both manual.

(2) For the continuous system, the feeding hole is very small, so it needs shredder to cut the tyres into small pieces (30-50 mm), while the batching system does not need the pretreatment device.

(3) The continuous system can work continuously without a stop, while for the batching system, the reactor must be cooled before the second batch.

continuous waste tyre pyrolysis plantDifferences batch and continuous pyrolysis plant

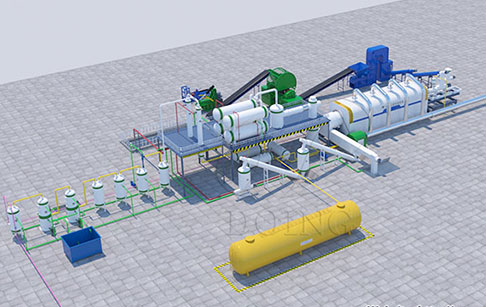

The advantages of no pollution fully automatic waste tyre pyrolysis plant:

• 1. High automation with low labour cost

No pollution fully automatic waste tyre pyrolysis plantis controled by PLC system with automatic feeding and discharge system, which only need 1-2 worker for operating the PLC or computer is ok.

• 2. High oil output

No pollution fully automatic waste tyre pyrolysis plant adopts mutiple reactor design which can make fully pyrolysis of waste tires, thus to get high oil output.

• 3. Big capacity

Also due to continuous feeding and discharge system, and unique mutiple reactor design, our fully automatic continuous waste tyre pyrolysis plant can process at least 10 tons waste tires per day, up to 100T/D.

• 4. Internal rotating for conitnuous operation

For external rotating system, you have to change the sealing material every three days, thus cannot achieve the real sense of continuous process. But our continuous waste tyre pyrolysis reactor adopts internal rotating method, which no need to worry about the sealing of the external rotating system.

• 5. Long service life

During the continuous pyrolysis process, reactor heating is by indirect hot air heating, which will not damage reactor so much, thus to keep long usage life of the reactors. And since the hard steel wire already removed from waste tires before pyrolysis processs, thus no damage for the reactor.

The technical data of no pollution fully automatic waste tyre pyrolysis plant:

Item Specifications
Model DY-C-10 DY-C-20 DY-C-30 DY-C-50 DY-C-60 DY-C-80 DY-C-100
Cpacity 10T/D 20T/D 30T/D 50T/D 60T/D 80T/D 100T/D
Power 35Kw 50Kw 65Kw 80Kw 90Kw 105Kw 120Kw
Working type Continuous
Reactor deisgn Mutiple reactors (The quantity and size depends on the raw material condition)
Rotating Internal rotating
Cooling system Recycled waster cooling
Reactor material Q245R/Q345R boiler plate
Heating method Indireact hot air heating
Heating fuel Fuel oil/gas
Feedstock Waste tire/plastic/rubber
Output Fuel oil, carbon black

The technical data of no pollution batch waste tyre pyrolysis plant:

Items Contents
Equipment type DY-1-6 DY-1-8 DY-1-10
Day Capacity 6 ton 8 ton 10 ton
Oil yield 2.7-3.3ton 3.6 -4.4ton 4.5 -5.5ton
Structural form Horizontal rotation
Operating pressure Normal
Material of pyrolysis Reactor Q245R
Thickness of pyrolysis Reactor 16mm
Rotate speed of pyrolysis Reactor 0.4turn/minute
Size of Reactor(D×L) 2200*6000-2800*6600
Total power 19KW
Mode of cooling Water cooling
Cooling area of condenser 100sqm
Kind of transmission Internal gear drive
Noise dB(A) ≤85
Weight 27T-35T
Working form Intermittent operation
Delivery time 20days
Land area 35m*15m
Labor 3-4 workers
Density of oil 0.89g/cm3
Combustion value 44.30KJ/KG

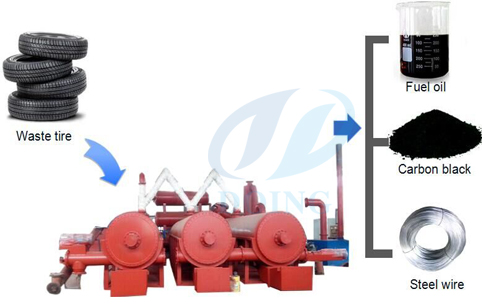

The final product and application of no pollution waste tyre pyrolysis plant:

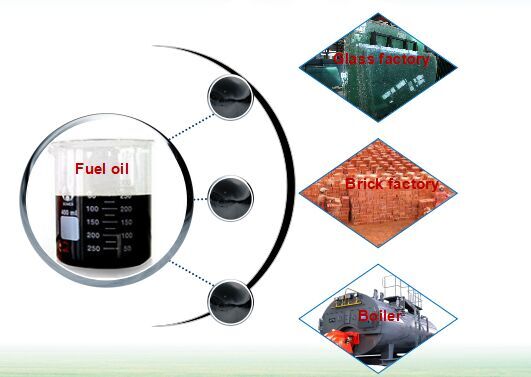

By using no pollution waste tyre pyrolysis plant, you can get tyre oil, carbon black and steel wire from waste tyres. The tyre oil can be widely used as fuel oil in industries such as steel and iron and boiler factories, ceramics, power or chemical industries or hotels, restaurants etc., or used for generators to get electricity. The carbon black can be used for construction bricks with clay or used as fuel. The steel wire can be recycled to produce new steel products. Besides, some combustible gas generated can be recycled to the reactor and act as fuel, which will save energy for the whole process.

NO Name Percentage Usage
1 Tyre fuel oil 45% 1.Can be sold directly
2.Can be as fuel
3.Can be used industrial and commercial purposes. Such as power plant factory,glass factory,cement factory,ceramic factory.
2 Carbon black 30% 1.Can be sold directly
2.Can be used electric cable jacketing,black nylon bag,rubber additive
3 Steel wire 15% 1.Can be sold directly
2.Make steel bloom by use hydraulic press-packing
4 Oil gas 10% 1.Can be as fuel burn by use gas burning system
2.Extra gas also be storage as fuel for other heating
