Waste tyre producers to diesel fuel recycling process plant

Our waste tyre producers to diesel fuel recycling process plant can convert waste tyre into high grade diesel fuel. Waste tyre are long chain polymers containing more than 50000 carbon atoms attached to each other in a cross linked or straight chain.During waste plastic pyrolysis, this long chain is broken down into smaller chain. The waste tyre producers to diesel fuel recycling process plant turns waste materials into gases and liquids. The end products can be used in any standard diesel engine or generator with little or no modifications.

The waste tyre producers to diesel fuel recycling process plant can convert waste tyre to diesel fuel and carbon black by pyrolysis technology.

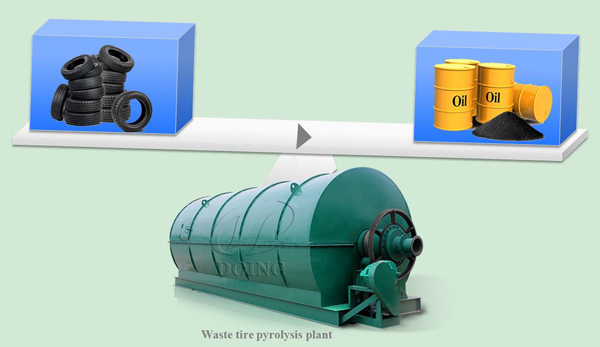

waste tyre to diesel fuelWaste tyre producers to diesel fuel recycling process plant

DOING Group is a professional waste tyre producers to diesel fuel recycling process plant manufacturer in China, supplies several types of waste tyre producers to diesel fuel recycling process plant, which adopts the most advanced technologies and raw materials with excellent quality. The waste tyre producers to diesel fuel recycling process plant mainly combines the following systems: pretreating system, feeding system, pyrolysis system, condensing system, dedusting system, drying system, water-cycling system, and slag discharging system. Waste tyre producers to diesel fuel recycling process plant has the characteristics of safety, quality of welding seam, environment protection, economical, high oil output, high working efficiency, and so on.

Waste tyre producers to diesel fuel recycling process plant can process raw material:

1.Waste tyre/tire

2.Waste rubber

3.Waste plastic

tire to diesel plantThe raw material for waste tyre producers to diesel fuel recycling process plant

Waste tyre producers to diesel fuel recycling process plant working process:

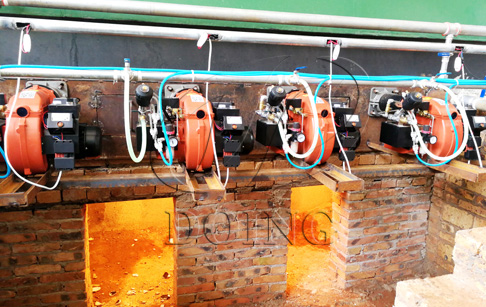

1. Put raw materials into reactor by auto-feeder, then heat the reactor with any one of the following fuel materials: coal, wood, natural gas, oil. Do not stop heating the reactor, when the temperature reaches nearly 250 degree Celsius, waste tyre will be transferred to oil gas.

2. The liquid oil will be cooled by condenser from oil gas and then collected by oil tank.

3. The exhaust gas which can not be cooled in normal pressure will be recycled to heat the reactor. In this way, you can not only saving energy, but also protecting environment. Smoke produced by processing the tyres/plastics can achieve national emission standard through dual desulfurization and dusting removal device.

4. After you get oil, the temperature will be low, at this time, carbon black will be discharged automatically.

After all these steps, you can start another batch.

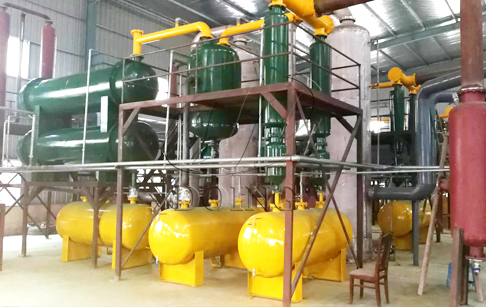

waste tyre to oil recycling plantThe process of waste tyre producers to diesel fuel recycling process plant

Our waste tyre producers to diesel fuel recycling process plantcan convert waste tyre into high grade diesel fuel. Waste tyre are long chain polymers containing more than 50000 carbon atoms attached to each other in a cross linked or straight chain.During waste plastic pyrolysis, this long chain is broken down into smaller chain. The waste tyre producers to diesel fuel recycling process plant turns waste materials into gases and liquids. The end products can be used in any standard diesel engine or generator with little or no modifications. The oil yield of waste tyre producers to diesel fuel recycling process plant:

In waste tyre producers to diesel fuel recycling process plant , the polymer waste is not burned, instead it is broken down into usable finished products like Pyrolysis Oil, Hydrocarbon Gas and Charcoal.

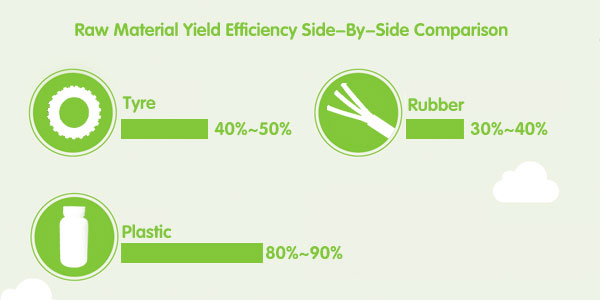

tire to oil The oil yield of different raw materials

For different types of plastics, tyres or rubbers, the oil yield is also different.

PE 95%
PP 90%
PS 90%
ABS 40%
Leftoversofpaper Wet15-20%,dry60%
Housegarbage 35-50%
Plasticcable 80%
Plasticbag 50%
Submarinecable 75%
Rubbercable 35%
Sole 30%
Bigtires 45-50%
Smalltires 35%-40%
PVC Notsuitable
PET Notsuitable

Our waste tyre producers to diesel fuel recycling process plantoffers following benefits: 1.Generates quality fuel with lower emission 2.Controls plastic land pollution 3.Recover energy from waste 4.Helps recycle carbon



Technical parameter of  Waste tyre producers to diesel fuel recycling process plant
No. Items Contents
1 Equipment type DY-1-6 DY-1-8 DY-1-10
2 Raw material Waste tyre Waste tyre Waste tyre
3 Structural form Horizontal rotation Horizontal rotation Horizontal rotation
4 24-hour Capacity 6 ton 8 ton 10 ton
5 Oil yield 2.7-3.3ton 3.6 -4.4ton 4.5 -5.5ton
6 Operating pressure Normal Normal Normal
7 Material of pyrolysis Reactor Q245R Q245R Q245R
8 Thickness of pyrolysis Reactor 16mm 16mm 16mm
9 Rotate speed of pyrolysis Reactor 0.4turn/minute 0.4turn/minute 0.4turn/minute
10 Total power 19KW 19KW 19KW
11 Mode of cooling Water cooling Water cooling Water cooling
12 Cooling area of condenser 100sqm 100sqm 100sqm
13 Kind of transmission Internal gear drive Internal gear drive Internal gear drive
14 Noise dB(A) ≤85 ≤85 ≤85
15 Size of Reactor(D×L) 2200×6000 2200×6600 2600×6600
16 Working form Intermittent operation Intermittent operation Intermittent operation
17 Delivery time 20days 20days 20days
18 Weight 27T 30T 35T

Prepared by customer about  waste tyre producers to diesel fuel recycling process plant

No. Item Consumption
1 Coal(for choice) 500kg/day
2 Wood(for choice) 800kg/day
3 Natural gas(for choice) 100-150kg/day
4 Oil(for choice) 300-350kg/day
5 Electricity 244kwh/day
6 Water(recycled) 60㎥ /month
7 Total power 19kw
8 Land area 35m*15m



The products appplication of waste tyre producers to diesel fuel recycling process plant:

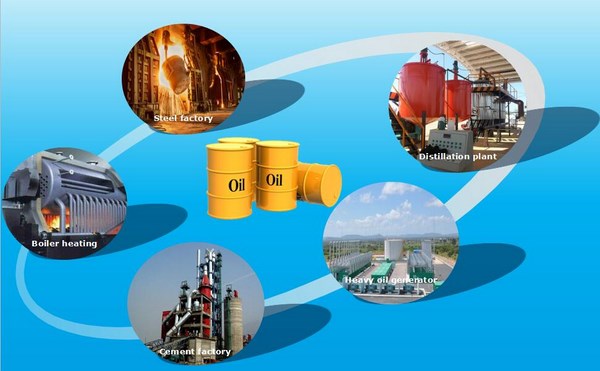

1. Fuel oil (45%-52%): Oil from waste tyre producers to diesel fuel recycling process plant can be used as industrial fuel for burning.

tires to fuel oilFuel oil application

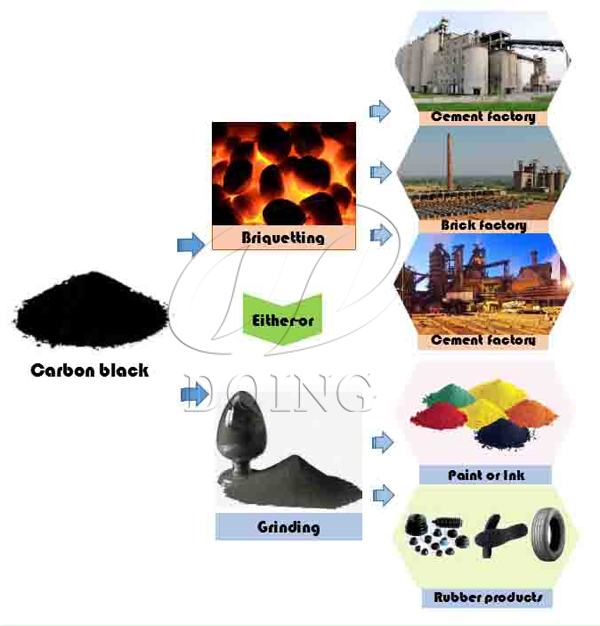

2. Carbon black (30%): First, Carbon black from waste tyre producers to diesel fuel recycling process plant is crude . You can sell it to the brick factory as internal combustion or to the factory which need it as raw materials, such as shoe, tire, cable and sealant companies. Second, could make further process, make carbon black powder into carbon black briquette, and use it for burning.

tyre to diesel fuelCarbon black application

3. Steel wire (30%): It can be sold to the iron and steel company directly.

4. Waste gas (5%): we have a special design could recycling it into fire furnace for burning.
